PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 660 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	22 kg
Synchronized tilt angle	122 degrees
Seat-height lift stroke	90 mm
Recommended user height range	190 cm
Back static load acceptance	150 kg
Caster rolling durability target	100000 cycles
Gas-lift cyclic durability target	100000 cycles
Seat impact durability target	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Breathable black flexible mesh tensioned in a curved engineered-polymer outer frame
Seat	Black woven mesh load surface over a contoured polymer seat shell with support zones
Headrest	Curved mesh headrest pad on a black polymer or powder-coated steel bracket
Lumbar zone	Padded black lumbar support panel integrated into the lower backrest
Armrests	Rigid black height-adjustable posts with flat polymer arm pads and soft contact surfaces
Lift and mechanism	Steel central gas lift, black tilt mechanism, seat slider, and under-seat control levers

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchronized recline	Backrest and seat move together through a 122-degree tilt arc with tension control for users up to 150 kg
Seat-height adjustment	Pneumatic lever raises the seat from 450 to 540 mm with 90 mm of lift travel
Seat-depth adjustment	Under-seat slider provides 50 mm of front-to-back seat-pan travel to reduce pressure behind the knees
Footrest operation	Retractable mesh leg support slides and rotates outward to a 330 mm extended platform when reclining

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation	Suited to 8-hour desk tasks where head, lumbar, arm and recline support reduce sustained posture fatigue
Manager or home office	Fits executive desks and home workstations needing a reclining chair with deployable footrest for short breaks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERMESH-FT-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERMESH-FT-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERMESH-FT-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

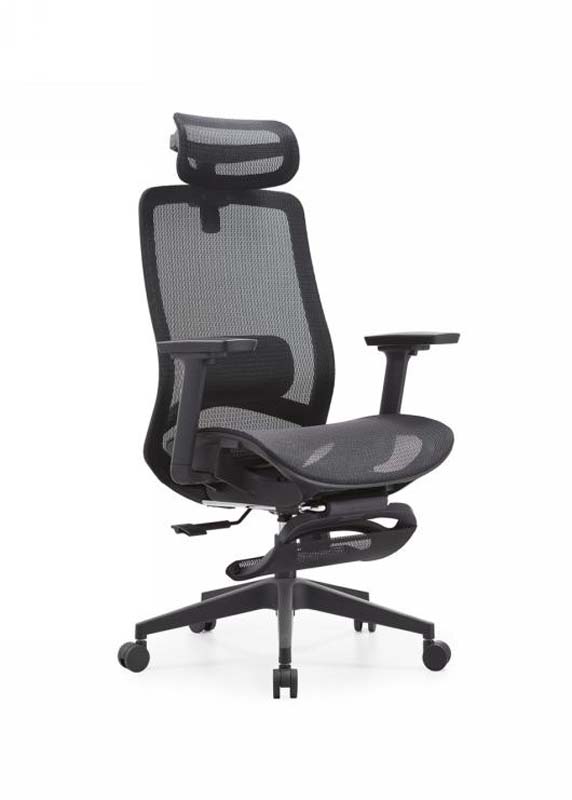

The Black Mesh Ergonomic Office Chair with Headrest and Retractable Footrest is a high-back task seating solution designed for users who want integrated support during focused work and a reclined position for short breaks. Its black engineered-polymer frame and breathable mesh surfaces give the chair a streamlined commercial appearance, while the curved backrest, contoured seat, padded lumbar panel, mesh headrest, and deployable leg support create a complete support layout from head to lower legs. The backrest uses flexible black mesh tensioned within a curved polymer outer frame. The seat combines a black woven mesh load surface with a contoured polymer shell and defined support zones, finished with a 90 mm cushion. A padded black lumbar panel is integrated into the lower backrest, and the headrest uses a curved mesh pad mounted on a black polymer or powder-coated steel bracket. Armrests are built with rigid height-adjustable posts, flat polymer pads, and soft contact surfaces. The support structure includes a steel central gas lift, black tilt mechanism, nylon five-star base, and twin-wheel casters. Functional adjustment is centered around synchronized recline, with the backrest and seat moving together through a 122-degree tilt arc and tension control suited to users up to 150 kg. Pneumatic seat-height adjustment provides 90 mm of travel, giving a seat height range from 450 to 540 mm. A 50 mm under-seat seat-depth slider lets users refine the seat-pan position to reduce pressure behind the knees. The retractable mesh footrest slides and rotates outward to form a 330 mm extended platform when the chair is used in a reclined posture. The chair is appropriate for office workstations used for full desk-based shifts, particularly where head, lumbar, arm, and recline support are priorities. It also fits manager offices, executive workstations, and home offices that need occasional rest support without adding a separate seating piece. Its clear width between armrests is 540 mm, making desk clearance worth confirming before purchase. Buyers should also plan for two cartons per set, a packaged gross weight of 23 kg, and assembly time of 40 minutes per chair. The overall dimensions are 680 x 660 x 1290 mm, and the specification supports users up to 190 cm in height and 150 kg in weight.

Black Mesh Ergonomic Office Chair with Headrest and Retractable Footrest Specifications
