PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	150 kg
Net weight	21 kg
Static seat load verification target	680 kg
Caster rolling durability target	100000 cycles
Gas lift cycling target	100000 height-adjustment cycles
Back tilt range	95 to 135 degrees
Seat foam density	45 kg/m3
Back mesh tensile verification target	1500 N
Carpet and hard-floor mobility rating	60 mm twin-wheel casters for office floors
Warranty target	5 years frame and mechanism, 2 years upholstery

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest construction	Black flexible mesh tensioned within a black molded polymer frame with visible lumbar contour
Seat cushion	Black woven fabric over molded polyurethane foam with rounded waterfall front
Headrest	Curved black mesh pad with black padded frame and adjustable connector
Armrests	Black molded polymer arm pads on height-adjustable polymer support posts
Base	Polished aluminum-alloy five-star base with five outward legs
Gas lift and casters	Chrome-plated steel center cylinder with black twin-wheel nylon casters on steel forks

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with side lever, providing a 90 mm travel range and 540 mm maximum seat height
Synchronized recline	Seat and back linkage tilts together to 135 degrees with multi-position locking via the under-seat mechanism
Headrest adjustment	Curved headrest pivots and changes height to align neck support between 1120 mm and 1290 mm
Armrest adjustment	Height-adjustable arm pads provide 70 mm vertical travel and support forearm neutral posture

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	840 x 660 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation use	Suited to 6 to 10 hour desk work in open offices, executive rooms, and home offices because it provides head, lumbar, arm, and recline support
Facility procurement fit	Suitable for users up to 150 kg where a polished-base mesh task chair with footrest is required for focused work and short reclining breaks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-FT-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-FT-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-FT-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

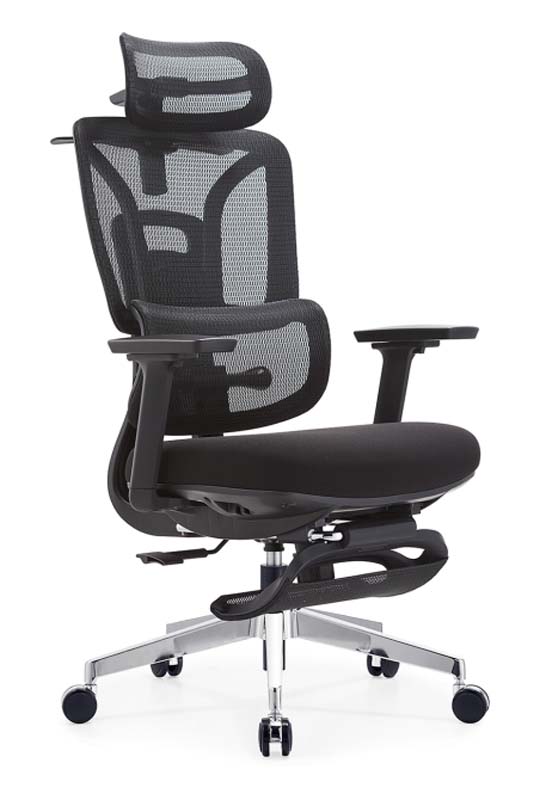

The Black Mesh Ergonomic Executive Office Chair with Headrest and Footrest, model ERG-MESH-FT-01, combines task-oriented support with a reclining executive profile. Its high-back form uses black flexible mesh tensioned within a molded polymer frame, creating a breathable back with a visible lumbar contour. A curved black mesh headrest, attached by an adjustable connector, crowns the chair and provides pivoting and height adjustment for neck alignment. The seat is upholstered in black woven fabric over molded polyurethane foam and finished with a rounded waterfall front. Black molded polymer arm pads, a polished aluminum-alloy five-star base, chrome-plated steel gas lift, and black twin-wheel nylon casters complete the coordinated appearance. The layout is designed for long workstation sessions. The 90 mm seat cushion and 70 mm backrest padding offer substantial soft surfaces, while the 240 mm lumbar support zone and 540 mm clear width between armrests help accommodate varied sitting positions. Arm pads move through 70 mm of vertical travel, supporting a neutral forearm position. Pneumatic seat-height adjustment is controlled by a side lever, with 90 mm of travel and a 540 mm maximum seat height. The synchronized mechanism links the seat and back as the chair reclines to 135 degrees, and the under-seat control allows multi-position locking. A retractable footrest supports short reclining breaks without changing the chair’s upright footprint when stored. The swivel base and casters allow easy movement around a desk. Construction balances breathable support, padded comfort, and durable structure. The mesh and polymer back provide flexibility and contouring, while the molded foam seat uses 45 kg/m3 density foam. The polished five-star base presents a professional metallic finish, and the chrome center cylinder provides height adjustment. The chair has a suggested user weight capacity of 150 kg. Design verification targets include a 680 kg static seat load, 100000 caster rolling cycles, and 100000 gas-lift height-adjustment cycles. This model is suitable for open offices, executive rooms, private workstations, and home offices where users spend 6 to 10 hours at a desk and want head, lumbar, arm, and recline support in one chair. It is also a practical option for facility purchases seeking a polished-base mesh task chair with a footrest for focused work and brief reclined rests. Procurement teams should plan for two cartons per set, a packaged gross weight of 23 kg, and a reference assembly time of 40 minutes. Delivery, access, storage, and assembly resources should be checked against the supplied carton dimensions and packaging volume before ordering.

Black Mesh Ergonomic Executive Office Chair with Headrest and Footrest Specifications
