PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	15.5 kg
Seat foam density	45 kg/m3
Seat foam indentation load deflection	65 N
Back mesh tensile verification	220 N/50 mm
Caster rolling durability	100000 cycles
Gas lift cycles	100000 height-adjustment cycles
Base static load verification	1136 kg
Seat sliding durability	100000 cycles
Warranty duration	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back support	Black flexible mesh tensioned in a molded polymer frame
Seat upholstery	Black woven fabric over shaped foam cushion
Seat cushion	80 mm molded polyurethane foam on load-bearing seat shell
Back frame	Black molded polymer outer frame with contoured shoulder profile
Armrests	Black molded polymer fixed arms with flat rectangular pads
Lumbar component	Solid black oval polymer or fabric-covered lumbar pad attached to mesh

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Swivel movement	360-degree swivel around the central gas lift
Height adjustment	100 mm pneumatic seat-height travel controlled by the under-seat lever
Back recline	Synchronous-style recline to 18 degrees with tension adjustment knob
Lumbar support	Fixed central lumbar contact pad positioned in the lower mesh back

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suited to 760 mm desks where users need swivel access, lumbar contact and rolling mobility
Home office or shared work area	Appropriate for daily computer work in compact rooms because the 650 mm footprint fits standard desk openings

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ETC-MESH-FA-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ETC-MESH-FA-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ETC-MESH-FA-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

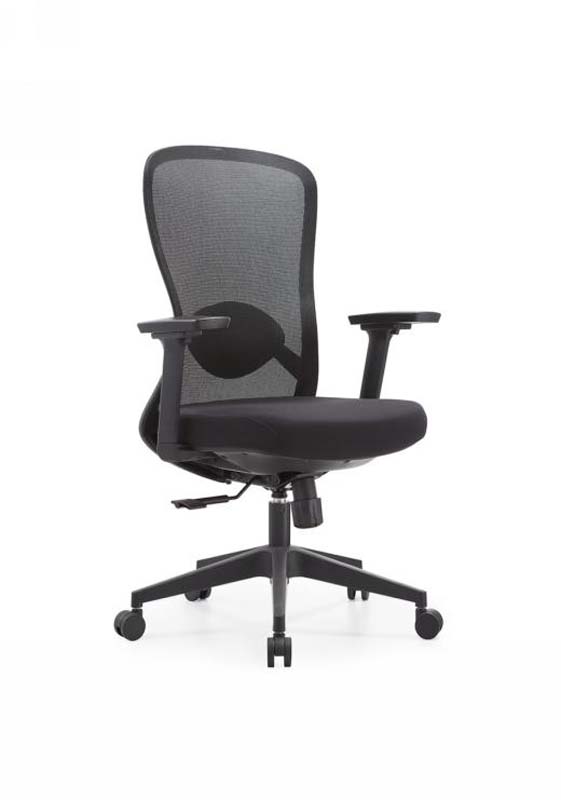

The Black Mesh Swivel Task Chair with Fixed Arms and Lumbar Pad is a functional office seating solution with a clean, commercial appearance. Its black mesh back is tensioned within a molded polymer frame shaped with a contoured shoulder profile, while the seat uses black woven fabric over a shaped foam cushion. Fixed black polymer arms with flat rectangular pads define the side layout, and a black five-star base supports the chair through a central gas lift and twin-wheel casters. The fixed central lumbar pad provides direct lower-back contact against the flexible mesh. Overall dimensions are 650 x 650 x 1120 mm, with 540 mm of clear width between the armrests. The seat cushion combines an 80 mm molded polyurethane cushion on a load-bearing seat shell with a 90 mm finished cushion thickness; the backrest padding thickness is 70 mm, and the lumbar support zone is 240 mm high. The chair is supplied as an unbranded model, ETC-MESH-FA-01, and is suited to buyers seeking a straightforward task-chair specification rather than a branded executive product. Its construction balances a breathable mesh back, padded fabric seat, rigid polymer framing, and mobile base. The seat foam density is 45 kg/m3 with a 65 N indentation load deflection, and the back mesh has a tensile verification of 220 N/50 mm. The recommended user weight capacity is 120 kg, while the chair net weight is 15.5 kg. For daily use, the chair offers 360-degree swivel movement, 100 mm of pneumatic seat-height travel through an under-seat lever, and synchronous-style back recline to 18 degrees with a tension adjustment knob. These features support posture changes and desk access during computer-based work. The twin-wheel casters are rated for 100000 rolling cycles, and the gas lift is rated for 100000 height-adjustment cycles. The model is appropriate for open-plan office workstations at 760 mm desks, where users benefit from swivel access, rolling mobility, and a defined lumbar contact point. It is also suitable for home offices and shared work areas used for daily computer tasks, and its 650 mm footprint is intended to fit standard desk openings in compact rooms. Procurement teams should allow for assembly, with a reference time of 40 minutes per set. Each set ships in two cartons, with packaged gross weight of 23 kg and carton volume of 0.26 m3; the indicative 20GP loading is 135 sets at 85 percent space utilization. Buyers should also confirm floor surface compatibility, desk height, armrest clearance, and assembly resources when ordering for multi-user workplace or residential projects.
