PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 700 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight reference	21 kg
Seat foam density	45 kg/m3
Back mesh tensile reference	250 N/50 mm
Gas lift service class	Class 4, 100 mm stroke, 50 mm tube diameter
Tilt range	135degrees from upright seat plane
Caster rolling durability target	100000 cycles
Gas lift cyclic durability target	100000 height-adjustment cycles
Base static load target	1136 kg vertical static load
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back upholstery	Gray woven elastic mesh over a black polymer back frame
Seat upholstery	Gray mesh top layer over molded cushion and black contoured seat shell
Headrest	Breathable gray mesh pillow with internal curved support board
Arm pads	Black polyurethane contact pads mounted on height-adjustable supports
Arm and hinge structure	Polished die-cast aluminum links with black painted steel or polymer uprights
Base and casters	Polished aluminum five-star base with black nylon twin-wheel casters and steel forks

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchronized recline	Back and seat move on a multi-position synchro-tilt mechanism through a 40-degree recline arc
Seat height adjustment	Side lever controls a Class 4 gas lift over a 100 mm height stroke for 540 mm seat heights
Armrest adjustment	Padded arms provide vertical height change and pivot adjustment through side hinge joints
Headrest adjustment	Curved mesh headrest adjusts in height and angle to support the neck in upright and reclined postures

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for managers, knowledge workers, and programmers at 760 mm desks because it combines lumbar mesh, adjustable arms, and recline support.
Recline-and-rest setting	Appropriate in private offices or focus rooms where the 300 mm retractable leg rest supports short reclined breaks between work tasks.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMC-HR-FT-AL5-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMC-HR-FT-AL5-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMC-HR-FT-AL5-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

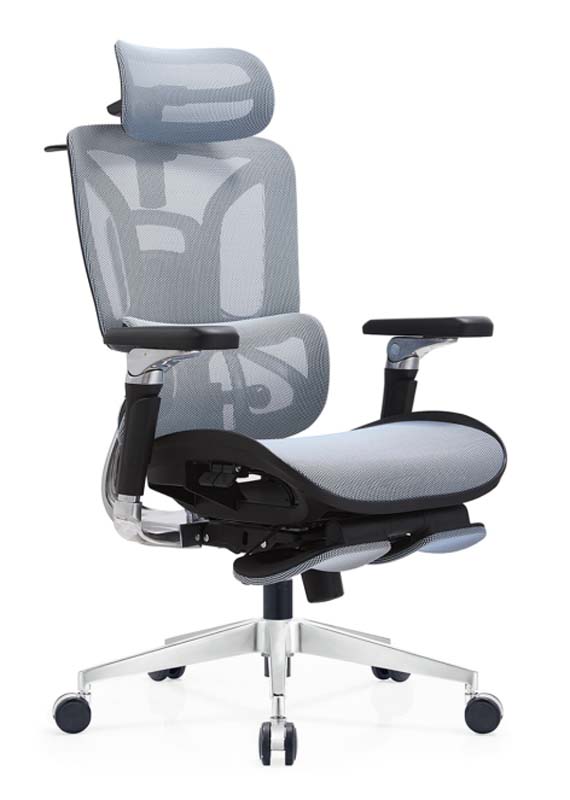

The Ergonomic Mesh Office Chair with Adjustable Headrest and Retractable Footrest is a high-back task seating solution finished in gray mesh with polished aluminum structural details. Model EMC-HR-FT-AL5-GRY is supplied without a brand label, presenting a clean, functional appearance suited to professional interiors. Its tall mesh back, contoured seat, curved headrest, padded armrests, and five-star base create a supportive silhouette, while the retractable leg rest allows the chair to move from an upright working posture to a relaxed recline. The back uses gray woven elastic mesh over a black polymer frame, combining a breathable contact surface with a defined lumbar support zone. The seat combines a gray mesh top layer, molded cushion, and black contoured shell. The finished cushion is 90 mm thick and uses 45 kg/m3 seat foam, while the backrest padding is 70 mm thick. A breathable gray mesh headrest includes an internal curved support board. Black polyurethane arm pads provide contact comfort, and the arm links and hinge structure use polished die-cast aluminum with black painted steel or polymer uprights. The polished aluminum five-star base is fitted with black nylon twin-wheel casters and steel forks. Designed for extended desk use, the chair features a multi-position synchro-tilt mechanism that moves the back and seat together through a 40-degree recline arc, reaching 135 degrees from the upright seat plane. A side lever operates the Class 4 gas lift, which has a 100 mm stroke and supports seat-height adjustment. The padded arms adjust vertically and pivot through side hinge joints, while the headrest adjusts in height and angle to support the neck in both upright and reclined positions. The clear width between armrests is 540 mm. The retractable leg rest extends 300 mm for short breaks, then tucks away to preserve a workstation-appropriate profile. This chair is well suited to manager offices, programmer workstations, knowledge-worker desks, private offices, and focus rooms, particularly where users want recline support without adding a separate lounge seat. Its gray and polished-aluminum finish works with modern commercial workspaces and refined home offices. Recommended user weight capacity is 150 kg, and the chair has a net weight reference of 21 kg. Procurement teams should plan for assembly and receiving logistics: each set ships in two cartons, with packaged gross weight of 23 kg, reference assembly time of 40 minutes, and a carton volume of 0.26 m3. The caster rolling durability target is 100000 cycles. Buyers should also review floor surfaces, delivery access, assembly responsibility, and whether the adjustable headrest, arms, synchro-tilt action, and retractable footrest match the intended users and seating standards.
