PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	690 × 670 × 1230 mm
Backrest height	760 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user body weight capacity	150 kg
Net weight	21 kg
Back tilt range	125degrees from horizontal seat plane
Seat tilt angle	5degrees rearward
Back tilt lock positions	4 positions
Gas-lift height travel	80 mm
Recommended user height range	190 cm
Durability target - gas lift	100,000 height cycles
Durability target - casters	100,000 rolling cycles on hard-floor test surface
Static load target - five-star base	1,136 kg vertical static proof load

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Black flexible engineered mesh tensioned over a curved polymer/steel perimeter frame
Seat upholstery and cushion	Black mesh surface over 60 mm molded foam seat pan with polymer load plate
Back support frame	Black polymer Y-frame with polished chrome side spine connecting back to seat mechanism
Arm components	Height-adjustable black steel or aluminum posts with soft polymer arm pads
Central mechanism	Black steel synchro-tilt mechanism with paddle levers and tension housing
Base and casters	Polished die-cast aluminum five-star base with 60 mm black twin-wheel nylon casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic right-side lever raises or lowers the seat through 80 mm travel for 530 mm desk compatibility.
Recline and lock	Synchro-tilt mechanism moves back to 125 degrees and locks at 4 selected positions, with seat synchronized to 5 degrees.
Armrest adjustment	Vertical arm posts provide 70 mm height adjustment and padded 250 x 90 mm support surfaces for shoulder relaxation.
Mobility and swivel	360-degree swivel seat and five 60 mm twin-wheel casters on a 700 mm base enable movement around a workstation.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	1 flat-packed carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to daily executive, managerial, or knowledge-worker seating where breathable high-back support and 530 mm desk height are required.
Project procurement use	Suitable for open offices, meeting rooms, and home offices when ordered with tested gas lift, durable casters, and documented fabric performance.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 suitability	Use for office-chair dimensional safety, stability, and ergonomic verification during purchasing acceptance.
EN 1335-2 suitability	Apply safety, structural strength, and durability test requirements to the chair, gas lift, arms, and base.
EN 1335-3 suitability	Use as the test-method reference for static load, fatigue, impact, and stability verification.
EN 1022 suitability	Use for domestic and contract seating stability verification where the project requests EN-based inspection.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 static base test	Applicable standards and test results require confirmation
BIFMA e3 suitability	Consider for furniture sustainability, material, chemical, and supply-chain scoring if the client requires it.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 suitability	Use for chair strength and durability testing in procurement QC, including back, seat, arm, and leg loading.
GB/T 3324 suitability	Apply general wooden-furniture dimensional and inspection references only to any board or finished-panel components in the BOM.
GB 17927 suitability	Use as upholstered-furniture safety and fire-performance acceptance reference when the destination project requires it.
GB/T 39223 suitability	Consider product-quality and performance inspection rules for office seating if domestic Chinese procurement applies.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 suitability: Use for chair strength and durability testing in procurement QC, including back, seat, arm, and leg loading.;
2. GB/T 3324 suitability: Apply general wooden-furniture dimensional and inspection references only to any board or finished-panel components in the BOM.;
3. GB 17927 suitability: Use as upholstered-furniture safety and fire-performance acceptance reference when the destination project requires it.;
4. GB/T 39223 suitability: Consider product-quality and performance inspection rules for office seating if domestic Chinese procurement applies.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-HB-MESH-CHR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-HB-MESH-CHR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-HB-MESH-CHR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

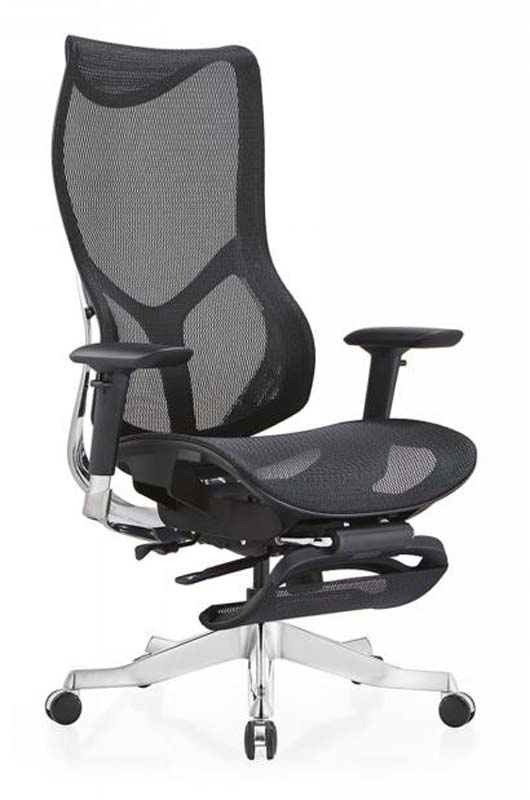

The High-Back Black Mesh Ergonomic Executive Office Chair is a professional seating solution with a streamlined black exterior and a tall, structured silhouette. Its high backrest uses flexible black engineered mesh tensioned over a curved polymer and steel perimeter frame, creating a breathable support surface with a contoured appearance. A black polymer Y-frame with a polished chrome side spine connects the back to the seat mechanism, while the polished die-cast aluminum five-star base adds a refined metallic contrast. The chair presents a practical executive look suited to interiors where understated black finishes and polished hardware are preferred. Construction combines upholstered comfort with durable structural components. The seat features a black mesh surface over a molded foam cushion supported by a polymer load plate, and the backrest includes padded depth within its tall support zone. Armrests use height-adjustable black steel or aluminum posts topped with soft black polymer pads. The central support is built around a black steel synchro-tilt mechanism with paddle levers and a tension housing, while the seating system is completed by a steel gas lift and black twin-wheel nylon casters set into the aluminum base. Functional features are designed for extended desk-based work. The pneumatic right-side lever adjusts seat height through an 80 mm travel range, supporting use with 530 mm desk heights. The synchro-tilt mechanism allows the back to recline to 125 degrees from the horizontal seat plane, while the seat moves in unison to a 5-degree rearward angle. Users can select from four back tilt lock positions. The arm posts provide 70 mm of vertical adjustment, and the padded arm surfaces support a relaxed shoulder position. A 360-degree swivel seat and five casters allow smooth movement within a workstation area. The listed weight capacity is 150 kg, and the maximum recommended user height is 190 cm. This model is appropriate for executive offices, managerial workstations, knowledge-worker environments, open offices, meeting rooms, and home offices. It is especially relevant where high-back support, breathable mesh, and mobility are priorities. For project procurement, buyers should confirm the gas lift, caster durability, and fabric performance documentation with the supplier, particularly when specifying multiple chairs for commercial settings. The product is supplied unbranded and flat packed; logistics information includes one set, a packaged gross weight of 23 kg, and a reference assembly time of 40 minutes per set.

High-Back Black Mesh Ergonomic Executive Office Chair Specifications
