PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 630 × 1180 mm
Overall chair dimensions	630 x 630 x 1180 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	13.5 kg
Recommended user weight capacity	135 kg
Seat foam density	45 kg/m3
Back mesh tensile support rating	120 kg static panel load
Seat surface static-load target	136 kg
Caster rolling durability target	100000 cycles
Gas lift cyclic durability target	100000 height-adjustment cycles
Tilt mechanism cyclic durability target	100000 recline cycles
Warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Black flexible woven mesh tensioned over a curved polymer frame
Seat upholstery	Black woven fabric over contoured foam padding
Seat cushion core	70 mm molded polyurethane foam with 45 kg/m3 target density
Arm and side frame	Black injection-molded polymer loop frame integrated with the back support
Seat underframe	Black molded polymer seat shell mounted to a steel tilt plate
Gas lift and column	Chrome-finished steel telescoping gas cylinder with a black painted outer column

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift controlled by the visible under-seat lever, with a 100 mm operating stroke
Recline and tension control	Center tilt mechanism with side tension knob, engineered for 19 degrees of synchronized back movement
Swivel movement	360-degree swivel around the central gas column for workstation rotation
Mobility	Five twin-wheel casters provide omnidirectional rolling on a 650 mm diameter base

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suited to daily computer tasks where a ventilated high back, fixed arms, swivel, and casters support standard desk movement.
Meeting and administrative work areas	Suitable for hot desks, reception work, and shared offices requiring a compact black mobile task chair.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Use office-chair dimensional and safety geometry requirements to validate seat, back, and clearance dimensions.
EN 1335-2 applicability	Specify office-chair safety requirements for structural integrity under intended user loading.
EN 1335-3 applicability	Specify office-chair test methods for static load, durability, impact, and caster performance.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 seat static load applicability	Use a 136 kg static seat-load evaluation as the procurement acceptance target.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 applicability	Apply chair mechanical and durability test requirements for formal supplier acceptance of strength and fatigue performance.
GB/T 10357.3 applicability	Apply chair back and arm strength test methods to verify the framed mesh back and fixed loop arms.
GB 17927 applicability	Use upholstered furniture safety assessment requirements for the fabric, foam, and cushion assembly.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 applicability: Apply chair mechanical and durability test requirements for formal supplier acceptance of strength and fatigue performance.;
2. GB/T 10357.3 applicability: Apply chair back and arm strength test methods to verify the framed mesh back and fixed loop arms.;
3. GB 17927 applicability: Use upholstered furniture safety assessment requirements for the fabric, foam, and cushion assembly.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MH-FA-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MH-FA-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MH-FA-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

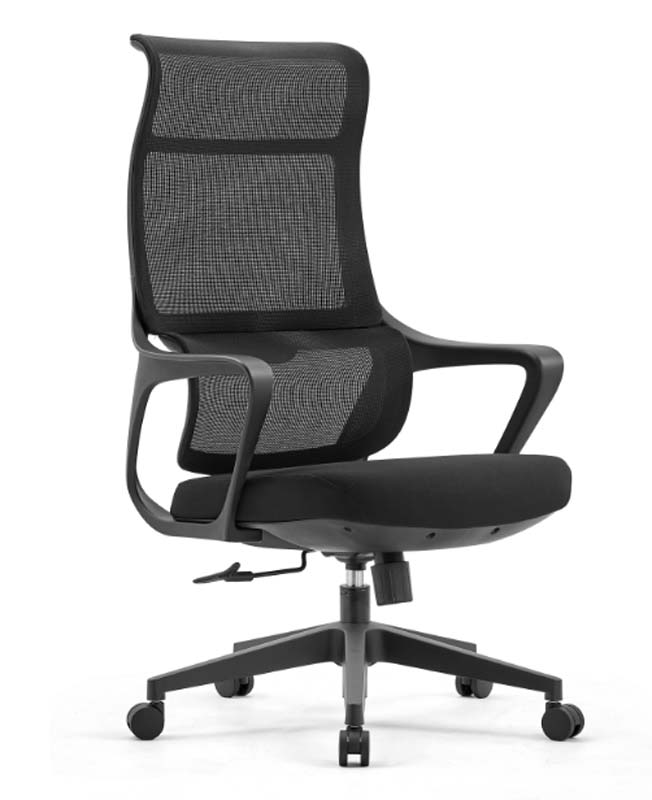

The Black High-Back Mesh Swivel Office Chair with Fixed Arms presents a clean, functional task-seating profile for everyday workstation use. Its upright high-back form is defined by black flexible woven mesh tensioned across a curved polymer frame, while the seat is upholstered in black woven fabric over contoured foam padding. A black injection-molded polymer loop frame integrates the armrests and back support, giving the chair a continuous side silhouette and fixed arm layout with a clear width between armrests of 540 mm. The five-star base is painted metal and supports a chrome-finished steel telescoping gas cylinder with a black painted outer column. Nylon twin-wheel casters complete the mobile, central-swivel design. Construction balances breathable support with structured cushioning. The backrest uses a curved polymer frame and mesh panel, with a 240 mm lumbar support zone and 70 mm backrest padding thickness. The seat combines a black molded polymer shell, steel tilt plate, and molded polyurethane foam core; the finished cushion is 90 mm thick, while the foam core is specified at 70 mm with a target density of 45 kg/m3. The chair has an overall dimension of 630 x 630 x 1180 mm and a net weight of 13.5 kg. Its published recommended user weight capacity is 135 kg, supported by component targets including a 136 kg static seat-surface load, 120 kg static mesh panel load, and 100,000-cycle targets for both caster rolling and gas-lift height adjustment. Operation is centered around practical office movement. A visible under-seat lever controls pneumatic height adjustment with a 100 mm operating stroke, while a center tilt mechanism and side tension knob provide 19 degrees of synchronized back movement. The chair rotates 360 degrees around the central gas column, and five twin-wheel casters offer omnidirectional rolling on a 650 mm diameter base footprint. The model is well suited to open-plan office workstations, computer-based tasks, hot desks, reception positions, meeting rooms, and shared administrative areas where a compact black mobile task chair is required. Its consistent black finish also makes it straightforward to coordinate with neutral commercial interiors. For procurement, the chair is unbranded and supplied as one set in two cartons, with packaged gross weight of 23 kg per set and reference carton volume of 0.26 m3 per set. Buyers should plan for about 40 minutes of assembly per set and review fixed-arm clearance, seat-height range, flooring compatibility, and replacement or warranty terms before volume ordering.

Black High-Back Mesh Swivel Office Chair with Fixed Arms Specifications
