PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1290 mm
Overall chair footprint	680 x 680 x 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight reference	22 kg
Back recline range	95 degrees to 135 degrees; published value 135 degrees
Seat-height lift travel	60 mm
Swivel rotation	360 degrees
Recommended user height range	1650 mm to 1900 mm; published value 1900 mm
Caster rolling durability target	100000 cycles
Gas-lift vertical durability target	100000 cycles
Back frame static load target	150 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back and seat upholstery	Gray polyester mesh tensioned over a molded frame, with open weave for air circulation
Load-bearing seat shell	Light-gray molded polymer seat pan with integrated side rails and front edge
Back frame	Light-gray polymer external frame surrounding flexible mesh and central support ribs
Headrest	Curved mesh pad on a polymer support with an adjustable connecting stem
Armrests	Height-oriented vertical supports with soft polyurethane pads and light-gray structural posts
Base and cylinder	Polished aluminum-alloy five-star base with chrome-plated steel gas-lift tube

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic lever under the seat raises or lowers the seat through a 60 mm stroke
Recline and lock	Multi-position tilt mechanism allows back recline to 135 degrees with lockable working and rest positions
Head support	Curved mesh headrest provides 90 mm height adjustment for neck support during reclined work or rest
Leg rest deployment	Two-panel hinged footrest extends from beneath the seat to 390 mm for reclined resting

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight	25 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to prolonged desk work in open offices, home offices, and manager workstations because of mesh ventilation, headrest, lumbar contour, and recline support.
Rest-capable meeting or study space	Appropriate where users need short reclined breaks between tasks, using the visible extending footrest and 135-degree back recline.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-FT-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-FT-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-FT-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

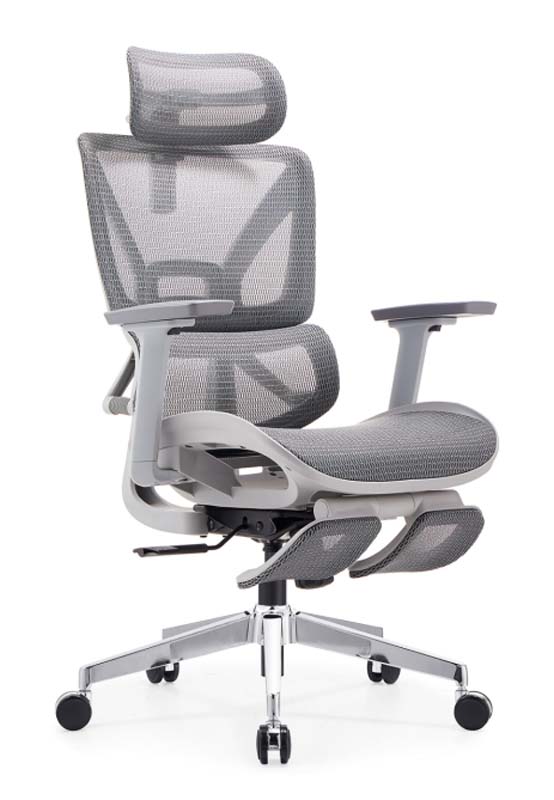

The Gray Mesh Ergonomic Reclining Office Chair presents a streamlined task-chair form with a light-gray molded polymer seat and back frame, breathable gray mesh upholstery, and a polished silver aluminum five-star base. Its curved mesh headrest, padded armrests, contoured lumbar zone, and mesh-covered extending leg rest create a coordinated support profile suited to both focused work and short reclined breaks. Black twin-wheel casters and the chrome gas lift provide a clean visual contrast with the gray frame and mesh. The back and seat use gray polyester mesh tensioned over molded polymer structures. The open-weave mesh supports air circulation, while the back frame surrounds the flexible mesh with central support ribs. The seat uses a molded polymer seat pan with integrated side rails and a shaped front edge, paired with a finished cushion thickness of 90 mm. The backrest padding thickness is 70 mm, and the lumbar support zone is 240 mm high. Armrests combine light-gray structural posts with soft polyurethane pads, leaving a 540 mm clear width between the pads. The chair rests on a polished aluminum-alloy five-star base with a chrome-plated steel gas-lift tube. Daily operation is managed through a pneumatic lever under the seat, providing 60 mm of height-adjustment travel. The multi-position tilt mechanism allows the back to recline to 135 degrees, with lockable working and rest positions. The curved mesh headrest offers 90 mm of height adjustment for neck support during reclined tasks or relaxation. A two-panel hinged footrest extends from beneath the seat to 390 mm, converting the chair from an upright workstation seat into a rest-capable seating option. Full 360-degree swivel and rolling casters support movement around a desk. With a recommended user weight capacity of 150 kg and a recommended user height value published at 1900 mm, the chair is appropriate for open-office workstations, home offices, manager desks, study areas, and meeting or quiet spaces where short breaks between tasks are useful. Buyers should plan for assembly, referenced at 40 minutes per set, and note that the product is supplied as one set in two cartons. The overall footprint is 680 x 680 x 1290 mm, net weight is 22 kg, and packaged gross weight is 25 kg, making doorway access, delivery handling, desk height, and under-desk clearance important procurement checks. As an unbranded model, ERG-MESH-FT-GRY-01 should be evaluated alongside warranty terms, replacement-part availability, delivery packaging, and the buyer’s required seat-height range before volume ordering.

Gray Mesh Ergonomic Reclining Office Chair with Headrest and Extending Footrest Specifications
