PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	16.5 kg
Recommended user height	185 cm
Seat tilt range	18 degrees rearward
Gas-lift height stroke	100 mm
Caster rolling durability target	100000 cycles
Base static-load acceptance target	1136 kg
Seat foam density	45 kg/m3 molded polyurethane foam
Seat foam rebound	40%
Back mesh tensile acceptance target	200 N strip tension

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back and headrest suspension	Black woven polymer mesh over a curved polymer outer frame
Seat cushion	Molded polyurethane foam pad covered with black woven fabric or mesh textile
Load-bearing back frame	Injection-molded polypropylene back shell with a rigid lower Y-shaped brace
Arm assembly	Black molded fixed T-arm with horizontal pad and vertical support
Central support	Black-painted steel gas-lift column with 50 mm visible outer tube
Base and casters	Black nylon five-star base with five twin-wheel swivel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic gas lift raises and lowers the seat through a 100 mm stroke using the right-side lever
Recline control	Synchro tilt allows an 18-degree rearward back movement with proportional seat movement and lockable positions
Lumbar adjustment	Rear knob-and-bracket assembly changes the lumbar support height through a 70 mm vertical travel
Headrest positioning	Curved mesh headrest moves through an 80 mm height range and pivots 30 degrees on its bracket

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Export carton dimensions	840 x 650 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workplace use	Open-plan workstations, private offices and home offices needing full-back support, swivel movement and carpet or hard-floor mobility
Procurement configuration	Suitable for fleet deployment in 20-unit batches or larger when paired with 720 mm deep desks and monitor arms

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Verify office-chair dimensions, including seat height, depth, back support and clearances, against the supplied drawing
EN 1335-2 applicability	Require safety, stability and structural test evidence for caster chairs before fleet purchase
EN 1335-3 applicability	Use durability test methods for seat, back, arm, gas lift and caster cyclic performance
EN 1021-1 and EN 1021-2 applicability	Request cigarette and match ignition resistance reports when project fire specifications require textile testing

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.11 applicability	Use the general-purpose office-chair standard for safety, durability, stability and base-load acceptance
ANSI/BIFMA X5.1 static load applicability	Apply vertical back, seat, arm and five-star base static-load tests as procurement acceptance items

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 applicability	Apply chair strength and durability test methods to backrest, seat, arms and base during procurement verification
GB/T 3324 applicability	Use general wooden-furniture dimensional and inspection rules only where non-metal seat boards are supplied
GB 17927 applicability	Request upholstered furniture flame-retardant property documentation if public-sector fire requirements apply

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 applicability: Apply chair strength and durability test methods to backrest, seat, arms and base during procurement verification;
2. GB/T 3324 applicability: Use general wooden-furniture dimensional and inspection rules only where non-metal seat boards are supplied;
3. GB 17927 applicability: Request upholstered furniture flame-retardant property documentation if public-sector fire requirements apply;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMH-MESH-HB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMH-MESH-HB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMH-MESH-HB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

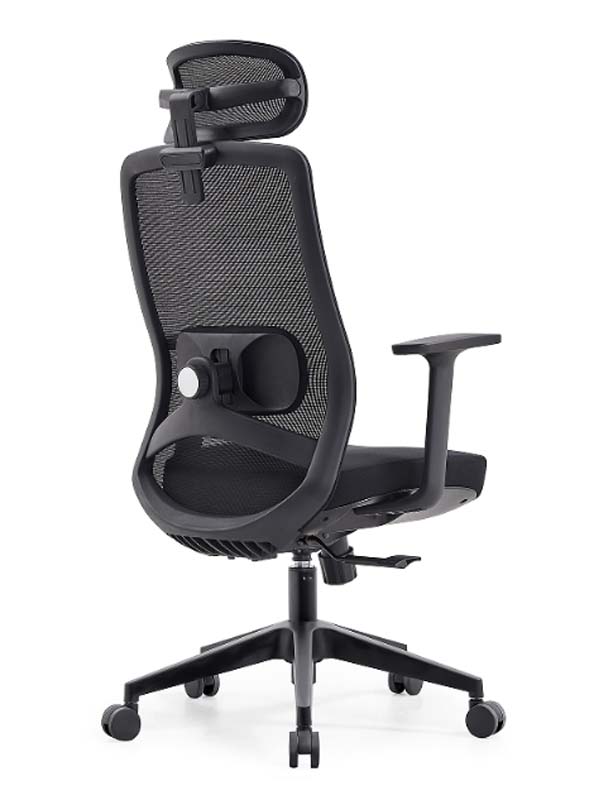

The Black Mesh High-Back Ergonomic Task Chair with Headrest and Fixed Arms presents a clean, professional profile suited to sustained desk work. Its tall black mesh back curves upward to support the full back, while the integrated headrest extends the vertical line and adds a dedicated contact point behind the head. The black molded T-arms frame the seat with horizontal pads and vertical supports, and the five-star base with twin-wheel casters creates a stable, mobile foundation suited to swivel-based workstations. Construction combines breathable and structured components. The back and headrest use black woven polymer mesh suspended over a curved polymer outer frame, while the load-bearing back structure uses an injection-molded polypropylene shell reinforced at the lower section by a rigid Y-shaped brace. The seat features a molded polyurethane foam cushion with a black woven fabric or mesh textile cover. Fixed armrests and the frame are molded in black plastic, the central column is a black-painted steel gas lift, and the base is formed in black nylon. Product dimensions are 650 x 650 x 1320 mm, with a 90 mm finished seat cushion, 70 mm backrest padding, a 240 mm lumbar support zone, and 540 mm of clear width between the armrests. Functional adjustment is concentrated around individualized seating posture. A right-side lever controls the pneumatic seat-height lift through its 100 mm stroke. The synchro tilt mechanism permits 18 degrees of rearward back movement with proportional seat movement and lockable positions. A rear knob-and-bracket assembly adjusts lumbar support height through 70 mm of vertical travel, and the curved mesh headrest offers 80 mm of height adjustment plus 30 degrees of pivot. The recommended user weight capacity is 150 kg and recommended user height is 185 cm; the chair itself weighs 16.5 kg. This model fits open-plan workstations, private offices, and home offices where full-back support, swivel movement, and mobility across carpet or hard floors are required. For coordinated workspace planning, it pairs effectively with 720 mm deep desks and monitor arms, and it is suitable for fleet deployment in 20-unit batches or larger. Buyers should account for delivery as one set packed in two cartons, a packaged gross weight of 23 kg per set, 0.26 cubic meters of carton volume, and a reference assembly time of 40 minutes per set. The unbranded EMH-MESH-HB-01 is best specified where a uniform black task chair, fixed arms, adjustable lumbar support, and a high-back mesh structure are priorities.

Black Mesh High-Back Ergonomic Task Chair with Headrest and Fixed Arms Specifications
