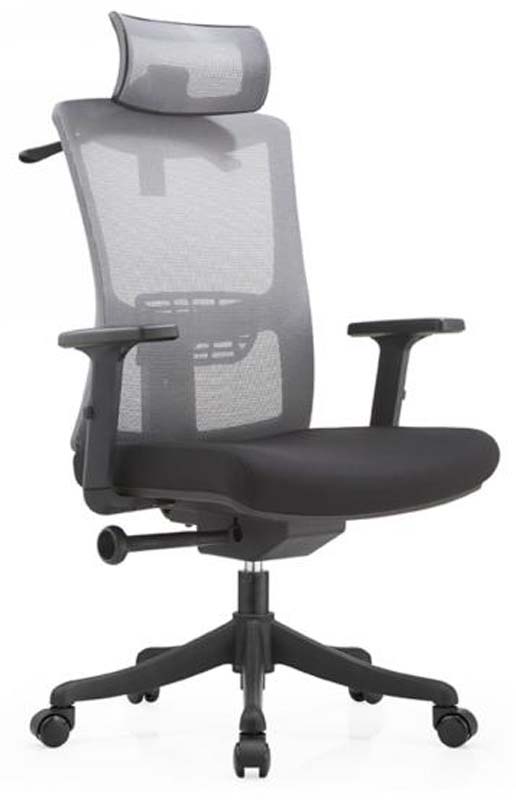

High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms (model EM-HB-GM-01) is listed under Mesh Office Chair. Dimensions: 670 × 660 × 1300 mm. Materials: Gray woven mesh stretched over a framed contoured back, visible as a ventilated elastic support surface; yarn type needs BOM confirmation.. Load capacity: 1136 kg. Product Features: ergonomic,high-back,chair,mesh,back,headrest,adjustable,armrests,swivel,base,black,and,gray. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | FENGGUAN | Model | EM-HB-GM-01 |
| Overall dimensions (W × D × H) | 670 × 660 × 1300 mm | Finished Seat Cushion Thickness | 90 mm |
| Backrest Padding Thickness | 70 mm | Lumbar Support Zone Height | 240 mm |
| Clear Width Between Armrests | 540 mm | Recommended user weight capacity | 150 kg |
| Net weight | 17 kg | Seat foam density | 45 kg/m3 |
| Seat foam thickness | 80 mm | Back mesh tensile acceptance target | 900 N |
| Gas-lift class | Class 4 | Caster rolling durability target | 100000 cycles |
| Base static load verification target | 1136 kg | Seat-front edge load rating | 750 N |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | Backrest upholstery | Gray woven mesh stretched over a framed contoured back, visible as a ventilated elastic support surface; yarn type needs BOM confirmation. |
| Headrest | Curved gray mesh-faced pillow attached by a black central bracket; internal padding and adjustment hardware need supplier BOM confirmation. | Seat cushion | Black upholstered foam cushion on a molded support shell; fabric weave, foam density and flame rating require supplier BOM confirmation. |
| Armrests | Black fixed-height T-shaped supports with molded flat arm pads; plastic or nylon construction is inferred from visible finish. | Back frame | Black molded outer frame supporting the mesh panel; impact-resistant PP or PA/PP construction is inferred and requires BOM confirmation. |
| Five-star base and casters | Black molded five-star base with five twin-wheel swivel casters; nylon or glass-filled nylon base and caster material need BOM confirmation. | Height adjustment | Pneumatic seat-height lift through a 90 mm stroke using the right-side lever under the seat. |
| Back recline | Synchro-tilt mechanism provides a 15-degree backrest recline with seat synchronized movement and tension control. | Locking control | Multi-position tilt lock secures the chair at upright or selected reclined positions through the under-seat lever cluster. |
| Swivel and mobility | 360-degree swivel seat and five twin-wheel casters enable movement on hard floors and low-pile carpet. | Carton dimensions | 680 x 630 x 720 mm |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Carton Dimensions | 850× 420× 720 mm | Reference Packaged Gross Weight | 23 kg/set |
| Reference Carton Volume | 0.26 m³/set | Office workstation use | Suitable for desk-based staff, engineers and administrators requiring ventilated back support, swivel movement and 540 mm desk-height compatibility. |
| Meeting or home-office use | Appropriate for prolonged computer work in private offices, open workstations and home offices where a headrest and recline function are required. | — | — |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 670 × 660 × 1300 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 17 kg | |
| Seat foam density | 45 kg/m3 | |
| Seat foam thickness | 80 mm | |
| Back mesh tensile acceptance target | 900 N | |
| Gas-lift class | Class 4 | |
| Caster rolling durability target | 100000 cycles | |
| Base static load verification target | 1136 kg | |
| Seat-front edge load rating | 750 N | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest upholstery | Gray woven mesh stretched over a framed contoured back, visible as a ventilated elastic support surface; yarn type needs BOM confirmation. | |
|---|---|---|
| Headrest | Curved gray mesh-faced pillow attached by a black central bracket; internal padding and adjustment hardware need supplier BOM confirmation. | |
| Seat cushion | Black upholstered foam cushion on a molded support shell; fabric weave, foam density and flame rating require supplier BOM confirmation. | |
| Armrests | Black fixed-height T-shaped supports with molded flat arm pads; plastic or nylon construction is inferred from visible finish. | |
| Back frame | Black molded outer frame supporting the mesh panel; impact-resistant PP or PA/PP construction is inferred and requires BOM confirmation. | |
| Five-star base and casters | Black molded five-star base with five twin-wheel swivel casters; nylon or glass-filled nylon base and caster material need BOM confirmation. |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift through a 90 mm stroke using the right-side lever under the seat. | |
|---|---|---|
| Back recline | Synchro-tilt mechanism provides a 15-degree backrest recline with seat synchronized movement and tension control. | |
| Locking control | Multi-position tilt lock secures the chair at upright or selected reclined positions through the under-seat lever cluster. | |
| Swivel and mobility | 360-degree swivel seat and five twin-wheel casters enable movement on hard floors and low-pile carpet. |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 680 x 630 x 720 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suitable for desk-based staff, engineers and administrators requiring ventilated back support, swivel movement and 540 mm desk-height compatibility. | |
|---|---|---|
| Meeting or home-office use | Appropriate for prolonged computer work in private offices, open workstations and home offices where a headrest and recline function are required. |
EU Market Access Requirements* EN Standards
| EN 1335-1 suitability | Use office-furniture dimensions and safety terms to verify seat-height range, clearance and stability geometry. | |
|---|---|---|
| EN 1335-2 suitability | Apply safety test requirements for office work chairs, including stability, strength and caster integrity. | |
| EN 1335-3 suitability | Apply structural and durability test methods for back, seat, armrests, base and mechanism verification. | |
| EN 1021-1 suitability | Request cigarette-ignition upholstery resistance test data if cigarette-smolder fabric compliance is required. |
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 Office Chair suitability | Use the office-chairs standard for static, dynamic, impact, stability, back and arm verification during procurement testing. | |
|---|---|---|
| ANSI/BIFMA e3 suitability | Request multi-attribute sustainability documentation, including material content and emissions, if the purchasing program requires it. |
Standards applicable to China-market projects
| GB/T 10357.3 suitability | Apply strength and durability test methods for seating furniture to back, arm, leg and fatigue verification before acceptance. | |
|---|---|---|
| GB/T 24821 suitability | Use general technical requirements for metal furniture when inspecting the lift column, mechanism and metal fasteners. | |
| GB 18584 suitability | Request indoor-furniture limits for formaldehyde and other hazardous substances for any wood-based or upholstered components. |
This product must meet the following technical requirements: 1. GB/T 10357.3 suitability: Apply strength and durability test methods for seating furniture to back, arm, leg and fatigue verification before acceptance.; 2. GB/T 24821 suitability: Use general technical requirements for metal furniture when inspecting the lift column, mechanism and metal fasteners.; 3. GB 18584 suitability: Request indoor-furniture limits for formaldehyde and other hazardous substances for any wood-based or upholstered components.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
Export data is generated from the current published product record.
Directly download an English report in metric or imperial units.
Download all product information and parameter modules in English.
English title, specifications, materials, standards and purchasing fields.
Prepare customs description, material, usage, dimensions and declaration elements.
