PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 680 × 1210 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	150 kg
Net weight	18 kg
Seat foam static load capacity	160 kg
Base static load target	1134 kg
Gas-lift class	Class 4
Seat height adjustment travel	90 mm
Backrest recline travel	30 degrees
Tilt lock positions	4 positions
Durability target	100000 cycles
Warranty target	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Pink flexible polyester mesh stretched over a contoured polymer frame
Seat upholstery	Pink woven mesh or mesh-faced fabric over molded foam cushion
Cushion core	45 mm molded polyurethane foam with density 45 kg/m3 and 40 percent resilience
Arm pads	Gray soft-touch polyurethane pads on polymer support caps
Arm frame	Polished aluminum or chrome-finished die-cast side frame with gray vertical post
Seat mechanism	Black steel tilt mechanism with polymer height-adjustment actuator

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic right-hand lever raises and lowers the seat through 90 mm of travel to 540 mm maximum height.
Synchro recline	Under-seat mechanism coordinates 30-degree back recline with proportional seat tilt and locks in 4 positions.
Swivel movement	360-degree swivel around the central gas lift, supported by the radial aluminum base and twin casters.
Mobile support	Five 60 mm twin-wheel casters provide rolling movement on hard floors; soft casters should be specified for carpet.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation	Suitable for individual desks, open-plan seating and 8-hour computer work because of high back, adjustable arms and mobile swivel base.
Meeting or management room	Pink mesh and polished aluminum base fit executive, creative or meeting spaces requiring a lighter visual form than leather task chairs.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1	Office chair dimensional safety and ergonomic geometry standard for contract-furniture evaluation.
EN 1335-2	Safety requirements including stability, static load and structural integrity for office work chairs.
EN 1335-3	Test methods for office chair strength, durability and safety verification by an accredited laboratory.
EN 1021-1	Upholstered seating ignitability test with smouldering cigarette, relevant to fabric and foam acceptance.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1	Office chairs standard for structural safety, stability, cyclic durability, static load and caster performance.
BIFMA e3 level	Sustainability framework applicable to material, energy, human-health and social-impact procurement scoring.
ANSI/BIFMA X5.4	Lounge and public seating reference only for alternative heavy-use seating validation; primary chair remains X5.1.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3	Furniture strength and durability test method for chair back and seat loading, suitable for procurement verification.
GB/T 28004.1	Office furniture work chair standard covering functional and safety requirements for commercial swivel chairs.
GB 18584	Indoor decorative material limit for formaldehyde emission on wood-based and upholstered furniture components.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3: Furniture strength and durability test method for chair back and seat loading, suitable for procurement verification.;
2. GB/T 28004.1: Office furniture work chair standard covering functional and safety requirements for commercial swivel chairs.;
3. GB 18584: Indoor decorative material limit for formaldehyde emission on wood-based and upholstered furniture components.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EOCHB-MESH-AL5-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EOCHB-MESH-AL5-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EOCHB-MESH-AL5-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

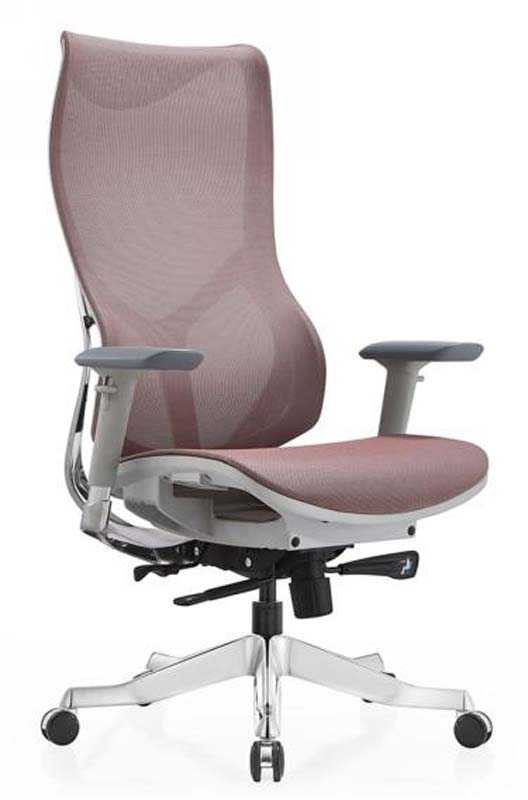

The High-Back Ergonomic Mesh Office Chair, model EOCHB-MESH-AL5presents a distinctive task seating solution with its pink flexible polyester mesh back and matching mesh-faced seat contrasted by polished aluminum structural elements. The chair follows a classic ergonomic silhouette with a tall contoured backrest framed in polymer, gray soft-touch polyurethane arm pads mounted on polished aluminum side frames with gray vertical posts, and a polished five-star aluminum base fitted with black twin-wheel casters. The overall form measures 670 by 680 by 1210 millimeters, with a 240-millimeter lumbar support zone and 540-millimeter clear width between armrests. Seat cushion construction combines a 45-millimeter molded polyurethane foam core rated at 45 kilograms per cubic meter density and 40 percent resilience, finished to a 90-millimeter total cushion thickness beneath pink woven mesh or mesh-faced fabric, while the backrest carries 70 millimeters of padding. A black steel tilt mechanism with a polymer height-adjustment actuator sits beneath the seat, and a Class 4 steel gas lift connects the seat to the radial base. Functional accommodation centers on pneumatic seat height control through a right-hand lever offering 90 millimeters of travel up to a 540-millimeter maximum seat height. The synchro mechanism coordinates a 30-degree backrest recline with proportional seat tilt and locks across four positions, while full 360-degree swivel and five 60-millimeter twin-wheel casters enable smooth repositioning across hard floors; specifying soft casters is advisable for carpeted environments. The chair is rated for a recommended user weight of 150 kilograms, with a net weight of 18 kilograms, seat foam static load capacity of 160 kilograms, and base static load target of 1134 kilograms. This model suits individual desks and open-plan office workstations supporting extended computer work, and its pink mesh paired with polished aluminum brings a lighter visual character than leather task chairs to executive offices, creative studios, and meeting rooms. Residential buyers seeking a statement home office chair will find the same aesthetic suitable. Procurement teams should note each set ships unbranded in two cartons totaling 23 kilograms with 0.26 cubic meters of volume, reference assembly time runs 40 minutes per set, and a 20-foot container accommodates 135 sets at 85 percent space utilization. Confirming armrest adjustability details, floor-specific caster selection, and fabric color consistency with interior schemes prior to bulk ordering is recommended.
