PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 650 × 1260 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	135 kg
Net weight	16 kg
Seat static-load verification target	102 kg
Backrest cyclic test target	120,000 cycles
Gas-lift downward-cycle target	100,000 cycles
Caster rolling durability target	100,000 cycles
Base static-load verification target	1134 kg
Recommended user height range	160 to 190 cm
Warranty target	5 years
Color option count	1 color

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Breathable gray woven mesh held in a molded polymer back frame
Seat upholstery	Gray mesh or fabric surface over molded cushioning with a contoured polymer seat pan
Seat foam	80 mm molded polyurethane foam, specified procurement density 45 kg/m3
Back frame	Gray glass-fiber-reinforced nylon or PP polymer frame with continuous side rails
Armrests	Fixed gray polymer arm supports with soft-touch polymer elbow pads
Headrest	Curved polymer frame with gray mesh facing and height-adjustable support post

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 90 mm travel, operated by the visible right-side lever for sit-stand desk fit
Recline control	Synchro or center-tilt mechanism with 25-degree backward movement and tension control for users up to 135 kg
Back lock	Multi-position tilt lock selectable through the under-seat mechanism for upright work or reclined rest
Lumbar adjustment	Rotating rear dial changes lumbar support depth or height to align the lower-back pad with the lumbar curve

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suits daily computer work where breathable mesh, lumbar support, swivel access, and rolling mobility are required for 6 to 8 hour shifts
Home office or executive workstation	Gray neutral finish and high-back headrest fit private offices and study rooms needing ergonomic support without a bulky visual profile

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-HBM-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-HBM-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-HBM-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

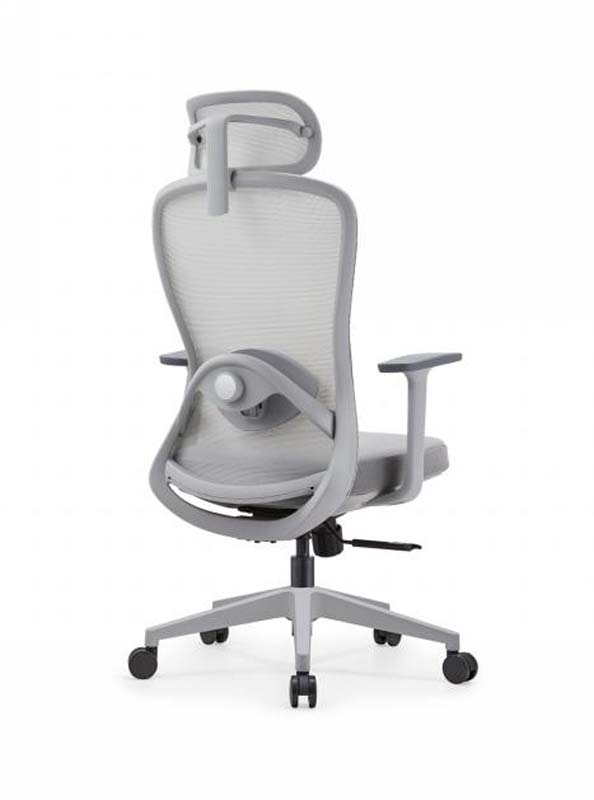

The Gray High-Back Mesh Ergonomic Office Chair, model ERG-HBM-GRY-01, offers a structured task-seating solution for professional and home work environments. Its neutral gray finish, tall mesh backrest, integrated headrest, and contoured seat create a streamlined visual profile suited to settings where support and a restrained appearance are both important. The five-star base, central gas lift, fixed armrests, and twin-wheel casters establish a familiar swivel-chair layout, while the high-back form extends support toward the upper back and head. The backrest uses breathable gray woven mesh set within a molded polymer frame with continuous side rails. The frame is specified in gray glass-fiber-reinforced nylon or PP polymer. A curved headrest with gray mesh facing is mounted on a height-adjustable support post. The seat combines a gray mesh or fabric surface, molded cushioning, and a contoured polymer seat pan. Its molded polyurethane foam is specified at 80 millimeters with a procurement density of 45 kilograms per cubic meter, while the finished cushion thickness is listed at 90 millimeters. Fixed gray polymer arm supports include soft-touch elbow pads, and the chair uses a steel gas lift, nylon five-star base, and twin-wheel casters. Functional adjustment is centered around the under-seat controls and rear lumbar dial. Pneumatic seat-height adjustment provides 90 millimeters of travel through the visible right-side lever, helping the chair align with sit-stand desks or fixed work surfaces. The synchro or center-tilt mechanism allows 25 degrees of backward movement and includes tension control. A multi-position tilt lock lets users select upright support for focused work or a reclined position for brief rest. The rotating rear dial modifies lumbar support depth or height, aligning the lower-back pad with the lumbar curve within the 240-millimeter support zone. Swivel movement and rolling casters support easy turning and repositioning. The chair is well suited to open-plan office workstations used for daily computer work, especially where breathable backing, lumbar support, swivel access, and mobility are required across regular shifts. Its gray, unbranded presentation also fits private offices, executive workstations, home studies, and residential workspaces seeking ergonomic features without a bulky look. Procurement teams should note the 135-kilogram recommended user weight capacity, 540-millimeter width between armrests, and 16-kilogram net weight. Delivery is organized as one set in two cartons, with packaged gross weight of 23 kilograms, a reference assembly time of 40 minutes, and verification or durability targets documented for the seat, backrest, gas lift, casters, and base.

Gray High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Lumbar Support Specifications
