PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	12.5 kg
Static base load rating	500 kg
Seat impact durability target	100000 cycles
Caster rolling durability target	100000 cycles
Gas-lift downward load target	150 kg
Backrest tilt force range	45 to 110 Nf
Seat foam density	45 kg/m3
Back mesh tensile verification target	120 N
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest construction	Grey flexible mesh stretched within a black moulded plastic outer frame
Seat cushion	Black fabric or bonded-leather look upholstery over cut foam on a load-bearing seat shell
Seat foam	70 mm polyurethane foam at 45 kg/m3 density and 40 percent rebound
Armrests	Fixed black polymer T-arms with horizontal pads and vertical supports
Five-star base	Black moulded nylon or glass-filled nylon five-star base with raised center hub
Gas lift and mechanism	Black powder-coated steel gas cylinder with steel or polymer tilt mechanism under the seat

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operates through the visible right-side lever and provides 100 mm travel
Swivel function	360-degree swivel around the gas-lift centerline with five radial caster supports
Back recline	Spring-tension synchro or center-tilt mechanism with 12-degree rearward recline and one lock position
Mobility	Five twin-wheel casters provide omnidirectional movement on hard floors or low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	660 x 590 x 330 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation application	Suitable for open-plan offices, home offices, and shared workstations requiring swivel access and compact 620 mm footprint
User profile	Designed for general adults up to 120 kg performing 6-hour daily computer or desk tasks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Office-work-chair dimensional safety requirements should cover seat range, stability, and user clearance
EN 1335-2 applicability	Applicable standards and test results require confirmation
EN 1335-3 applicability	Office-work-chair test methods should be used for static load, fatigue, impact, and durability verification
EN 1021-1 applicability	Upholstery ignited-smolder resistance should be specified when fabric or foam seating requires fire verification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.11 applicability	Applicable standards and test results require confirmation
ANSI/BIFMA X5.1 applicability	Office chairs installed in commercial workplaces should be verified for static load, durability, stability, and caster performance
BIFMA e3 applicability	Furniture sustainability attributes should include material content, adhesives, finishes, and packaging documentation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 applicability	Furniture mechanical testing for chair strength and durability should cover seat, back, arm, and leg loads
GB/T 3324 applicability	General wooden furniture technical requirements apply only if the concealed seat board is wood-based
GB 17927 applicability	Upholstered furniture fire-safety requirements should be checked for the cushioned seat when specified for China projects

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 applicability: Furniture mechanical testing for chair strength and durability should cover seat, back, arm, and leg loads;
2. GB/T 3324 applicability: General wooden furniture technical requirements apply only if the concealed seat board is wood-based;
3. GB 17927 applicability: Upholstered furniture fire-safety requirements should be checked for the cushioned seat when specified for China projects;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UBC-MB-FA-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UBC-MB-FA-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UBC-MB-FA-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

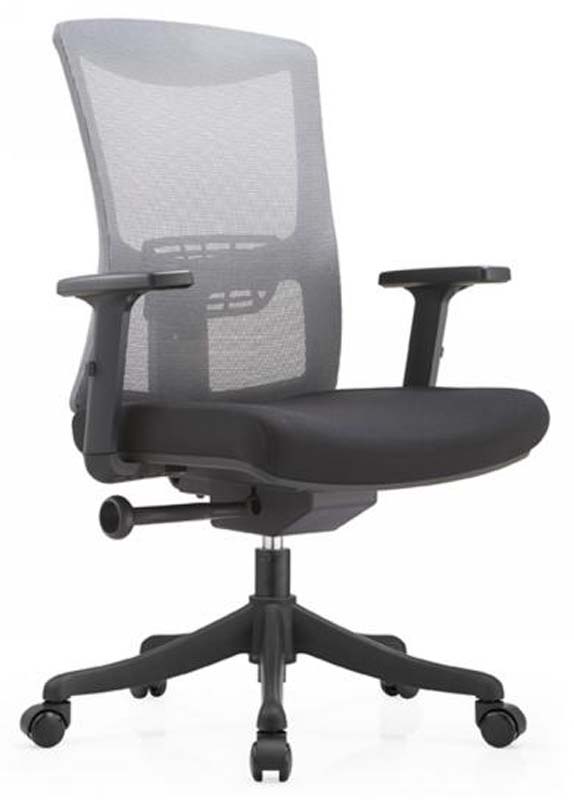

The Mid-Back Mesh Swivel Task Chair with Fixed Arms is an unbranded office chair designed for practical daily desk use. Its structured, commercial-task appearance combines a grey flexible mesh back set within a black moulded plastic outer frame, a black upholstered foam seat, fixed black polymer T-arms, and a black five-star base. The overall form is compact and balanced, with radial caster supports and a raised center hub giving the chair a conventional workstation profile suited to orderly open-plan or residential office layouts. Construction centers on a load-bearing seat shell with cut foam and a black fabric or bonded-leather look upholstery finish. The seat foam is specified at 70 millimeters thick with 45 kilograms per cubic meter density and 40 percent rebound, while the finished cushion thickness is 90 millimeters. The backrest includes 70 millimeters of padding thickness and a 240-millimeter lumbar support zone. Fixed armrests use horizontal pads and vertical supports, with 540 millimeters of clear width between them. Mobility is supported by five twin-wheel casters, a black moulded nylon or glass-filled nylon base, and a black powder-coated steel gas cylinder. A steel or polymer tilt mechanism is located beneath the seat. Functionally, the chair provides 360-degree swivel around the gas-lift centerline and pneumatic seat-height adjustment through a visible right-side lever with 100 millimeters of travel. Its spring-tension synchro or center-tilt mechanism allows 12 degrees of rearward recline and includes one lock position. The dual-wheel casters are intended for omnidirectional movement on hard floors or low-pile carpet. The recommended user weight capacity is 120 kilograms, and the chair is designed for general adults performing six hours of daily computer or desk tasks. This model is suitable for open-plan offices, home offices, and shared workstations where swivel access and a compact 620-millimeter footprint are priorities. Procurement teams should note that it is supplied as one set in two cartons, with a packaged gross weight of 23 kilograms and a reference assembly time of 40 minutes per set. Buyers should also confirm the preferred seat upholstery option, base material specification, caster suitability for the intended floor surface, and replacement or warranty arrangements before purchase.

Mid-Back Mesh Swivel Task Chair with Fixed Arms Specifications
