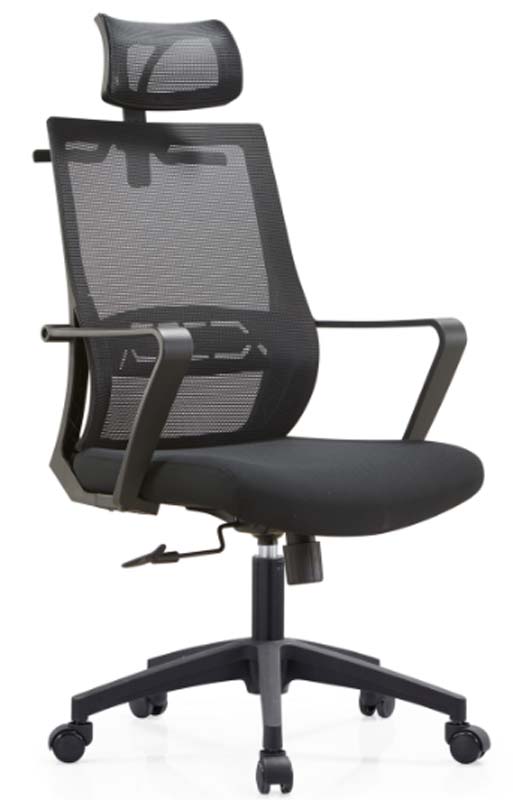

Product supplierBlack Mesh Ergonomic Executive Task Chair with Headrest, Black flexible woven mesh over a black molded polymer outer frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 660 × 660 × 1270 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 136 kg | |
|---|---|---|
| Net weight | 15.6 kg | |
| Seat foam density | 45 kg/m3 molded polyurethane | |
| Seat foam thickness | 70 mm | |
| Back mesh load rating | 136 kg static user load | |
| Backrest recline range | 95 to 115 degrees | |
| Caster rolling durability | 100000 cycles | |
| Gas-lift cycles | 100000 height-adjustment cycles | |
| Base static-load rating | 1134 kg | |
| Applicable user height | 1600 to 1900 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest construction | Black flexible woven mesh over a black molded polymer outer frame | |
|---|---|---|
| Seat upholstery | Black woven polyester fabric over polyurethane foam cushion | |
| Headrest construction | Curved mesh-faced padded headrest on black polymer support | |
| Armrests | Fixed black nylon loop armrests with steel or molded rear supports | |
| Lift and mechanism | 50 mm steel gas lift with black painted telescopic sleeve and steel tilt mechanism | |
| Base and casters | Black molded nylon five-star base with five 60 mm twin-wheel casters |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height adjustment through 100 mm using the right-side paddle lever | |
|---|---|---|
| Recline and lock | Synchro-style back tilt from 95 to 115 degrees with upright lock position | |
| Swivel mobility | 360-degree swivel seat on five twin-wheel casters for carpet or hard-floor movement | |
| Postural support | Contoured mesh back, fixed loop arms and curved headrest provide shoulder, arm and neck support |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Export carton size | 880 x 640 x 360 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary workspace | Open offices, executive desks and home workstations requiring 4 to 8 hours of seated task support | |
|---|---|---|
| Procurement configuration | Suitable for individual workstations and bulk office refreshes where black mesh, fixed arms and rolling mobility are required |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office chair safety proposal | EN 1335:2020 dimensional and safety requirements for office work chairs | |
|---|---|---|
| Mechanical test proposal | EN 1335:2018 strength, durability and stability test requirements | |
| Surface test proposal | EN 1335:2009 test methods for office chair safety and structural performance |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Task chair safety proposal | ANSI/BIFMA X2017office chairs strength, durability and stability | |
|---|---|---|
| Low-chemical seating proposal | Recommended references: ANSI/BIFMA e2019 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Office chair safety proposal | GB/T 28004.1:2021 office chair structural safety and stability requirements | |
|---|---|---|
| Formaldehyde emission proposal | GB 18584:2001 indoor wooden-furniture hazardous-material limits | |
| Upholstered furniture proposal | GB/T 3324:2017 general furniture requirements for dimensions, finish and workmanship |
Standardized tender description text
This product must meet the following technical requirements: 1. Office chair safety proposal: GB/T 28004.1:2021 office chair structural safety and stability requirements; 2. Formaldehyde emission proposal: GB 18584:2001 indoor wooden-furniture hazardous-material limits; 3. Upholstered furniture proposal: GB/T 3324:2017 general furniture requirements for dimensions, finish and workmanship; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
