PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 670 × 1050 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Chair net weight	17.5 kg
Seat foam density	45 kg/m3
Seat foam rebound	40%
Mesh fabric abrasion resistance	60000 Martindale cycles
Back mesh load deflection acceptance	136 kg static seat load
Caster rolling durability target	100000 cycles
Gas lift cycle target	100000 height-adjustment cycles
Warranty duration	5 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Gray flexible woven mesh tensioned in a black polymer outer frame
Seat surface	Gray mesh upholstery over a shaped polymer seat pan and foam support pad
Cushion core	60 mm molded polyurethane foam at 45 kg/m3 density
Arm assembly	Black rigid polymer arm pads and posts with silver decorative collars
Seat mechanism	Black steel synchro-tilt mechanism enclosed by polymer shrouds
Base and lift	Polished aluminum five-star base, chrome-plated steel gas lift, and black nylon twin-wheel casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 90 mm travel, operated by the right-side lever and rated for a 50 mm Class 4 cylinder
Recline system	Synchro seat-and-back tilt through a 24-degree recline arc with tension adjustment for users up to 136 kg
Movement and rotation	360-degree swivel seat on a central gas lift with five 60 mm twin-wheel casters for omnidirectional movement
Arm support	Fixed height armrests with 250 x 85 mm pads positioned 220 mm above the seat for keyboard and meeting use

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Export carton dimensions	680 x 620 x 340 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workplace use	Open-plan offices, workstation rows, meeting rooms and home offices where breathable back support and swivel mobility are needed
Recommended user profile	Users weighing up to 136 kg using standard 720 to 750 mm desks for 6 to 8 hours of daily computer work

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MT-MESH-MB-PA-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MT-MESH-MB-PA-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MT-MESH-MB-PA-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

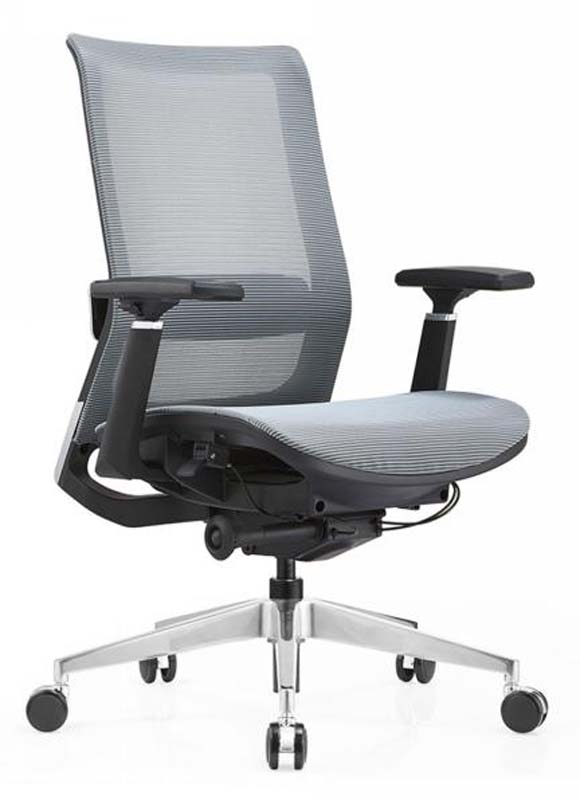

The Mid-Back Gray Mesh Swivel Task Chair with Fixed Arms and Polished Aluminum Base is an unbranded office chair designed for everyday desk work, meetings, and home-office use. Its gray mesh seat and back create a light, breathable appearance, while the black polymer frame, arm supports, and mechanism covers provide a structured contrast. The polished aluminum five-star base gives the chair a refined commercial look, and black twin-wheel casters complete its mobile, task-oriented profile. The mid-back form is paired with fixed armrests, producing an orderly silhouette suited to shared workstations and neatly arranged seating layouts. Construction combines flexible woven mesh with a black polymer outer back frame, a shaped polymer seat pan, and foam support beneath the gray mesh seat surface. The cushion uses molded polyurethane foam at a 45 kg/m3 density, with a finished seat cushion thickness of 90 mm and 40 percent rebound. The backrest includes 70 mm of padding thickness and a defined lumbar support zone. Fixed armrests use black rigid polymer pads and posts with silver decorative collars. A black steel synchro-tilt mechanism sits within polymer shrouds, supported by a chrome-plated steel gas lift, polished aluminum base, and black nylon twin-wheel casters. Functional features support standard computer-based work. The right-side lever controls pneumatic seat-height adjustment through 90 mm of travel using a Class 4 cylinder. The synchro seat-and-back tilt mechanism moves through a 24-degree recline arc and includes tension adjustment suited to users weighing up to 136 kg. The seat swivels 360 degrees, while five casters enable omnidirectional movement around the workspace. Fixed arm pads provide consistent support for keyboard tasks and meeting use, with a clear width of 540 mm between the armrests. This chair is appropriate for open-plan offices, workstation rows, meeting rooms, and home offices where breathable back support and easy swivel mobility are priorities. It is intended for users weighing up to 136 kg using standard 720 to 750 mm desks for daily computer work. Buyers should plan for assembly, allow space for two cartons per set, and consider the polished aluminum finish, fixed-arm design, mesh upholstery, and caster mobility when matching the chair to a workplace or residential interior.

Mid-Back Gray Mesh Swivel Task Chair with Fixed Arms and Polished Aluminum Base Specifications
