Product supplierBlack High-Back Mesh Ergonomic Swivel Office Chair with Headrest, Black tensioned mesh set in a black polymer outer frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

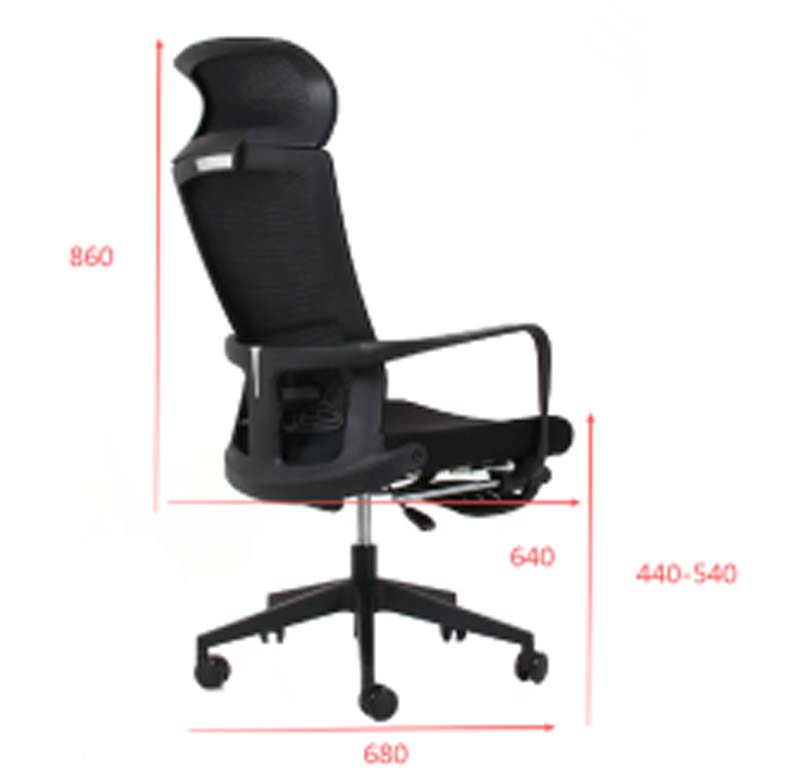

| Overall dimensions (W × D × H) | 680 × 640 × 860 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 135 kg | |
|---|---|---|
| Net weight | 17 kg | |
| Seat foam density | 45 kg/m3 | |
| Seat foam thickness | 80 mm | |
| Back mesh fabric thickness | 2.2 mm | |
| Fabric abrasion acceptance value | 50000 Martindale cycles | |
| Gas-lift stroke | 100 mm | |
| Caster rolling durability acceptance value | 100000 cycles | |
| Base static-load acceptance value | 1136 kg vertical static load | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest support | Black tensioned mesh set in a black polymer outer frame | |
|---|---|---|
| Seat cushion | Black upholstered padded seat with molded foam core | |
| Headrest | Curved black padded headrest attached to the upper back frame | |
| Armrests | Fixed black polymer loop arms with integrated side supports | |
| Central support | Chrome-finish steel gas-lift tube with black telescopic sleeve | |
| Base and casters | Black nylon five-star base with five black PU twin-wheel casters |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat-height adjustment | Pneumatic lever adjusts seat height from 440 mm to 540 mm with a 100 mm stroke | |
|---|---|---|
| Swivel movement | 360-degree swivel around the central gas-lift axis | |
| Recline function | Tilting mechanism provides an 18-degree back recline with tension control and 1 lock position | |
| Mobility | Five twin-wheel casters enable rolling movement on the 680 mm five-star base |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 720 x 660 x 420 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suits individual desks in open offices, home offices, and administrative workstations where head, back, and arm support are needed during 8-hour seated work. | |
|---|---|---|
| Task and meeting use | Suitable for task seating in meeting rooms, reception back offices, and shared workpoints because it swivels, rolls, and adjusts between 440 mm and 540 mm seat height. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
