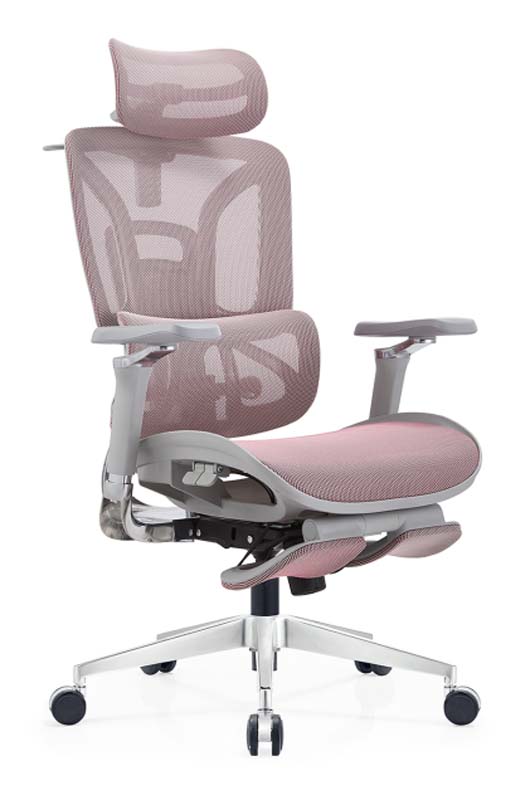

Product supplierPink Mesh Ergonomic Office Chair with Headrest and Retractable Footrest, Pink woven polyester mesh with open breathable weave
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 660 × 1290 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 21 kg | |
| Seat static-load verification target | 102 kg | |
| Backrest backward static-load target | 136 kg | |
| Caster rolling durability target | 100000 cycles | |
| Gas-lift durability target | 100000 height-adjustment cycles | |
| Seat-slide cycle target | 20000 cycles | |
| Recommended user height range | 190 cm | |
| Suggested daily usage duration | 10 hours | |
| Warranty duration | 5 years frame and 2 years wearable parts |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Back and seat upholstery | Pink woven polyester mesh with open breathable weave | |
|---|---|---|
| Back support frame | Grey glass-fibre-reinforced nylon outer frame with internal Y-shaped support ribs | |
| Seat shell | Grey contoured polymer load shell with waterfall front edge | |
| Seat cushion | High-resilience moulded foam core, 60 mm thick and 45 kg/m3 density target | |
| Lumbar support | Curved mesh-covered lumbar cushion on a height-adjustable central carrier | |
| Arm pads | Soft polyurethane pads, 20 mm thick, on grey polymer support arms |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift provides 80 mm travel through an under-seat lever, covering 540 mm seat height | |
|---|---|---|
| Backrest recline | Synchronized seat-and-back tilt reclines to 135 degrees with 4-position lock and automatic weight-brake setting | |
| Seat-depth adjustment | Forward sliding seat pan provides 50 mm depth travel to fit different thigh lengths | |
| Lumbar support | Height-adjustable lumbar pad travels 60 mm and applies centered support to the lower-back curve |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Primary workplace use | Individual workstation, executive desk or home-office setup for users requiring lumbar, head and recline support during long computer sessions | |
|---|---|---|
| Rest-and-recharge use | Footrest and 135-degree recline support short breaks in private offices, manager rooms or home workspaces |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 office chair dimensions | Applies to seat, back, clearance and anthropometric dimensional verification | |
|---|---|---|
| EN 1335-2 office chair safety | Applies to structural safety, stability and caster integrity | |
| EN 1335-3 office chair test methods | Applies to static load, fatigue and rolling test procedures | |
| EN 1022 seating stability | Applies to upright and reclined stability validation |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 office chairs - backrest strength | Applies a 136 kg back static-force acceptance target to the framed back |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 furniture mechanical stability | Applies to chair tipping stability on level floors during procurement testing | |
|---|---|---|
| GB/T 10357.3 furniture strength and durability | Applies to seat, back and arm static, impact and fatigue tests | |
| GB 17927 furniture anti-dumping structure | Applies if folding or finger-access structures are present in the footrest mechanism |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2 furniture mechanical stability: Applies to chair tipping stability on level floors during procurement testing; 2. GB/T 10357.3 furniture strength and durability: Applies to seat, back and arm static, impact and fatigue tests; 3. GB 17927 furniture anti-dumping structure: Applies if folding or finger-access structures are present in the footrest mechanism; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
