PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 1320 × 1230 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	18 kg
Seat foam density	45 kg/m³
Back mesh tensile load reference	120 kgf
Gas lift vertical stroke	80 mm
Backrest recline angle	135 degrees
Footrest extension travel	420 mm
Recommended daily use duration	8 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Gray breathable woven mesh stretched over a contoured polymer frame
Seat cushion	Molded polyurethane foam pad with gray fabric or mesh-faced front band
Headrest	Curved padded cushion with gray mesh face and polymer outer shell
Armrests	Gray molded polymer fixed arm supports with flat soft-touch pads
Mechanism	Black steel-and-polymer synchro-tilt mechanism beneath the seat
Base and gas lift	Gray molded five-star base with black gas-lift sleeve and polished inner column

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through an 80 mm stroke for 540 mm desk heights.
Recline and lock	Synchro-tilt mechanism allows the back to recline to 135 degrees with a lockable upright working position.
Retractable leg rest	Padded footrest slides out on chrome rails with 420 mm travel and tucks beneath the seat when unused.
Headrest positioning	Curved headrest provides 80 mm vertical adjustment and pivot support for reclined neck posture.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	1 flat-packed carton
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for desks 760 mm high where users need adjustable seat height, swivel access, and lumbar support.
Manager or home-office reclining use	Suitable for long computer tasks and short reclined breaks because the chair includes a headrest and extended footrest.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-FR-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-FR-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-FR-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

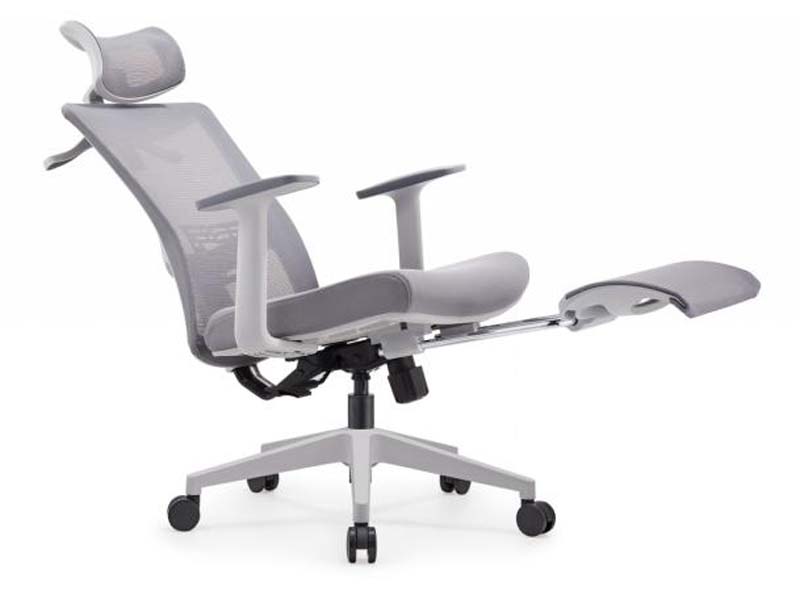

The Gray Mesh Ergonomic Reclining Office Chair with Retractable Footrest combines task-chair support with a relaxed reclining setup for modern office and home environments. Its high-back form uses a gray breathable woven mesh backrest stretched over a contoured polymer frame, creating a structured, ventilated profile. A curved headrest with a gray mesh face and polymer shell crowns the chair, while a padded lumbar zone supports the lower back. The molded foam seat is upholstered with gray fabric or a mesh-faced front band, and fixed gray polymer armrests with flat soft-touch pads frame the seating area. A gray molded five-star base, polished gas-lift column, black sleeve, and black twin-wheel casters complete the mobile office silhouette. Construction balances cushioned comfort with exposed functional hardware. The seat cushion uses molded polyurethane foam with a 90 mm finished thickness, paired with a 70 mm padded backrest section and a 240 mm high lumbar support zone. Beneath the seat is a black steel-and-polymer synchro-tilt mechanism, connected to the five-star base and gas lift. When the leg rest is extended, the chair has a pronounced reclined layout; when stored, the padded footrest and chrome telescopic rails tuck neatly beneath the seat, preserving a conventional workstation appearance. The clear width between armrests is 540 mm. Everyday adjustment is designed around both focused work and short breaks. A pneumatic lever controls seat height through an 80 mm stroke, supporting use at standard desk heights and providing swivel access. The synchro-tilt mechanism lets the backrest recline to 135 degrees and includes a lockable upright working position. The footrest slides out on chrome rails with 420 mm of travel, while the headrest offers 80 mm of vertical adjustment and pivot support for reclined neck posture. The chair is rated for a recommended user weight capacity of 150 kg. This model is well suited to private offices, manager workstations, home offices, and personal computer rooms where users spend long periods at a desk but also want the option to recline briefly. It fits commercial work settings that prioritize lumbar support, mobility, and adjustable posture, as well as residential workspaces seeking a chair that can transition from task use to rest.

Gray Mesh Ergonomic Reclining Office Chair with Retractable Footrest Specifications
