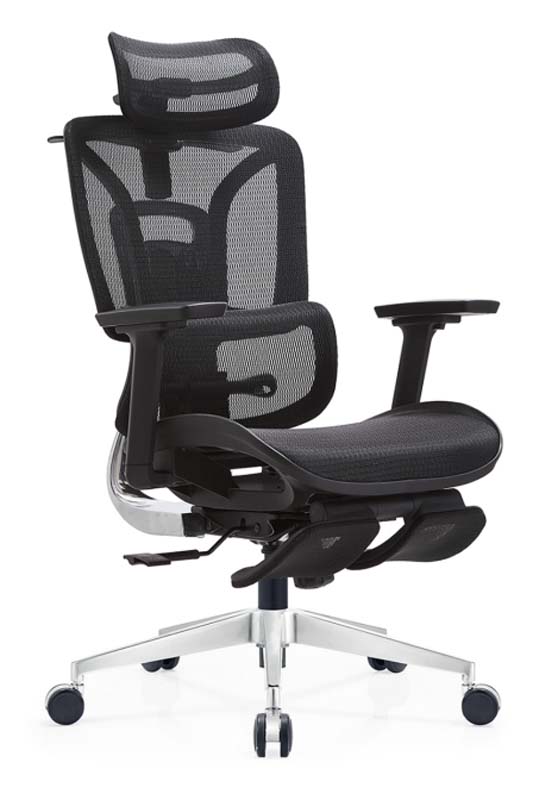

Name: Black Mesh Ergonomic Office Chair with Headrest and Sliding Footrest
Brand: FENGGUAN
SKU: XL5GV7

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Maximum user weight	150 kg
Chair net weight	22 kg
Seat foam density	45 kg/m3
Back mesh static tension load	150 kg
Gas lift vertical travel	90 mm
Tilt lock positions	4 positions
Recommended daily use duration	8 hours
Caster rolling durability target	100000 cycles
Seat static load acceptance target	102 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Black woven mesh or mesh-textured fabric over molded cushioning
Backrest and headrest mesh	Black tensioned mesh set in black polymer outer frames
Seat cushion	Molded polyurethane foam with a contoured waterfall front edge
Internal structural frame	Glass-fiber-reinforced polypropylene seat shell with steel reinforcement plates
Back frame	Matte black polymer frame with curved internal support ribs and central lumbar bridge
Arm assemblies	Height-adjustable black polymer arm posts with padded rectangular arm caps

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever adjusts seat height from 450 to 540 mm through 90 mm travel for seated desk use
Synchronized recline	Backrest reclines to 135 degrees while the seat tilts with the mechanism to reduce thigh pressure
Tilt locking and tension	Four-position lock secures common work and recline postures, with adjustable tension for body weight
Adjustable headrest	Curved mesh headrest provides neck support and is mounted on a height-and-angle adjustable bracket

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workplace	Open-plan offices, workstation benches and home offices where 8-hour seated support and recline adjustment are required
Reclined task use	Suitable for short reading or phone-call breaks because the chair includes a 135-degree recline and extendable under-seat footrest

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMH-RC-700-BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMH-RC-700-BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMH-RC-700-BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The FENGGUAN EMH-RC-700-BLK is a black high-back ergonomic office chair designed for users who want structured seating support together with a reclined resting option. Its visual character is defined by a coordinated matte-black finish, tensioned mesh surfaces, a contoured high back, a curved headrest, padded rectangular arm caps, and a polished aluminum base fitted with twin-wheel casters. The sliding footrest is stored beneath the seat, preserving a clean task-chair appearance when not in use. Overall dimensions are 680 by 680 by 1290 mm, with a clear armrest width of 540 mm. The seat uses black woven mesh or mesh-textured fabric over molded polyurethane cushioning. The cushion is 90 mm thick, uses 45 kg/m3 foam, and has a contoured waterfall front edge intended to support the thighs during desk work. Its internal seat shell is made from glass-fiber-reinforced polypropylene with steel reinforcement plates. The 70 mm padded backrest and headrest use black tensioned mesh set in black polymer frames. The back frame incorporates curved support ribs and a central lumbar bridge, with a 240 mm high lumbar support zone. Height-adjustable black polymer arm assemblies complete the seating structure. Functionally, the chair supports a full working range through pneumatic seat-height adjustment from 450 to 540 mm, giving 90 mm of vertical travel. A synchronized recline mechanism allows the backrest to move to 135 degrees while the seat tilts in coordination, helping reduce pressure on the thighs. Four tilt-lock positions secure selected work or recline postures, and tilt tension can be adjusted to suit body weight. The curved mesh headrest is height- and angle-adjustable for neck support, while the extendable under-seat footrest makes the reclined position more suitable for short reading or phone-call breaks. The chair is rated for a maximum user weight of 150 kg and recommended for up to 8 hours of daily use. This model is appropriate for open-plan offices, workstation benches, executive or focus seating, and home offices where long-duration support and occasional recline are required. It also works well in private offices and residential workspaces that need a professional, understated look. Procurement teams should note that each set ships in two cartons, with packaged gross weight of 23 kg and carton volume of 0.26 cubic meters. The indicative assembly time is 40 minutes per set, and container planning can accommodate 135 sets in a 20GP arrangement at 85 percent space utilization. Buyers should also confirm floor surface compatibility for the twin-wheel casters, intended assembly responsibility, and whether headrest, arm, lumbar, and footrest features match end-user expectations.
