PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	640 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user body weight capacity	120 kg
Net weight	14.5 kg
Seat foam density	35 kg/m3
Back support static load	136 kg
Base static load target	1136 kg
Caster rolling durability target	100000 cycles
Gas-lift cycling durability target	100000 height-adjustment cycles
Seat-front edge loading	75 kg per front edge
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Blue woven flexible mesh in a black molded polymer frame
Seat cushion	Black upholstered molded foam pad with rounded waterfall front
Arm assembly	Black molded fixed T-arms with flat polymer pads and vertical support posts
Back support yoke	Black curved polymer or steel-reinforced bracket connecting backrest to seat mechanism
Height cylinder	Chrome-plated steel gas lift with black telescopic plastic shroud
Seat mechanism	Black steel tilt plate under the seat with one visible operating lever

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic cylinder raises the seat through a 100 mm stroke using the right-side lever, from 440 to 540 mm.
Swivel movement	Gas-lift swivel enables 360-degree rotation while the five caster points keep the chair centered.
Recline operation	Under-seat tilt mechanism allows 19-degree back travel from 93 to 112 degrees and uses a tension knob for resistance.
Mobility and support	Five 60 mm twin-wheel casters provide rolling movement, while fixed T-arm pads offer upper-limb support without width or height adjustment.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	660 x 630 x 330 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstations	Suits open-plan desks, computer workstations and administrative seating where breathable back support and compact mobility are required.
Meeting and study areas	Fits conference rooms, home offices and training positions that need swivel access, fixed arm support and easy rolling movement.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-MB-MESH-FA-BLKBLU

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-MB-MESH-FA-BLKBLU

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-MB-MESH-FA-BLKBLUOpen Export Tool

Quick Actions

Post an RFQ

Product Description

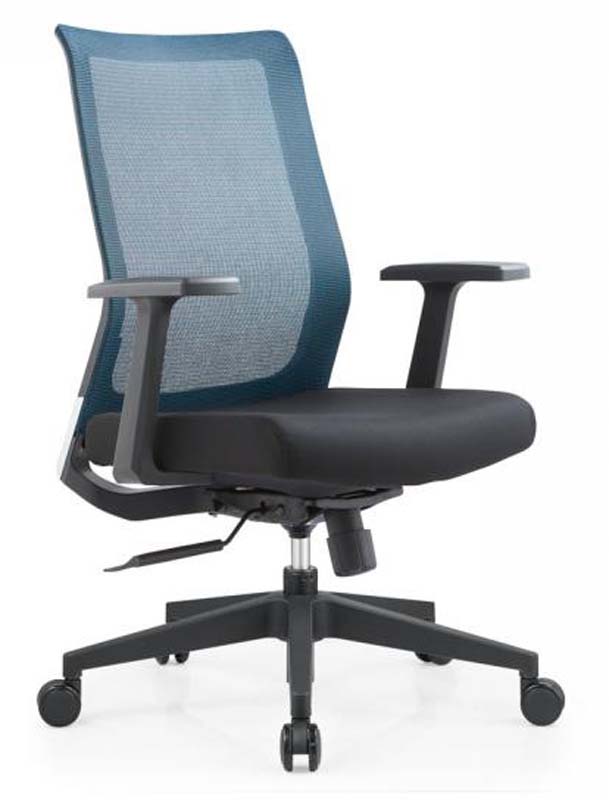

The Mid-Back Mesh Swivel Task Chair with Fixed Arms is an unbranded office chair designed for practical daily seating in workstation, meeting, study and home-office settings. Its model is OFC-MB-MESH-FA-BLKBLU, presented in a blue and black color treatment that combines a breathable mesh back with a contrasting padded seat and black support components. Visually, the chair uses a mid-height backrest framed in black molded polymer, with blue woven flexible mesh forming the central support surface. The black upholstered seat has a rounded waterfall front and a molded foam cushion, while black fixed T-arms provide a structured, uncluttered side profile. A five-star nylon base, twin-wheel casters and chrome-plated gas lift with a black telescopic shroud complete the familiar task-chair form. The overall dimensions are 640 x 620 x 1010 mm, with a 540 mm clear width between the armrests. Construction balances comfort and utility. The seat cushion is 90 mm thick and uses 35 kg/m3 foam, while the backrest includes a 70 mm padded dimension and a 240 mm lumbar support zone. The back is connected to the seat mechanism by a curved polymer or steel-reinforced yoke, and height adjustment is handled by a chrome-plated steel gas lift. Under the seat is a black steel tilt plate with one visible operating lever, along with a tension control for recline resistance. The armrests are black molded fixed T-arms with flat polymer pads and vertical support posts; they do not adjust in height or width. Primary functions support flexible desk use. A right-side lever operates pneumatic seat-height adjustment through a 100 mm stroke, setting seat height from 440 to 540 mm. The gas-lift center enables 360-degree swivel movement, while the five-point base helps keep the chair centered during rotation. The tilt mechanism allows 19 degrees of back travel, from 93 to 112 degrees, and the tension knob lets users modify recline resistance. Five 60 mm twin-wheel casters provide rolling mobility across typical office seating arrangements. The suggested user body weight capacity is 120 kg, and the chair itself has a net weight of 14.5 kg. This model is well suited to open-plan office desks, computer workstations, administrative seating, conference rooms, training positions, study areas and home offices. It is especially appropriate where breathable back support, compact rolling movement, swivel access and fixed arm support are priorities. For procurement, buyers should note that fixed arms simplify the design but cannot be tailored to individual shoulder width or desk height. Planning should allow for assembly, with a reference time of 40 minutes per set. The product is supplied as one set in two cartons, with a reference packaged gross weight of 23 kg per set and reference carton volume of 0.26 m3 per set. Delivery and storage planning should use the stated packaging details rather than the chair’s assembled footprint alone.

Mid-Back Mesh Swivel Task Chair with Fixed Arms Specifications
