PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1260 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	21 kg
Back tilt range	120degrees
Gas-lift height cycle target	100,000 cycles
Caster rolling durability target	100,000 cycles
Back frame pull-back target	136 kg
Recommended user height range	1900 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Grey flexible mesh stretched over a contoured silver metal back frame
Seat cushion	Green woven fabric over 80 mm molded foam on a load-bearing seat shell
Headrest	Grey mesh-faced curved cushion with black or grey molded support housing
Arm pads	Black polyurethane contact pads mounted on height-adjustable silver supports
Internal frame	3.0 mm steel plate and 18 mm molded polymer seat shell as procurement specification
Lift and base	50 mm class-4 gas lift with polished aluminum-alloy five-star base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift through a 90 mm stroke using a side lever and 50 mm class-4 cylinder
Back recline	Synchro-tilt mechanism reclines from 93 to 120 degrees with seat-to-back ratio selected for continuous lumbar contact
Position locking	Three-position tilt lock with rear tension knob for user-weight adjustment
Arm adjustment	Height-adjustable arms provide 70 mm vertical movement and soft polyurethane pads for forearm support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	860 x 660 x 380 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workspace	Executive, managerial and professional workstations requiring 540 mm seat height and full-back support
Shared office setting	Open-plan offices, meeting rooms and home offices for users from 1600 to 1900 mm tall

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 office seating dimensions	Verify seat, back, clearance and adjustment dimensions against office-work chair dimensional requirements
EN 1335-2 office seating safety	Verify structural safety, stability, mechanism locks and caster integrity under intended use
EN 1335-3 office seating test methods	Use specified static, fatigue and impact test methods for back, seat, arms and base
EN 1022 seating stability	Apply forward, rearward and sideways stability tests on hard level flooring

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.11 office chairs	Use back, seat, arm, base, caster and cyclic load tests for general-purpose office seating
ANSI/BIFMA X5.1 caster durability	Applicable standards and test results require confirmation

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 furniture strength and durability	Apply back-strength and durability test methods to the chair back and tilt linkage
GB/T 10357.2 furniture stability	Apply rearward and lateral stability testing with the high-back and headrest loading condition
GB 17927 furniture safety performance	Use seating safety requirements for edges, moving parts and structural entrapment review
GB/T 24430.2 office furniture quality tests	Use office-chair inspection criteria for dimensions, stability, mechanisms and finish durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 furniture strength and durability: Apply back-strength and durability test methods to the chair back and tilt linkage;
2. GB/T 10357.2 furniture stability: Apply rearward and lateral stability testing with the high-back and headrest loading condition;
3. GB 17927 furniture safety performance: Use seating safety requirements for edges, moving parts and structural entrapment review;
4. GB/T 24430.2 office furniture quality tests: Use office-chair inspection criteria for dimensions, stability, mechanisms and finish durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-MESH-HB-GN-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-MESH-HB-GN-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-MESH-HB-GN-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

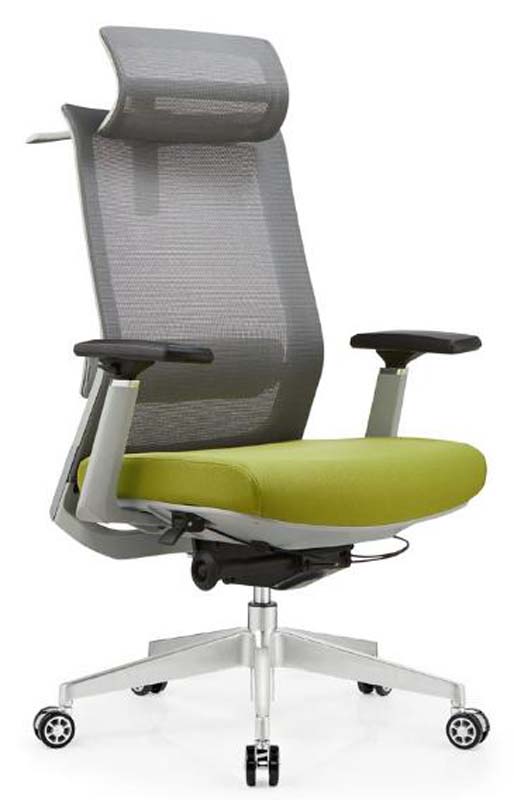

The ERC-MESH-HB-GN-01 is an unbranded high-back ergonomic executive chair designed for workstations that call for structured support, adjustable seating, and a polished professional appearance. Its tall grey mesh backrest follows a contoured silver metal frame, creating an open visual profile while supporting full-back contact. The green woven-fabric seat cushion contrasts with the grey mesh, while the curved mesh-faced headrest, black polyurethane arm pads, silver frame, and polished aluminum five-star base complete the executive styling. Dual-wheel casters keep the chair mobile across typical office settings. With overall dimensions of 680 x 680 x 1260 mm, the chair provides a 540 mm clear width between armrests, a 90 mm finished cushion thickness, 70 mm of backrest padding, and a 240 mm lumbar support zone. Construction combines a grey flexible mesh back, green upholstered cushion, load-bearing seat shell, silver painted metal structure, polished aluminum-alloy base, and black arm-contact surfaces. The specified internal build uses a 3.0 mm steel plate and an 18 mm molded polymer seat shell. The cushion is formed with an 80 mm molded foam core under green woven fabric. A 50 mm class-4 gas lift connects the seat to the five-star base, and the dual-wheel caster arrangement supports swivel movement. Functional adjustment is centered on extended comfort during desk work. A side lever controls pneumatic seat-height movement through a 90 mm stroke. The synchro-tilt mechanism allows the back to recline from 93 to 120 degrees, using a seat-to-back ratio intended to maintain continuous lumbar contact. Users can select from three tilt-lock positions and turn the rear tension knob to match recline resistance to body weight. The arms move through 70 mm of vertical adjustment and use soft polyurethane pads for forearm support. The chair is suited to executive offices, managerial workstations, professional private offices, open-plan work areas, meeting rooms, and home offices. It is intended for users from 1600 to 1900 mm tall, with a recommended user weight capacity of 150 kg. Procurement planning should account for delivery as one set packed in two cartons, with a packaged gross weight of 23 kg per set, reference carton volume of 0.26 cubic meters per set, and a reference assembly time of 40 minutes per set. The headrest housing may be supplied in black or grey molded support housing, so buyers should confirm finish consistency when coordinating a fleet of chairs.

High-Back Mesh Ergonomic Executive Chair with Headrest and Green Cushion Specifications
