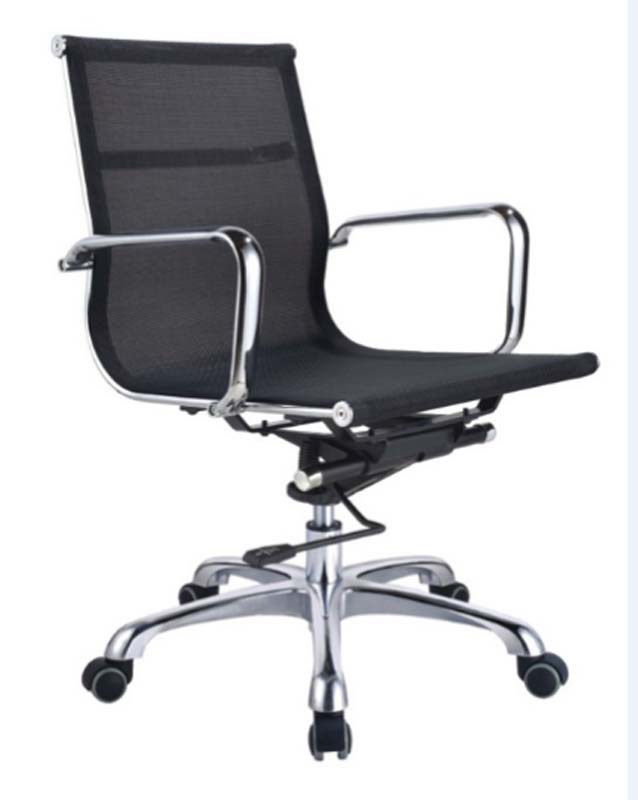

Product supplierBlack Mesh Mid-back Swivel Office Task Chair with Chrome Frame, Black flexible mesh stretched within a polished chrome perimeter frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 585 × 610 × 980 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 14.5 kg | |
|---|---|---|
| Recommended user weight capacity | 136 kg | |
| Static vertical load verification target | 102 kg for 1 hour | |
| Seat impact durability target | 100,000 cycles | |
| Backrest cyclic load target | 120,000 cycles | |
| Caster rolling durability target | 100,000 cycles on hard-floor test surface | |
| Gas lift cycles | 100,000 height-adjustment cycles | |
| Seat foam density | 45 kg/m3 molded polyurethane | |
| Seat foam rebound | 40% | |
| Suggested user height range | 160 to 190 cm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest | Black flexible mesh stretched within a polished chrome perimeter frame | |
|---|---|---|
| Seat | Black upholstered pad over polyurethane foam with a reinforced plywood or composite seat board | |
| Frame and arm supports | 25 mm diameter polished chrome tubular steel forming continuous side and arm loops | |
| Metal finish | Polished chrome plating on exposed frame, base, and gas-lift shroud | |
| Base | Polished aluminum alloy or chrome-plated steel five-star base | |
| Casters | Black nylon twin-wheel casters with steel mounting stems |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic lever raises and lowers the seat through a 100 mm stroke from 440 to 540 mm | |
|---|---|---|
| Swivel | 360-degree swivel around the gas-lift center axis | |
| Backrest recline | Synchro-style tilt mechanism allows back movement to 118 degrees with linked seat movement | |
| Tilt tension | Front tension knob adjusts recline resistance for user weight and preference |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Carton dimensions | 680 x 620 x 330 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Workstation and executive desk use | Suitable for open-plan desks, private offices, and meeting workpoints because it combines swivel mobility, lumbar-height support, and compact 585 mm width | |
|---|---|---|
| Conference and visitor task areas | Appropriate for conference rooms or hot-desking zones where a breathable black mesh back and chrome commercial appearance are required |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 applicability | Recommended European dimensional and safety reference for office task chairs | |
|---|---|---|
| EN 1335-2 applicability | Recommended safety, stability, and structural strength requirement for office work chairs | |
| EN 1335-3 applicability | Recommended test methods for static load, durability, and impact verification | |
| EN 1022 applicability | Recommended seating stability test reference for forward and rearward tipping checks |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 Office Chairs applicability | Recommended commercial office-chair standard for safety, strength, durability, and dimensional verification |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357 applicability | Recommended test framework for furniture mechanical strength and stability of seating | |
|---|---|---|
| GB 18584 applicability | Recommended indoor-furniture limit for formaldehyde emission on wood-composite seat components |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357 applicability: Recommended test framework for furniture mechanical strength and stability of seating; 2. GB 18584 applicability: Recommended indoor-furniture limit for formaldehyde emission on wood-composite seat components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
