PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	22 kg
Tilt lock range	135degrees
Seat height load rating	150 kg static load
Five-star base static load	500 kg
Caster rolling durability	100000 cycles
Gas lift cycle rating	100000 height-adjustment cycles
Fabric abrasion acceptance	30000 Martindale cycles
Color options	1 visible color
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Grey flexible mesh over a black polymer seat rim, providing ventilated weight distribution
Backrest upholstery	Grey mesh tensioned within a black framed high-back structure with internal support bands
Headrest	Grey mesh pad attached to a black adjustable bracket and curved support frame
Armrests	Black molded arm posts with flat polymer pads and visible side pivot hardware
Seat mechanism	Black metal-and-polymer synchro-tilt mechanism with side lever and tension control
Base and lift	Polished five-star aluminum base around a chrome-finish steel gas lift

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchro-tilt recline	Back and seat move in a synchronized ratio through 135 degrees, with four lock positions controlled at the underside
Height adjustment	Pneumatic lever raises the seat from 460 to 540 mm while supporting a 150 kg user
Headrest positioning	Curved mesh headrest moves through 80 mm vertically and pivots 30 degrees to support the neck in recline
Footrest deployment	Two-section mesh footrest folds out 360 mm from under the seat and tucks away when not in use

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to long desk-based work because the high mesh back, headrest, adjustable arms and lumbar zone provide multi-zone support
Reclining rest or short-break use	The fold-out footrest and 135-degree recline support temporary reclined rest in private offices or home workspaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-OH-FR-GRY-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-OH-FR-GRY-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-OH-FR-GRY-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

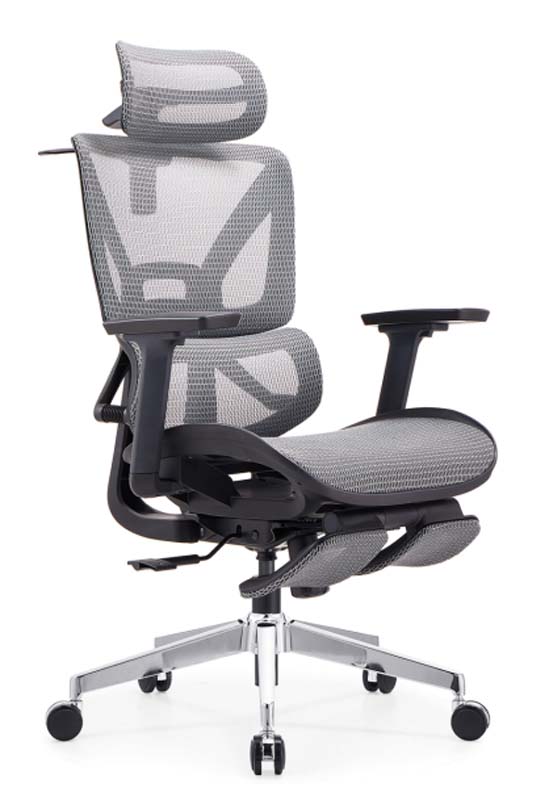

The Ergonomic Full-Mesh Reclining Office Chair with Headrest and Fold-Out Footrest is an unbranded high-back task and rest chair suited to users who want supported seated work and a temporary reclined position in the same piece. Model EM-OH-FR-GRY-01 presents a grey mesh seat, backrest and headrest against black polymer arm and mechanism components, with a polished aluminum five-star base, chrome-finished steel gas lift and black twin-wheel casters. Its visual character is functional and contemporary: breathable mesh defines the main body, while the metallic base gives the chair a refined commercial finish. The high-back structure uses grey mesh tensioned within a black frame, with internal support bands and a defined lumbar support zone. The seat combines flexible mesh over a black polymer rim for ventilated weight distribution, with a finished cushion thickness of 90 mm, while the backrest padding thickness is 70 mm. A curved mesh headrest is mounted on a black adjustable bracket and support frame. The black molded arm posts carry flat polymer pads, and visible side pivot hardware reinforces the chair’s adjustable appearance. Overall dimensions are 680 x 680 x 1280 mm, with 540 mm of clear width between the armrests. Operation is centered on a black metal-and-polymer synchro-tilt mechanism with a side lever and tension control. The back and seat move together through 135 degrees and can be secured in four lock positions from controls under the seat. Pneumatic height adjustment raises the seat from 460 to 540 mm, while the headrest moves 80 mm vertically and pivots 30 degrees for neck support during recline. A two-section mesh footrest folds out 360 mm from beneath the seat and tucks away when not needed, preserving a conventional workstation profile. This model fits private offices, focused workstation settings, executive desks and home offices where long desk-based work and occasional short breaks occur in one space. The high mesh back, headrest, arm support, lumbar zone and recline mechanism make it appropriate for users seeking multi-position support without moving to separate lounge furniture. Procurement teams should note the 150 kg recommended user weight capacity, 22 kg net weight, 500 kg five-star base static load rating, 150 kg static seat-height load rating, and 100,000-cycle ratings for both caster rolling durability and gas-lift height adjustment. Each set ships in two cartons with a packaged gross weight of 23 kg, carton dimensions of 850 x 420 x 720 mm, 0.26 cubic metres of carton volume and a reference assembly time of 40 minutes. The indicative 20GP loading is 135 sets at 85 percent space utilization, useful for freight and inventory planning.
