PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Seat foam thickness	80 mm
Seat foam density	45 kg/m3
Back mesh tensile support rating	120 kg
Gas lift class	Class 4
Base static load rating	1136 kg
Caster rolling durability	100000 cycles
Seat-slide durability	50000 cycles
Back recline cycle durability	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Gray breathable woven mesh stretched over a molded polymer outer frame
Seat cushion	Dark gray fabric-faced cushion over high-resilience polyurethane foam
Seat shell and mechanism cover	Light gray molded polymer structural shell with integrated side brackets
Armrests	Height-adjustable polymer arms with flat dark gray soft-touch pads
Headrest	Curved mesh panel on a polymer cushion carrier with vertical support stem
Base and lift	Polished aluminum five-star base with chrome-plated steel gas-lift tube

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat over an 80 mm stroke through the chrome gas lift
Synchronized recline	Back frame reclines to 135 degrees with coordinated seat tilt and tension control for reclined working or rest
Seat depth adjustment	Under-seat slide provides 50 mm of seat-depth travel to fit different thigh lengths
Retractable footrest	Pull-out leg support deploys forward and flips upward for reclined resting, then stores below the seat

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suits daily 8-hour computer work with adjustable lumbar-position mesh, movable seat, arm support, and swivel mobility
Private office or home office	Fits users requiring recline and a pull-out footrest for short breaks without using a separate lounge chair

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office chair safety and structural applicability	EN 1335:2000
Office furniture fire test applicability	EN 1021:2014
Formaldehyde panel testing applicability	EN 717:2004

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office chair structural applicability	ANSI/BIFMA X2017
Low-emission furniture applicability	ANSI/BIFMA e2019e

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office chair safety applicability	GB/T 28004.1
Furniture mechanical testing applicability	GB/T 10357.2
Furniture durability testing applicability	GB/T 10357.3
Upholstered furniture chemical applicability	GB/T 26677

Standardized tender description text

This product must meet the following technical requirements:
1. Office chair safety applicability: GB/T 28004.1;
2. Furniture mechanical testing applicability: GB/T 10357.2;
3. Furniture durability testing applicability: GB/T 10357.3;
4. Upholstered furniture chemical applicability: GB/T 26677;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-MESH-GRY-FT01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-MESH-GRY-FT01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-MESH-GRY-FT01Open Export Tool

Quick Actions

Post an RFQ

Product Description

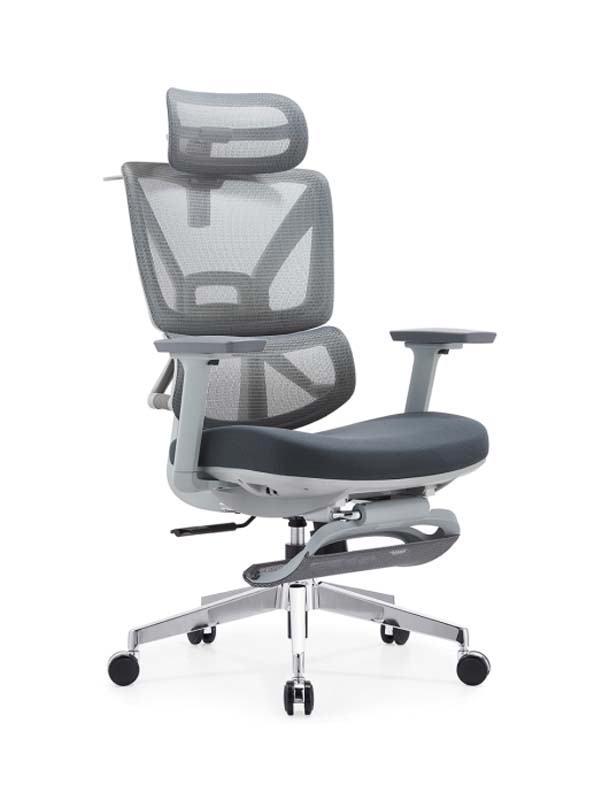

The Gray Mesh Ergonomic Office Chair with Headrest and Footrest, model ERC-MESH-GRY-FT01, combines a supportive task-seating profile with recline and rest functions for commercial or residential workspaces. It is an unbranded ergonomic office chair with a tall mesh back, upholstered seat, integrated arm support, adjustable headrest, five-star base, and a retractable footrest stored beneath the seat. Its restrained gray palette and polished aluminum base give it a clean, professional appearance suited to modern offices and home studies. Visually, the chair is defined by a gray breathable woven mesh back stretched over a molded polymer outer frame. The dark gray fabric-faced seat sits within a light gray molded polymer shell with integrated side brackets, while matching height-adjustable polymer arms carry flat dark gray soft-touch pads. A curved mesh headrest is mounted on a polymer cushion carrier and vertical support stem. The polished aluminum five-star base, chrome-plated steel gas-lift tube, and black nylon casters complete the streamlined layout. Construction balances comfort and structure. The finished cushion is 90 mm thick and uses high-resilience polyurethane foam with 45 kg/m3 foam density, while the backrest padding is 70 mm thick and includes a 240 mm high lumbar support zone. The clear width between armrests is 540 mm. The chair is rated for a recommended user weight of 150 kg, with a Class 4 gas lift, 1136 kg base static load rating, 120 kg back mesh tensile support rating, and casters tested to 100000 rolling cycles. Functionally, a pneumatic lever provides 80 mm of seat-height travel. The synchronized recline mechanism allows the back frame to recline to 135 degrees with coordinated seat tilt and tension control. A 50 mm under-seat seat-depth adjustment helps accommodate different thigh lengths. The pull-out footrest deploys forward and flips upward for reclined resting, then stores below the seat when not needed. This model is appropriate for open-plan office workstations, where users need lumbar-position mesh support, adjustable seating, arm support, recline, and swivel mobility during daily computer work. It is also suitable for private offices or home offices where short breaks are desired without adding a separate lounge chair. Procurement teams should note that each set ships in two cartons with a packaged gross weight of 23 kg and reference assembly time of 40 minutes. A 20GP container can accommodate 135 sets at 85 percent space utilization, making planning for receiving, assembly, and replacement casters worthwhile.
