PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	670 × 680 × 1230 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Static vertical seat load verification target	1136 kg
Caster rolling durability target	100000 cycles
Gas lift cycles target	100000 height-adjustment cycles
Backrest dynamic load cycles target	120000 cycles
Seat foam density	45 kg/m3 molded polyurethane foam
Back mesh load rating	150 kg user load across back and lumbar zone
Seat surface abrasion acceptance	50000 Martindale cycles
Net weight reference	21 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Tensioned light-blue mesh over a black contoured polymer back frame
Seat upholstery	Light-blue mesh or woven fabric cover over molded polyurethane foam cushion
Seat inner support	8 mm molded plywood or glass-fiber reinforced polymer seat shell
Armrests	Black injection-molded polymer height-adjustable arms with soft polymer pads
Syncro mechanism	Black steel-and-polymer multifunction tilt mechanism with tension knob and adjustment levers
Gas lift	Black-coated steel gas lift with 50 mm outer column

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift provides 80 mm travel through a right-side lever, supporting 530 mm seat heights
Recline and lock	Synchronized seat-and-back tilt offers 18 degrees back travel and multi-position lock selection
Tension control	Rear-facing round knob adjusts recline resistance for user weight and leaning force
Armrest adjustment	Vertical arm posts provide 70 mm height adjustment and fixed horizontal pad orientation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	880 x 660 x 380 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive and managerial workstations	Suitable for daily 8-hour desk work because the high mesh back, padded seat, armrests, and lumbar contour support seated tasks
Shared professional office environments	Suited to conference, administration, and computer work areas requiring swivel mobility, recline control, and hard-floor casters

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 office furniture seating dimensions	Applies to seat-height, seat-depth, clearance, and dimensional suitability checks
EN 1335-2 office chair safety requirements	Applicable standards and test results require confirmation
EN 1335-3 office chair test methods	Applies to static load, fatigue, and impact verification procedures

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 office chairs	Applies to strength, stability, durability, back force, and caster testing for general office seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 furniture strength and durability	Applies to chair seat and back static and fatigue testing during procurement inspection
GB/T 3324 general technical furniture specification	Applies to dimensional stability, finish, hardware, and workmanship acceptance
GB 17927 upholstered furniture safety	Applies if the cushion uses combustible upholstery foam and fabric components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 furniture strength and durability: Applies to chair seat and back static and fatigue testing during procurement inspection;
2. GB/T 3324 general technical furniture specification: Applies to dimensional stability, finish, hardware, and workmanship acceptance;
3. GB 17927 upholstered furniture safety: Applies if the cushion uses combustible upholstery foam and fabric components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · HB-MESH-EXEC-CHR-LBL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · HB-MESH-EXEC-CHR-LBL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · HB-MESH-EXEC-CHR-LBLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

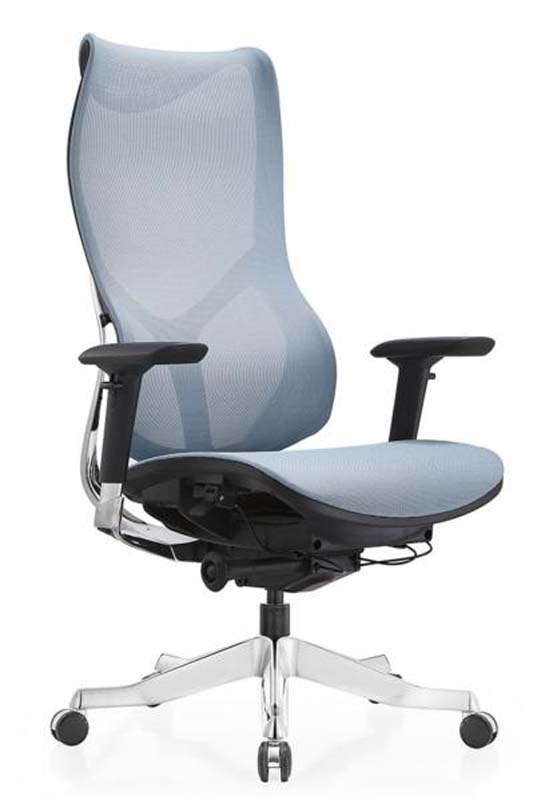

The High-Back Mesh Executive Ergonomic Office Chair presents a professional executive silhouette with a tall contoured backrest, cushioned seat, height-adjustable armrests, and a polished aluminum five-star base. Its light-blue tensioned mesh creates a distinct contrast against the black polymer back frame, armrests, mechanism, and coated steel gas lift, while the coordinated mesh or woven-fabric seat cover gives the chair a clean, modern appearance suited to private offices and shared professional settings. The high-back layout incorporates a defined lumbar support zone, padded arm surfaces, and a central tilt mechanism, producing a balanced look between breathable task seating and executive comfort. Construction centers on a molded polyurethane foam seat cushion with a finished thickness of 90 mm and a 45 kg/m3 foam density. The cushion rests on an 8 mm molded plywood or glass-fiber reinforced polymer shell. The backrest uses tensioned mesh over a contoured polymer frame, with backrest padding specified at 70 mm and a mesh load rating supporting a 150 kg user load across the back and lumbar zone. Black injection-molded polymer arms include soft polymer pads, while the black steel-and-polymer multifunction synchro mechanism provides tilt control through accessible levers and a tension knob. Mobility is supported by twin-wheel casters on the polished aluminum base. Pneumatic seat-height adjustment offers 80 mm of travel through a right-side lever and supports a 530 mm seat height. The synchronized seat-and-back tilt allows 18 degrees of back travel with multi-position locking, and the rear-facing round knob adjusts recline resistance to suit user weight and leaning force. Armrest posts adjust vertically through 70 mm, while pad orientation remains fixed. Swivel movement, caster mobility, and recline control make the chair appropriate for executive and managerial workstations used for daily desk work, as well as conference rooms, administrative areas, computer workspaces, and other shared professional office environments. It can also serve residential workrooms or home offices where a higher-spec task chair is desired. The recommended user weight capacity is 150 kg. Procurement planning should account for the chair's 670 x 680 x 1230 mm footprint and the 540 mm clear width between armrests when checking desk clearance. The product is unbranded and supplied as one set in two cartons, with a packaged gross weight of 23 kg per set and a reference assembly time of 40 minutes. Buyers should also verify floor type, delivery access, assembly responsibility, and upholstery preference between the available light-blue mesh or woven fabric seat cover.

High-Back Mesh Executive Ergonomic Office Chair Specifications
