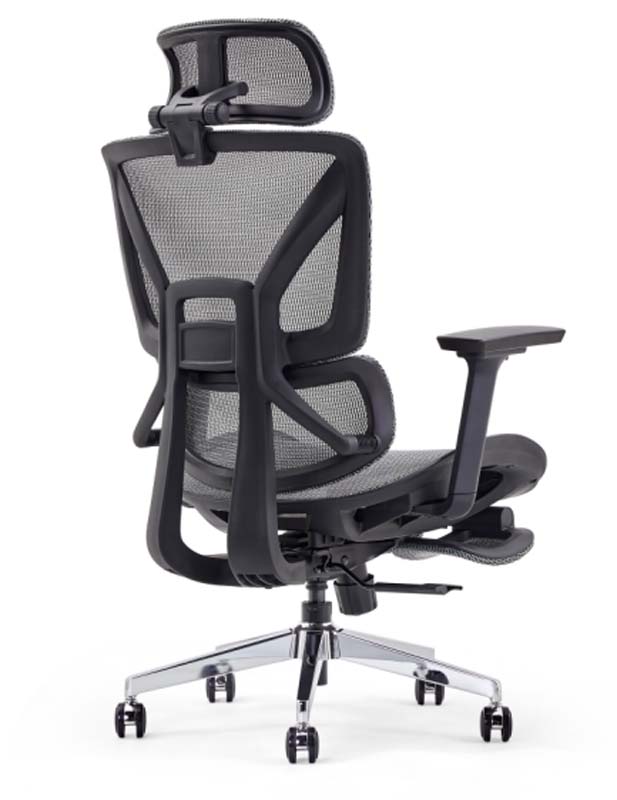

Product supplierMesh Ergonomic Office Chair with Adjustable Headrest and Chrome Base, Grey flexible polymer mesh stretched in a black engineered-resin perimeter frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 680 × 1290 mm | |
|---|---|---|
| Overall chair footprint | 680 x 680 x 1290 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 18.5 kg | |
| Static seat verification load | 680 kg | |
| Caster rolling durability | 100000 cycles | |
| Gas-lift cycles | 100000 height-adjustment cycles | |
| Seat tilt mechanism rating | 150 kg | |
| Backrest cyclic durability | 120000 cycles | |
| Recommended user height range | 160 to 190 cm | |
| Foam density target | 45 kg/m3 | |
| Foam resilience target | 40% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest mesh | Grey flexible polymer mesh stretched in a black engineered-resin perimeter frame | |
|---|---|---|
| Seat upholstery | Grey mesh layer over a contoured padded cushion with black molded side pan | |
| Internal seat board | 12 mm molded plywood or reinforced polymer seat carrier | |
| Back support frame | Black glass-fiber-reinforced nylon Y-frame and central spine | |
| Headrest | Framed mesh headrest on black resin yoke with two circular adjustment knobs | |
| Armrests | Black resin height stems with polyurethane or resin flat arm pads |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Synchronized recline | Backrest and seat tilt together with a 3-position lock and 18-degree maximum back angle | |
|---|---|---|
| Seat height adjustment | Pneumatic lift provides 90 mm of height travel through the right-side lever | |
| Headrest positioning | Curved mesh headrest adjusts 80 mm vertically and rotates 30 degrees for neck support | |
| Arm support | Fixed-height arm pads provide forearm support at 230 mm above the seat and align with 720 to 760 mm desks |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Workstation application | Suitable for dedicated office desks, home offices, and trading desks requiring 6 to 8 hours of seated support | |
|---|---|---|
| Facility procurement use | Suitable for open-plan offices, executive workstations, and ergonomic upgrade programs with standard 720 to 760 mm desks |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
