PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight	22 kg
Suitable user height	190 cm
Seat static-load reference	200 kg
Backrest static-load reference	136 kg
Caster rolling durability reference	100000 cycles
Gas-lift cyclic durability reference	100000 height-adjustment cycles
Seat foam density reference	45 kg/m3
Back mesh tensile support reference	120 kg
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	Breathable grey woven mesh stretched over a framed load-bearing perimeter
Seat support structure	Molded light-grey polymer seat shell with a black steel under-seat mounting plate
Back frame	Light-grey molded polymer outer frame with sculpted internal support ribs
Headrest	Grey mesh face over a curved polymer cushion frame mounted on a height-adjustable support
Arm assemblies	Height-adjustable polymer arm posts with soft black or dark-grey padded arm caps
Base and lift	Polished aluminium five-star base, chrome-plated steel gas-lift tube and black twin-wheel nylon casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 80 mm travel controlled by the visible under-seat lever
Recline and lock	Synchronized seat-and-back recline to 135 degrees with multi-position lock and tension control
Headrest adjustment	Curved mesh headrest moves through 80 mm of height adjustment and supports neck contact in recline
Leg-rest deployment	Split mesh leg rest folds under the seat and extends 380 mm for reclined leg support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	840 x 660 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suited to long-duration desk work where head, lumbar, arm and recline support are required for focused users.
Manager or home-office space	Recommended for executive offices, premium home workstations and task rooms needing recline and leg-rest support.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-MESH-GY-FT01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-MESH-GY-FT01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-MESH-GY-FT01Open Export Tool

Quick Actions

Post an RFQ

Product Description

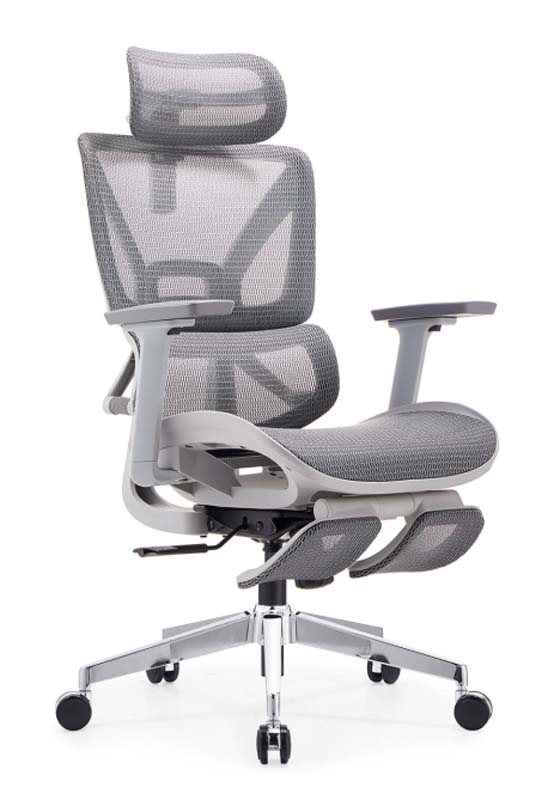

The Grey Mesh Ergonomic Reclining Office Chair with Headrest and Leg Rest is a high-back task seating solution with a streamlined, functional appearance. Grey woven mesh covers the seat, back and headrest, set within a light-grey molded polymer frame. Its tall back, broad seat, height-adjustable arms, polished five-star base and split folding leg rest create a complete ergonomic profile suited to upright work and supported reclining. Model ERC-MESH-GY-FT01 is offered as an unbranded product, making it suitable for buyers seeking a neutral specification for office fit-outs, home workstations or task rooms. The chair is built around a molded light-grey polymer seat shell with a black steel under-seat mounting plate. The back frame uses the same light-grey molded polymer language with sculpted internal support ribs, while the breathable mesh is stretched over a framed load-bearing perimeter. Cushioning includes a finished seat cushion thickness of 90 mm, backrest padding thickness of 70 mm and a 240 mm lumbar support zone. Soft black or dark-grey arm pads sit on height-adjustable polymer posts. The chrome-plated steel gas-lift tube connects to a polished aluminium five-star base fitted with black twin-wheel nylon casters. Everyday operation is controlled from the under-seat area. Pneumatic seat-height adjustment provides 80 mm of travel through the visible lever. The synchronized seat-and-back mechanism reclines to 135 degrees, with multi-position locking and tension control. The curved mesh headrest offers 80 mm of height adjustment and is shaped to maintain neck contact when reclining. A split mesh leg rest folds beneath the seat and extends 380 mm to support the legs in a reclined posture. The chair also swivels on its five-star base, with clear width between the armrests of 540 mm and overall dimensions of 680 x 680 x 1290 mm. The stated reference capacity is 150 kg, suitable user height is 190 cm, and net weight is 22 kg. This model fits private offices, manager workstations, premium home offices and focused task environments where users want integrated head, lumbar, arm and leg support rather than a basic task chair. Its grey finish and polished base work with both contemporary office interiors and restrained residential study spaces. Procurement teams should allow for assembly and reception of two cartons per set, with a reference assembly time of 40 minutes and packaged gross weight of 23 kg. Delivery planning should account for the carton footprint, while specification reviews should confirm arm-pad colour preference, facility flooring compatibility and whether the recline and folding leg-rest functions match the intended workspace.
