PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user body weight	150 kg
Net weight	18.5 kg
Back static load verification target	136 kg
Seat impact durability target	100000 cycles
Caster rolling durability target	100000 cycles
Gas-lift cyclic durability target	100000 cycles
Recommended user height	1900 mm
Recommended daily usage	8 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back support surface	Light gray breathable woven mesh over a curved perimeter frame
Seat upholstery	Orange woven textile over a contoured foam cushion
Seat cushion core	75 mm molded polyurethane foam with density target 45 kg/m3
Seat support shell	Contoured light-gray polymer load shell under the cushion
Armrest assembly	Light-gray molded polymer arm pads and uprights with metal reinforcement
Back and headrest frame	Light-gray polymer frame with a padded mesh headrest

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 90 mm travel, controlled by an under-seat lever for 540 mm desk height alignment.
Recline movement	Synchronized seat-and-back tilt mechanism with 18 degree back travel and multi-position lock for task or reclined work.
Tension control	Side rotary knob adjusts recline resistance to suit a 150 kg maximum user specification.
Swivel and mobility	360 degree swivel seat, five-star base, and four twin-wheel casters provide movement on hard floors and low-pile carpet.

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workplace	Private offices, open-plan workstations and home offices where a high-back chair supports 8-hour computer work.
Recommended procurement fit	Best paired with 760 mm fixed desks or 1250 mm height-adjustable desks due to the 540 mm maximum seat height.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-HB-OR-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-HB-OR-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-HB-OR-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

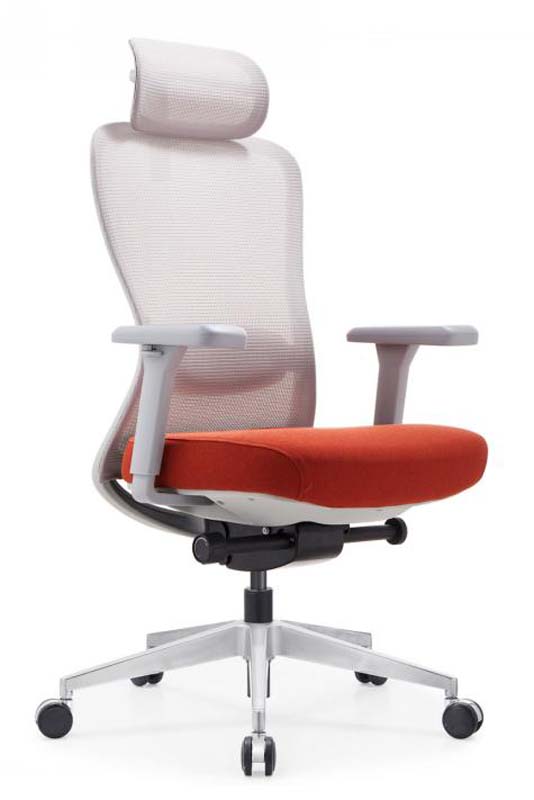

The High-Back Mesh Ergonomic Office Chair with Orange Seat and Headrest, model OC-MESH-HB-OR-01, is an unbranded task seating solution designed for users seeking structured support, breathable back contact, and a distinct visual accent in a workspace. Its high-back form is finished in light gray, with a curved mesh backrest, matching polymer frame, and a padded mesh headrest that extends support through the upper back and head area. The orange woven-fabric seat creates a strong contrast against the lighter frame, while molded arm pads and uprights continue the coordinated gray appearance. The chair uses a five-star painted metal base, black nylon casters, and a steel gas lift, giving the elevated mesh back a stable visual foundation. The layout includes a 540 mm clear width between armrests, a 90 mm finished seat cushion, 70 mm of backrest padding, and a defined lumbar support zone with a height of 240 mm. The seat combines a contoured molded polyurethane foam core with an orange woven textile cover, set over a light-gray polymer load shell. The back support surface uses breathable woven mesh stretched over a curved perimeter frame, while the armrest assembly is formed from light-gray molded polymer with metal reinforcement. Functionally, the chair supports pneumatic seat-height adjustment through an under-seat lever, with 90 mm of travel and alignment to a 540 mm desk-height reference. A synchronized seat-and-back tilt mechanism provides 18 degrees of back travel and multi-position locking, allowing movement between upright task posture and a reclined working position. A side rotary knob adjusts recline tension to match user preference and the 150 kg maximum user specification. The 360-degree swivel seat, five-star base, and twin-wheel casters support mobility on hard floors and low-pile carpet. The product is suited to private offices, open-plan workstations, and home offices where a high-back chair is intended for sustained computer work. For procurement planning, the chair pairs with 760 mm fixed desks or 1250 mm height-adjustable desks based on its 540 mm maximum seat height. Each set is supplied in two cartons, with packaged gross weight of 23 kg and a reference assembly time of 40 minutes. Buyers should also account for the chair’s 18.5 kg net weight, 0.26 cubic meter carton volume, and suitability for users up to 1900 mm in height when planning office fit-outs or residential workspaces.

High-Back Mesh Ergonomic Office Chair with Orange Seat and Headrest Specifications
