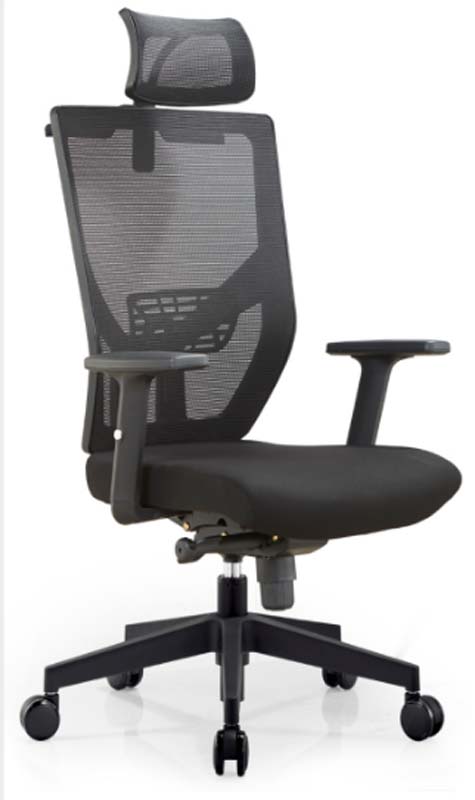

Product supplierHigh-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms, Black woven polyester mesh over a framed panel
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 660 × 660 × 1240 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 135 kg | |
|---|---|---|
| Net weight reference | 17 kg | |
| Static seat loading acceptance target | 1020 kg | |
| Backrest static force target | 68 kgf | |
| Seat and back durability cycles | 120000 cycles | |
| Caster rolling durability | 100000 cycles | |
| Gas-lift cycles | 200000 cycles | |
| Recommended user height range | 165 to 190 cm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest and headrest fabric | Black woven polyester mesh over a framed panel | |
|---|---|---|
| Seat upholstery | Black woven fabric over molded foam cushion | |
| Seat foam | 80 mm molded polyurethane foam, density 45 kg/m3 | |
| Back frame | Injection-molded nylon or polypropylene frame with black matte finish | |
| Armrests | Black nylon T-arm supports with padded polymer arm caps | |
| Base | Black nylon five-star base with molded ribs and twin-wheel sockets |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift with 100 mm travel and side actuator, setting the seat from 450 to 540 mm. | |
|---|---|---|
| Recline system | Synchro-tilt movement to 118 degrees with tension knob and multi-position lock for task or reclined posture. | |
| Swivel function | 360-degree swivel around the central gas lift for workstation access and easy turn-around. | |
| Lumbar and head support | Visible lower-back panel and curved mesh headrest provide passive support; sliding mechanism is not visibly confirmed. |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight per carton | 20 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suited to individual desks and open-plan task seating because of high-back support, swivel access and breathable mesh. | |
|---|---|---|
| Commercial and home-office users | Appropriate for staff workstations, manager desks and study spaces requiring 4 to 8 hour task seating. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 office chair dimensions | Applies to dimensional coordination for an office task chair used at standard desks. | |
|---|---|---|
| EN 1335-2 safety requirements | Applies to structural safety, stability and shear-risk verification before purchase. | |
| EN 1335-3 test methods | Applies to strength, durability and caster testing protocols for batch acceptance. |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 office chairs | Applies to static, dynamic, fatigue, stability and caster acceptance tests for commercial seating. |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 furniture mechanical stability | Applies to chair stability verification on hard level surfaces during procurement inspection. | |
|---|---|---|
| GB/T 10357.3 chair strength and durability | Applies to seat, back and arm static and cyclic load acceptance testing. | |
| GB 17927 furniture structure safety | Applies to accessible edges, pinch points and safe load-bearing chair structure. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2 furniture mechanical stability: Applies to chair stability verification on hard level surfaces during procurement inspection.; 2. GB/T 10357.3 chair strength and durability: Applies to seat, back and arm static and cyclic load acceptance testing.; 3. GB 17927 furniture structure safety: Applies to accessible edges, pinch points and safe load-bearing chair structure.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
