PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 600 × 990 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Suggested user weight capacity	120 kg
Frame static verification load	600 mm
Seat cushion loading area	0.225 m2
Seat foam density	35 kg/m3
Seat foam indentation hardness	45 kgf
Back mesh tensile verification	200 N horizontal pull point
Recommended daily occupancy	8 hours
Chair count per table setting	1 person per chair
Net weight	8.8 kg
Warranty target	3 years frame, 1 year upholstery

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Black flexible mesh over a black molded outer frame
Seat upholstery	Black woven fabric over 70 mm padded cushion
Internal seat board	12 mm molded plywood or PP seat shell
Arm pads	Injection-molded black PP top pads with smooth rounded edge
Sled frame	Polished chrome-plated steel tube, 25.4 mm diameter and 1.5 mm wall
Back attachment hardware	Black steel or reinforced polymer side brackets with hidden fasteners

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating function	Fixed non-swivel guest seat with continuous cantilever sled frame
Back support function	Contoured mesh back gives flexible airflow and a visible lumbar pressure zone
Arm support function	Fixed loop armrests connect from rear frame to forward sled uprights at 670 mm height
Floor handling function	Four integrated glide points allow short repositioning on hard floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Meeting and visitor spaces	Use in conference rooms, reception areas and interview rooms where fixed arm support and a professional black finish are required
Workstation guest seating	Place opposite or beside desks at 450 mm seat height for short meetings and temporary task seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.1 General-Purpose Office Chairs

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · VC-MSH-SLD-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · VC-MSH-SLD-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · VC-MSH-SLD-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

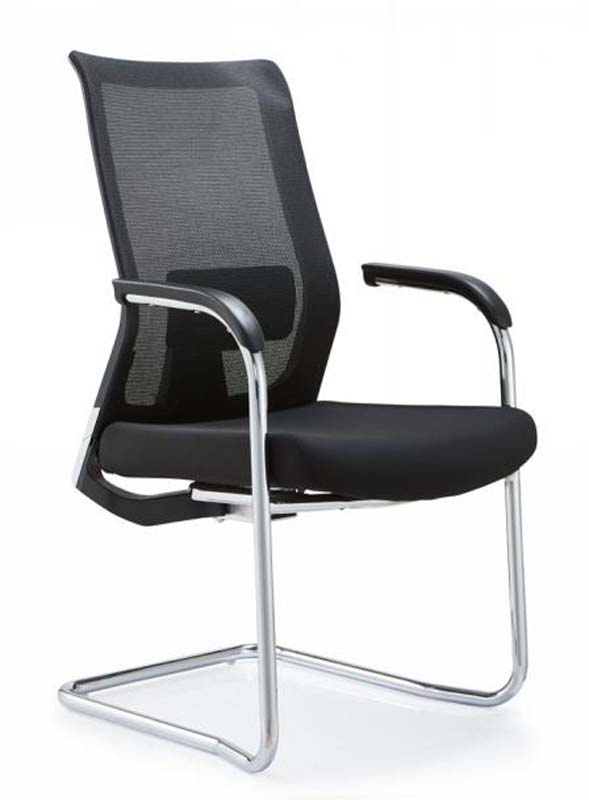

The Black Mesh Visitor Chair with Chrome Sled Base is an unbranded guest seating solution, model VC-MSH-SLD-01, designed for professional settings where a clean, structured appearance is important. Its black mesh back and black upholstered seat create a coordinated visual profile, while the polished chrome sled frame gives the chair a light, open presence despite its fixed construction. Fixed loop armrests extend from the rear frame to the forward sled uprights, supporting the chair’s linear silhouette and providing defined arm support. The contoured back includes a visible lumbar support zone, and flexible mesh helps maintain airflow during use. Overall dimensions are 600 by 600 by 990 millimeters, with 540 millimeters of clear width between the armrests. The seat is presented at a 450 millimeter seat height in its intended workstation guest layout. Construction combines a black flexible mesh back over a black molded outer frame with a padded fabric seat. The seat uses black woven fabric over a 70 millimeter padded cushion, with a 90 millimeter finished seat cushion thickness and 35 kilogram per cubic meter foam specified at 45 kilogram-force indentation hardness. Its internal support is a 12 millimeter molded plywood or PP seat shell. Armrests are finished with injection-molded black PP pads featuring smooth rounded edges. The continuous cantilever base is made from polished chrome-plated steel tube measuring 25.4 millimeters in diameter with a 1.5 millimeter wall, and the back is attached with black steel or reinforced polymer side brackets using hidden fasteners. Four integrated glide points allow short repositioning on hard floors. This is a fixed, non-swivel visitor chair suited to conference rooms, reception areas, interview rooms and other meeting spaces where fixed arm support and a professional black finish are required. It can also be placed opposite or beside desks for short meetings and temporary task seating. The design is identified as stackable-style, making it visually suitable for environments that favor orderly, space-efficient seating. A suggested user weight capacity of 120 kilograms and recommended daily occupancy of 8 hours should be reviewed against the intended application. For procurement, allow for assembly time of 40 minutes per set. Each set is supplied in two cartons, with packaged gross weight of 23 kilograms and a reference carton volume of 0.26 cubic meters. The indicative loading plan allows 135 sets in a 20GP container at 85 percent space utilization. Buyers should confirm floor surface compatibility, expected usage patterns, delivery packaging, assembly responsibility and material options before placing a project order.

Black Mesh Visitor Chair with Chrome Sled Base Specifications
