PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	150 kg
Static seat load reference	220 kg
Recommended user height	190 cm
Net weight reference	22 kg
Synchronized tilt range	130degrees
Tilt lock positions	4 positions
Seat slider travel	60 mm
Caster rolling durability target	100000 cycles
Gas-lift cycles target	100000 cycles
Fabric abrasion acceptance target	50000 Martindale cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back and seat suspension	Gray flexible polymer-fiber mesh over a molded polymer and metal support frame
Seat support shell	Molded polymer load pan with a contoured waterfall front
Back frame	Light-gray polymer outer frame with internal ribbed support forming shoulder and lumbar zones
Lumbar support	Separate curved mesh-covered polymer lumbar pad attached to the back structure
Arm supports	Light-gray polymer or die-cast support posts with soft-touch rectangular arm pads
Base and lift	Polished aluminum five-star base, black sleeve and steel gas-lift column

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchronized recline	Backrest and seat move together to a 130-degree rear tilt with selectable lock positions
Seat-height adjustment	Pneumatic lever raises or lowers the seat through a 70 mm travel range for 530 mm desk use
Seat-depth adjustment	Under-seat slider changes thigh support by 60 mm while retaining the waterfall front edge
Footrest operation	Telescoping leg rest extends 320 mm from under the seat and flips upward for reclined leg support

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for 10 hour desk work where height, seat depth, lumbar support and recline adjustment are required
Manager or executive workspace	Suitable for private offices needing a polished aluminum base, gray mesh finish and reclining footrest

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERC-HB-GRY-FR01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERC-HB-GRY-FR01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERC-HB-GRY-FR01Open Export Tool

Quick Actions

Post an RFQ

Product Description

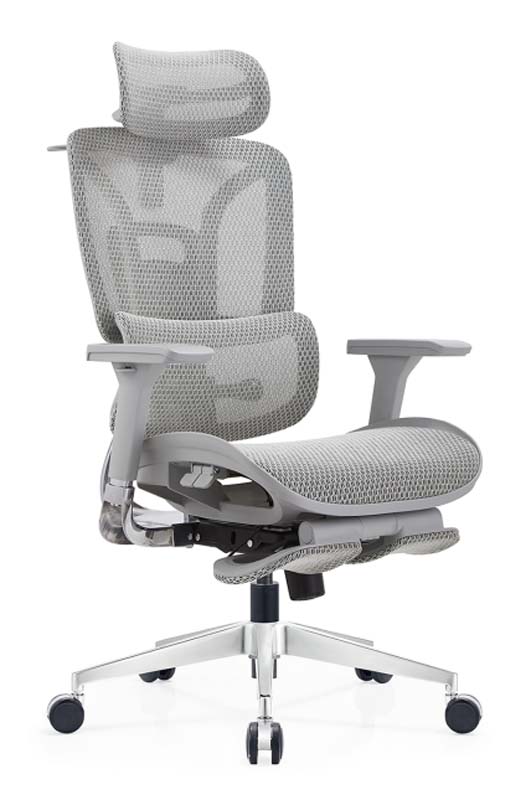

The Gray High-Back Mesh Ergonomic Office Chair with Headrest and Footrest, model ERC-HB-GRY-FR01, is an unbranded task seating solution designed for users seeking structured support during extended desk work. Its tall gray mesh back, matching headrest, contoured seat, padded armrests, and integrated leg rest create a coordinated executive appearance while retaining the open visual character of mesh office seating. The light-gray frame, polished aluminum five-star base, and black twin-wheel casters give the chair a clean commercial look that fits both open workstation areas and private offices. The back and seat use flexible gray polymer-fiber mesh over a molded polymer and metal support frame, promoting a light, breathable surface. A molded polymer load pan supports the seat and forms a contoured waterfall front intended to reduce pressure behind the knees. The back frame includes internal ribbed support that shapes dedicated shoulder and lumbar zones, while a separate curved mesh-covered polymer lumbar pad attaches directly to the back structure. Arm supports use light-gray polymer or die-cast posts fitted with soft-touch rectangular pads. The polished aluminum base, black sleeve, and steel gas-lift column provide the chair’s central support structure. Functional adjustment is a central feature. The synchronized mechanism moves the backrest and seat together through a 130-degree rear tilt, with four selectable lock positions. Pneumatic seat-height adjustment offers 70 millimeters of travel and is referenced for 530-millimeter desk use. An under-seat slider provides 60 millimeters of seat-depth adjustment to vary thigh support while preserving the waterfall edge. The telescoping footrest extends 320 millimeters from beneath the seat and flips upward for relaxed, reclined leg support. The chair also swivels and rolls on twin-wheel casters, making repositioning around a workstation straightforward. Overall dimensions are 680 by 680 by 1320 millimeters. Key fit details include a 540-millimeter clearance between armrests, a 90-millimeter finished seat cushion, 70-millimeter backrest padding, and a 240-millimeter-high lumbar support zone. The recommended user capacity is 150 kilograms, with a recommended user height of 190 centimeters, a static seat load reference of 220 kilograms, and a net weight reference of 22 kilograms. This model is appropriate for office workstation use involving long periods of desk work, particularly where height, seat depth, lumbar support, and recline adjustment are priorities. It is also suited to manager or executive workspaces that benefit from a polished base, gray mesh finish, and retractable footrest. Buyers should plan for assembly: the set ships in two cartons with a packaged gross weight of 23 kilograms and an indicated assembly time of 40 minutes. Procurement teams should also verify delivery access, storage volume, replacement parts availability, and compatibility with the intended floor surface and desk height before bulk ordering.

Gray High-Back Mesh Ergonomic Office Chair with Headrest and Footrest Specifications
