PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 1800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	115 kg
Upper open shelf uniform load per shelf	30 kg
Lower cabinet shelf uniform load per shelf	40 kg
Drawer static load per drawer	25 kg
Total storage volume	1.3 m³
Recommended wall fixation load capacity	150 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet body and structural panels	16mm melamine-faced particleboard with walnut wood-grain finish
Decorative door and drawer fronts	MDF with matte light gray laminate, vertical fluted texture on selected doors
Open shelf backing panel	8mm light gray matte fiberboard back panel
Integrated display lighting	Recessed warm-white LED strip with aluminum channel housing
Drawer hardware	Side-mounted concealed metal drawer slides with soft-close mechanism
Door hardware	Concealed European-style hinges with soft-close damping

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mixed storage layout	Combines left full-height closed cabinet, upper/lower open display bays, middle closed cabinets, drawers and bottom doors
Integrated display lighting	LED strips installed inside all open shelf compartments for ambient accent lighting
Soft-close hardware	All doors and drawers operate with soft-close damping to reduce impact noise
Anti-tip safety design	Equipped with wall-mounting fixation hardware to prevent forward tipping

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Assembly time (two workers)	120 minutes
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office background storage	Serves as rear display and file storage cabinet behind executive desks, matching modern walnut office suites
Reception and lounge area display	Used in corporate reception zones to display trophies, brochures and decorative items with LED accent lighting

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety of furniture storage units	Applicable to EN 14749:2016 domestic and kitchen storage furniture safety requirements
Formaldehyde emission for panels	Applicable to EN 13986:2004 E1 grade requirement for wood-based panels

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Storage furniture stability	Applicable to ANSI/BIFMA X2020storage units stability test method

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Wood-based panel formaldehyde emission	Applicable to GB 18580E1 grade requirement for indoor furniture
Cabinet mechanical strength	Applicable to GB/T 3324 general technical requirements for wooden cabinets

Standardized tender description text

This product must meet the following technical requirements:
1. Wood-based panel formaldehyde emission: Applicable to GB 18580E1 grade requirement for indoor furniture;
2. Cabinet mechanical strength: Applicable to GB/T 3324 general technical requirements for wooden cabinets;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SC-2400-WDGR

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SC-2400-WDGR

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SC-2400-WDGROpen Export Tool

Quick Actions

Post an RFQ

Product Description

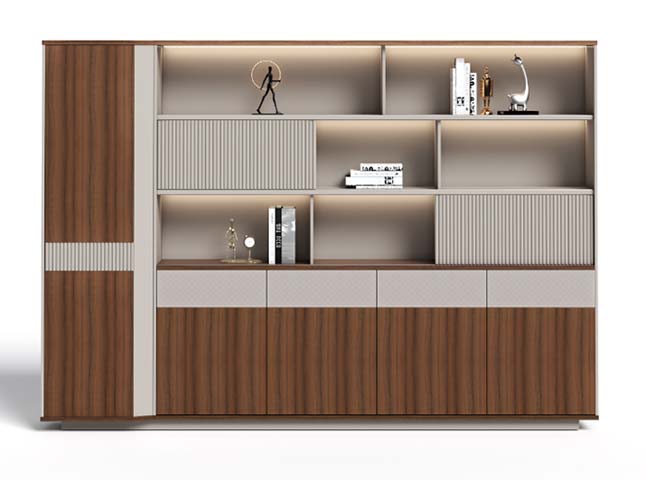

This unbranded modern two-tone high cabinet, model SC-2400-WDGR, presents a refined visual profile defined by its mixed open and closed storage layout and fluted door panel details. Its design balances walnut wood-grain and matte light gray finishes, with a floor-standing form that integrates seamlessly into contemporary interiors. The cabinet’s layout pairs a left full-height closed cabinet with upper and lower open display bays, middle closed storage sections, drawers, and bottom doors, creating a layered, functional facade that avoids a monotonous solid appearance. Constructed with a combination of wood-based panels and durable hardware, the cabinet delivers reliable structural integrity. Its main body and structural panels use melamine-faced particleboard with a walnut wood-grain finish, while decorative door and drawer fronts feature MDF with a matte light gray laminate and vertical fluted texture on select doors. Open shelf backing uses light gray matte fiberboard, and recessed warm-white LED strips are housed in aluminum channels within all open shelf compartments. All doors and drawers are fitted with soft-close hardware, including concealed European-style hinges for doors and side-mounted concealed metal slides for drawers, reducing impact noise during daily use. The cabinet also includes wall-mounting fixation hardware to prevent forward tipping, enhancing user safety. Practically, the cabinet offers versatile storage and display capabilities. Its open bays provide dedicated space for curated items, complemented by integrated LED accent lighting that elevates the visibility of displayed objects. Closed storage sections, drawers, and the full-height side cabinet accommodate concealed organization of supplies, files, or personal items. Each open shelf supports a uniform load of 30 kg, while lower cabinet shelves support 40 kg per shelf and drawers support a static load of 25 kg per drawer, with a total storage volume of 1.3 cubic meters. Ideal for both commercial and select residential spaces, the cabinet functions effectively as executive office background storage, serving as a rear display and file storage unit behind executive desks that pairs well with modern walnut office suites. It also suits corporate reception and lounge areas, where it can showcase trophies, brochures, and decorative pieces with the added ambiance of LED lighting. For procurement planning, the cabinet requires assembly by two workers, and it ships in multiple cartons with a total gross packaged weight of 100 kg. Facilities should account for delivery access that accommodates the maximum carton dimensions, and installation teams should plan for sufficient time to complete assembly and secure the unit to the wall using the included anti-tip hardware to ensure safe long-term use.

Modern Two-Tone Storage Cabinet with Open Display Shelves and LED Lighting Specifications
