Automatic mm / inch conversion · Core engineering specifications

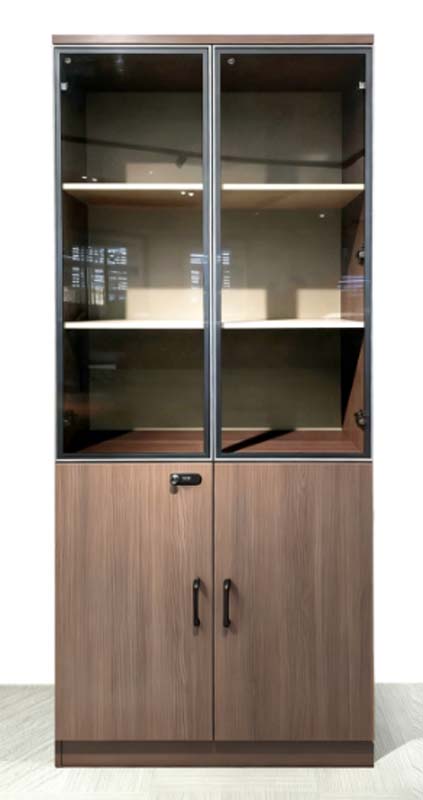

| Overall dimensions | 800 x 400 x 1850 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Shelf static load capacity | 25 kg | |
|---|---|---|
| Whole cabinet net weight | 62 kg | |
| Total internal storage volume | 0.48 m³ | |
| Durable cycle rating for door hinges | 80000 open/close cycles | |
| Recommended maximum load per cabinet | 100 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet carcass | 18mm E1 grade particleboard with walnut wood-grain melamine finish | |
|---|---|---|
| Upper door panels | 5mm clear tempered glass set in 1.2mm thick anodized dark gray aluminum frames | |
| Lower door panels | 18mm matching wood-grain melamine particleboard with sealed edge banding | |
| Internal shelves | 18mm melamine-faced particleboard with matching light finish | |
| Door hardware | Matte black zinc alloy pull handles and standard concealed cabinet hinges | |
| Integrated lock | Black keyed cam lock securing both lower doors | |
| Base plinth | 18mm matching wood-grain melamine board | |
| Door seals | Soft PVC bumper strips along door edges to reduce closing noise | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Upper glass door access | Two hinged swing doors opening outward to display stored items on adjustable shelves | |
|---|---|---|
| Lower locked storage | Two hinged solid doors secured by a single central key lock for private document storage | |
| Adjustable shelving in upper section | Two removable shelves with 32mm pitch hole positions to adjust compartment height | |
| Fixed shelving in lower section | One full-width fixed shelf dividing lower compartment into two equal storage spaces | |
| Integrated display lighting prep | Pre-routed internal channel for optional LED strip lighting along upper shelf edges | |
| Leveling adjustment | Four adjustable feet under base plinth to compensate for uneven floor surfaces | |
| Door opening angle | 110 degrees per door to provide unobstructed access to internal storage | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office space | Positioned behind or beside executive desks to store documents and display awards/books | |
|---|---|---|
| Open plan office area | Used as departmental shared storage for files, office supplies and reference materials | |
| Meeting room | Installed along walls to store meeting materials, presentation supplies and decorative items | |
| Home office | Used for combined book storage and home office supply organization in residential workspaces | |
| Small business reception | Used to display company credentials and store reception supplies out of sight |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture, safety requirements for tall storage cabinets | |
|---|---|---|
| EN 14073-3:2004 | Office storage furniture, stability and structural strength requirements |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade requirement for panel materials | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage cabinets, shelf and door load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade requirement for panel materials; 3. GB/T 10357.5-2011: Furniture mechanical performance test for storage cabinets, shelf and door load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
