PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 450 × 2200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total cabinet net weight	260 kg
Hanging rail static load per wardrobe bay	30 kg
Adjustable shelf static load	20 kg per shelf
Fixed display shelf static load	25 kg per shelf
Base cabinet shelf static load	30 kg per shelf
Recommended wall fastener pull-out resistance	0.8 kN per anchor
Door operating cycle reference	50000 cycles
Storage volume	3.2 m3
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Wardrobe doors	Black-tinted tempered glass doors with narrow black aluminum frames and vertical pulls
Cabinet carcass	18 mm matte light-gray wood-based panel with sealed edge banding
Base cabinet doors	Dark walnut-wood-grain fluted panel doors, 22 mm finished thickness including ribbed face
Display shelves	25 mm dark wood-grain horizontal shelves with matching edge banding
Vertical rounded column	Matte silver painted MDF or composite panel formed with rounded corner faces
Back panels	10 mm matte gray backing panels in open display compartments

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Wardrobe storage	Two separate full-height wardrobe bays provide upper shelf storage and long-garment hanging for coats and jackets
Base cabinet storage	Continuous base bank uses multiple narrow vertical doors for concealed storage across the full wall length
Open display storage	Three illuminated horizontal shelf levels display books, art, plants and decorative objects
Integrated lighting	Warm LED strips are mounted beneath the front edge of two display shelves to illuminate the shelf below

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Packed carton count	6 cartons
Largest carton dimensions	2300 x 520 x 180 mm
Total packed gross weight	300 kg
Total packed volume	2.6 m3
Assembly time	12 hours for two installers
20 GP container loading	6 sets

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office and manager workspace	Suitable for a private office where coats, documents, awards and decorative items need concealed and display storage in one wall
High-end reception or meeting area	Can be installed behind a reception desk or in a meeting lounge for curated display, sample storage and visitor-facing presentation

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WD-DISPLAY-3600-2200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WD-DISPLAY-3600-2200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WD-DISPLAY-3600-2200Open Export Tool

Quick Actions

Post an RFQ

Product Description

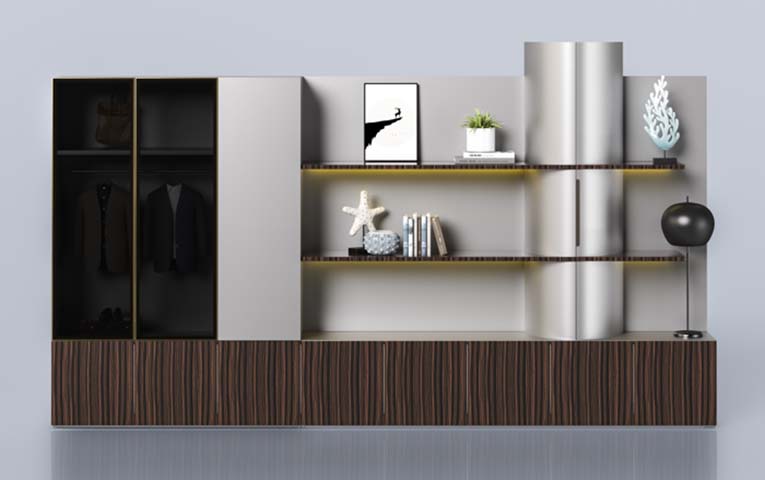

The Combined Wardrobe and Open Display Storage Wall, model WD-DISPLAY-3600is an unbranded built-in storage system designed to balance concealed wardrobe capacity with curated open presentation. Its modern wall-length composition separates personal storage from display space while maintaining a coordinated, layered appearance through matte surfaces, dark wood grain, black glass, and refined aluminum details. Visually, the unit combines two full-height wardrobe bays with a central open shelving section and a continuous base cabinet. The wardrobe fronts use black-tinted tempered glass doors set in narrow black aluminum frames and finished with vertical pulls, producing a sleek, understated boundary for stored clothing. The open area presents three dark wood-grain horizontal shelf levels supported within a matte gray-backed compartment, while a matte silver rounded column softens the vertical transition between cabinet sections. Dark walnut-wood-grain fluted base doors add texture along the lower wall and conceal smaller stored items behind narrow vertical panels. Construction uses 18 mm matte light-gray wood-based panels for the cabinet carcass with sealed edge banding. Display shelves and the main structural panels are specified at 25 mm, with matching edge banding on the shelves. The fluted base doors have a 22 mm finished thickness including the ribbed face, while open-compartment back panels are 10 mm matte gray board. Aluminum hardware complements the glass doors and contemporary finish palette. Functionally, the wardrobe bays provide upper shelf storage and long-garment hanging space suitable for coats and jackets. The open shelves accommodate books, art, plants, awards, and decorative objects, with warm LED strips mounted beneath the front edges of two shelves to illuminate the level below. The full-length base cabinet supplies additional concealed storage for documents, samples, or office essentials. Static load references include 30 kg per wardrobe hanging rail, 20 kg per adjustable shelf, 25 kg per fixed display shelf, and 30 kg per base cabinet shelf. The system is well suited to executive offices and manager workspaces requiring clothing, filing, award, and decorative storage in a single integrated wall. It also works behind high-end reception desks or in meeting lounges where visitor-facing presentation and sample storage are needed. Specifiers should plan for professional installation, wall anchoring suited to the recommended fastener resistance, six delivery cartons, and a 12-hour assembly period for two installers. Site access should be checked against the largest packed carton size, and the dark glass, fluted doors, and illuminated shelves should be considered as part of the overall interior design rather than as standalone utility storage.
