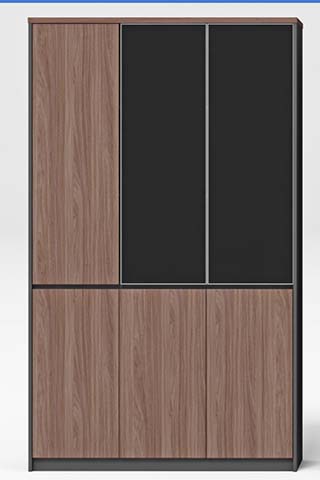

Two-Tone Walnut and Black 3-Bay Freestanding Tall Storage Wardrobe (model WDC-3BAY-2200) is listed under Panel-type Filing Cabinet, with overall dimensions of 1800 × 600 × 2200 mm and main material of Particle‑board (PB). Load capacity: 50 kg. Certifications: modern,minimalist,freestanding,enclosed,storage,two-tone,wood,and,black,finish,hinged,doors,recessed,plinth,base. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall assembled dimensions | 1800 x 600 x 2200 mm | |
|---|---|---|
| Upper section total height | 1300 mm | |
| Lower section total height | 800 mm | |
| Plinth base height | 100 mm | |
| Individual vertical bay width | 600 mm | |
| Upper left wood door dimensions | 600 x 1300 mm | |
| Upper right dark door individual dimensions | 600 x 1300 mm | |
| Lower individual door dimensions | 600 x 800 mm | |
| Door panel thickness | 18 mm | |
| Carcass side panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Internal shelf depth | 550 mm | |
| Internal hanging rod clearance height | 1200 mm | |
| Adjustable shelf vertical spacing range | 320 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Hanging rod total static load capacity | 50 kg | |
|---|---|---|
| Total unit net weight | 170 kg | |
| Hinge open/close cycle rating | 80000 cycles | |
| Anti-tip wall anchor load rating | 50 kg | |
| Leveling foot vertical adjustment range | 15 mm | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass and wood-tone door panels | E1-grade engineered wood with walnut wood veneer, vertical grain finish, 1mm matching PVC edge banding | |
|---|---|---|
| Upper dark door panels | MDF core with matte black thermofoil laminate finish, scratch-resistant surface | |
| Frame and plinth base | Powder-coated cold-rolled steel, matte black finish, 1.2mm wall thickness | |
| Internal hardware (hinges) | Cold-rolled steel with nickel plating, soft-close hydraulic damping | |
| Internal hanging rod | 25mm diameter chrome-plated steel, 1.2mm wall thickness, center support bracket for wide bays | |
| Back panel | Hardboard with matte black finish, secured with staples to cabinet rear frame |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Six hinged doors open 110 degrees outward, with soft-close damping to prevent slamming | |
|---|---|---|
| Internal storage configuration | Left bay includes full-height hanging rod; right two upper/lower bays include 4 height-adjustable shelves | |
| Stability adjustment | Four adjustable leveling feet at base corners correct uneven floors up to 15mm | |
| Anti-tip safety | Two wall-mounted anti-tip straps secure cabinet rear to wall studs to prevent forward collapse |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential bedroom storage | Suitable for master or guest bedrooms, provides mixed hanging and folded clothing storage | |
|---|---|---|
| Office document and supply storage | Suitable for executive offices or back-of-house storage, provides lockable enclosed storage for files |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, applicable for tip and load testing | |
|---|---|---|
| EN 312:2010 | Particleboard specifications for furniture-grade panels, applicable for core material verification | |
| EN 12521:2015 | Furniture strength, durability and safety for domestic storage units, applicable for cycle testing |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish performance verification | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture, applicable for formaldehyde emission testing | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core material strength verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish performance verification; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture, applicable for formaldehyde emission testing; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable for core material strength verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
