Automatic mm / inch conversion · Core engineering specifications

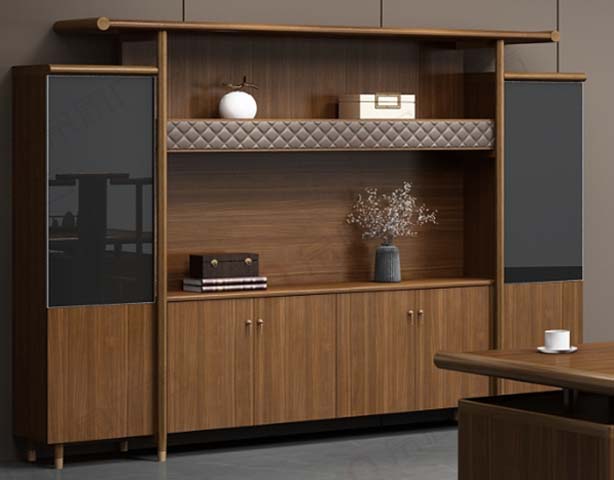

| Overall unit dimensions | 3200 x 600 x 2200 mm | |
|---|---|---|
| Side cabinet width (each) | 800 mm | |
| Central open section width | 1600 mm | |
| Upper glass door height (per side cabinet) | 1200 mm | |
| Lower wood door height (per side cabinet) | 800 mm | |
| Open shelf depth (central section) | 350 mm | |
| Leg height (floor to cabinet base) | 100 mm | |
| Shelf clearance between central open tiers | 450 mm | |
| Lower cabinet internal shelf clearance | 380 mm | |
| Top overhang projection beyond cabinet face | 80 mm | |
| Door panel thickness | 18 mm | |
| Carcass side panel thickness | 25 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Total unit weight (assembled) | 400 kg | |
|---|---|---|
| Static load capacity per shelf | 30 kg | |
| Hinge open/close cycle rating | 10000 cycles | |
| Anti-tip anchor load rating | 100 kg | |
| Wood moisture content | 12% | |
| Joinery gap tolerance | 0.3 mm | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass and door panels | E1-grade engineered wood core with walnut wood veneer, clear protective topcoat | |
|---|---|---|
| Side cabinet upper doors | 5mm thick tinted frosted tempered glass with bronze metal edge trim | |
| Vertical support posts and trim | Bronze-finish solid metal, corrosion-resistant powder coating | |
| Upper shelf front accent panel | 20mm thick high-density foam with diamond-quilted grey woven fabric upholstery | |
| Pull handles | Antique brass-finish zinc alloy, small cylindrical design | |
| Legs | Solid hardwood tapered legs with bronze metal foot caps | |
| Back panel | 9mm thick MDF with matching wood grain laminate finish | |
| Shelf surfaces | 25mm thick veneered engineered wood with 1mm thick PVC edge banding | |
| Edge trim details | Bronze metal trim applied to all horizontal top and shelf edges | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Side cabinet storage | Two tall side cabinets each with upper tinted glass display section and lower enclosed wood door storage, 2 adjustable shelves per section | |
|---|---|---|
| Central open storage | Two tiers of open display shelving separated by quilted upholstered front accent panel, designed for decorative items and frequently accessed materials | |
| Lower central storage | Four wood slab doors (two pairs) with brass pulls enclosing a single continuous storage compartment with one fixed shelf | |
| Door hardware | Soft-close adjustable steel hinges on all doors, 110-degree opening angle for easy interior access | |
| Anti-tip safety | Two heavy-duty metal wall anchor straps included for securing unit to wall to prevent tip-over | |
| Surface protection | Scratch-resistant clear topcoat on all wood surfaces, rated for 1000 cycles of abrasion resistance | |
| Leveling adjustment | Adjustable glide feet on each leg to compensate for uneven floor surfaces | |
| Design coordination | Matching walnut wood and bronze finish designed to pair with executive desks of the same collection | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office background storage | Installed behind executive desks to create a formal storage and display wall for manager/president offices | |
|---|---|---|
| Document and display storage | Stores bound documents, office awards, decorative objects and reference materials with mixed open/concealed storage | |
| Open-plan executive suite | Used as a partition or feature wall in high-end open office executive areas | |
| Boardroom ancillary storage | Placed along boardroom walls to store meeting materials and display corporate branding or decor | |
| Premium reception back wall storage | Installed behind reception desks in high-end corporate lobbies for concealed storage and curated display | |
| Color finish options | Available in walnut, dark wenge, and light oak wood finishes with matching bronze or black hardware |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety requirements for domestic and office storage furniture, applicable for tip-over and structural stability | |
|---|---|---|
| EN 12521:2015 | Strength, durability and safety requirements for non-domestic storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2020 | Performance standard for office storage units, applicable for load, durability and stability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality verification | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing | |
| GB/T 10357.5-2011 | Furniture mechanical performance test for storage units, applicable for shelf and structural load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality verification; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for formaldehyde emission testing; 3. GB/T 10357.5-2011: Furniture mechanical performance test for storage units, applicable for shelf and structural load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
