Automatic mm / inch conversion · Core engineering specifications

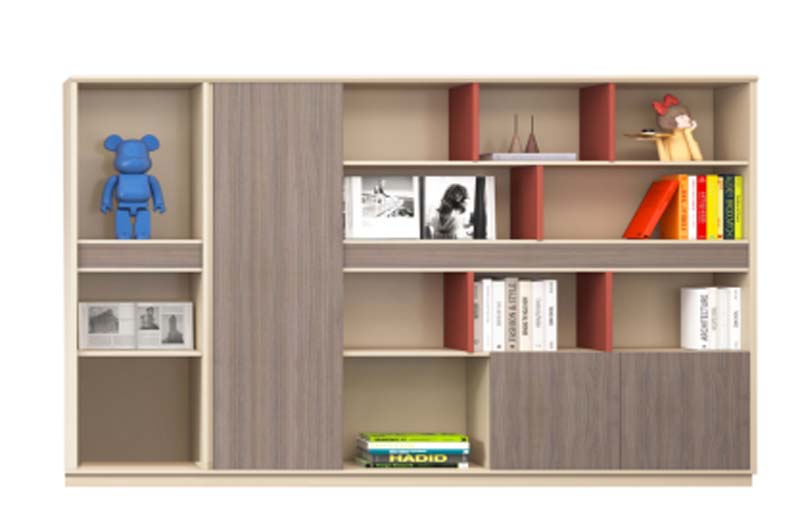

| Overall assembled dimensions | 1890 x 300 x 1800 mm | |
|---|---|---|
| Sliding door panel width | 600 mm | |
| Lower double-door cabinet width | 790 mm | |
| Open shelf compartment depth | 280 mm | |
| Raised shelf front lip height | 20 mm | |
| Vertical accent divider thickness | 18 mm | |
| Left open shelf tier clearance | 350 mm | |
| Main carcass panel thickness | 18 mm | |
| Back panel thickness | 5 mm | |
| Lower cabinet internal shelf clearance | 320 mm | |
| Edge band thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per open shelf static load capacity | 16 kg | |
|---|---|---|
| Product net weight | 75 kg | |
| Sliding door track cycle rating | 20000 cycles | |
| Hinge cycle rating for lower cabinet doors | 50000 cycles | |
| Anti-tip connector load rating | 50 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass frame and shelf interiors | 18mm E1 grade particleboard with matte beige melamine finish | |
|---|---|---|
| Sliding door and lower cabinet door panels | 18mm particleboard with walnut wood-grain melamine veneer | |
| Vertical accent dividers | 18mm MDF with matte terracotta powder-coated paint finish | |
| Back panel | 5mm hardboard with matching beige matte finish | |
| Sliding door track hardware | Powder-coated aluminum alloy track with nylon guide rollers | |
| Lower cabinet door hinges | Cold-rolled steel concealed soft-close hinges | |
| Shelf support pegs | Nickel-plated steel, 5mm diameter, 4 pegs per adjustable shelf | |
| Edge banding | 1mm thick PVC edge band matching panel finish, applied to all exposed edges | |
| Adjustable shelf surfaces | 18mm particleboard with raised front lip, same beige melamine finish as carcass | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Left column vertical sliding door | Slides horizontally along aluminum track to conceal 3-tier internal storage compartment | |
|---|---|---|
| Open display shelves | 9 asymmetric open compartments with adjustable shelf positions for books and decor | |
| Vertical accent dividers | Fixed terracotta dividers create segmented display zones to organize items by size | |
| Lower right double-door cabinet | Hinged doors open 110 degrees to provide concealed storage for office supplies and files | |
| Raised shelf front lips | Integral lip on every open shelf prevents stored books and decor from sliding off front edge | |
| Anti-tip wall anchoring | Includes 2 wall anchor brackets to secure unit to wall and prevent forward tip-over | |
| Sliding door position lock | Can be positioned fully open, half-open, or fully closed to adjust concealed storage coverage | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Largest carton dimensions | 1850 x 350 x 120 mm | |
|---|---|---|
| Second carton dimensions | 850 x 350 x 180 mm | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Open-plan office storage zones | Serves as a partition-style storage wall for team document and display storage | |
|---|---|---|
| Executive office back wall storage | Combines book display and concealed file storage behind workstations | |
| Home office study rooms | Stores books, media and personal items with display space for decor | |
| Reception area display storage | Displays company materials, awards and decor while concealing office supplies | |
| Commercial lounge waiting areas | Provides organized magazine and reading material storage with decorative display space |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and performance requirements for domestic and office storage furniture and kitchen cabinets | |
|---|---|---|
| EN 312:2010 | Specification for particleboard used in load-bearing furniture applications | |
| EN 12521:2015 | Durability and stability requirements for office storage furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Safety and performance standard for office storage units, applicable to shelf load and stability testing | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Sustainability standard for furniture, applicable to material emission and recyclability requirements |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel construction and finish quality | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, minimum E1 grade required for indoor office use | |
| GB/T 4897-2015 | Specification for particleboard used in furniture structural components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel construction and finish quality; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, minimum E1 grade required for indoor office use; 3. GB/T 4897-2015: Specification for particleboard used in furniture structural components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
