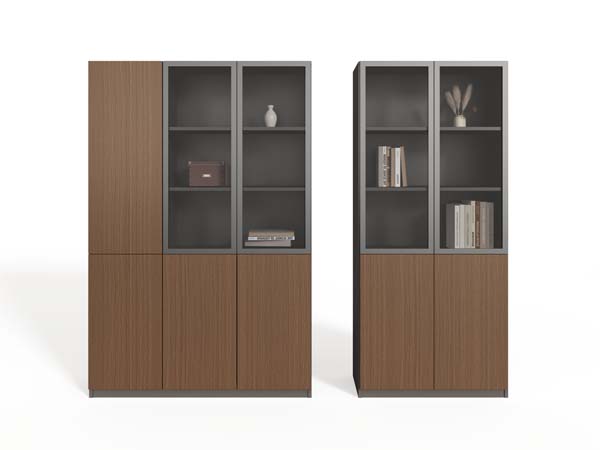

Modular Tall Office Display Storage Cabinet with Tinted Glass Upper Doors and Solid Wood-Grain Lower Doors (model ODC-GW2400) is listed under Panel-type Filing Cabinet. Dimensions: 2400 × 400 × 2000 mm. Materials: 18mm thick E1 grade melamine-faced MDF with vertical brown wood grain veneer. Load capacity: 30 kg. Product Features: modern,style,modular,freestanding,structure,glass,upper,display,solid,lower,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Fanshidun | Model | ODC-GW2400 |
| Overall dimensions (W × D × H) | 2400 × 400 × 2000 mm | Single bay width | 400 mm |
| Upper glass door section height | 1200 mm | Lower solid door section height | 800 mm |
| Adjustable shelf spacing | 350 mm | Dark tinted glass door thickness | 5 mm |
| Carcass panel thickness | 18 mm | Back panel thickness | 9 mm |
| Edge banding thickness | 2 mm | Metal door frame profile width | 20 mm |
| Leveling foot adjustable height | 15 mm | Door / Drawer Front Thickness | 22 mm |
| Shelf Thickness | 25 mm | Assembled unit net weight (combined) | 120 kg |
| Per shelf static load capacity | 30 kg | Recommended maximum load per full cabinet unit | 180 kg |
| Surface scratch resistance rating | 2000 cycles | Surface stain and water resistance | Grade 4 |
| Tempered glass impact resistance | 10 kg drop from 1 m | Hinge operational cycle rating | 80000 open/close cycles |
| Shelf Distributed Load | 30 kg/shelf | Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
| Hinge Opening Angle / Life | 165°; 80000 cycles | Main carcass panels | 18mm thick E1 grade melamine-faced MDF with vertical brown wood grain veneer |
| Upper door panels | 5mm dark tinted tempered safety glass set in 20mm matte gray steel frames | Lower door panels | 18mm thick vertical wood grain melamine MDF matching carcass finish |
| Internal adjustable shelves | 18mm thick melamine-faced particleboard with black interior finish | Door hardware | Cold-rolled steel soft-close hinges with matte gray powder coat finish |
| Edge sealing | 2mm thick ABS edge banding matching wood grain and gray frame colors | Base frame | 1.2mm thick matte gray powder-coated steel base trim along full unit bottom |
| Back panel | 9mm thick medium density fiberboard with matte black finish | Leveling feet | Reinforced nylon with steel threaded insert, adjustable height |
| Edge Band Thickness | 2 mm | Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
| Reference Finish / Color Count | Recommended 6finish options | Upper door operation | Hinged side-opening doors with soft-close mechanism, 110 degree opening angle |
| Lower door operation | Hinged side-opening solid doors with optional keyed lock for file security | Shelf adjustability | 5-level adjustable shelf positions with metal shelf pins, 3 shelves installed per glass bay |
| Floor leveling | 4 adjustable feet per modular unit to compensate for uneven office floors | Anti-tip safety | 2 wall-mounted anti-tip connectors per modular unit to prevent forward tipping |
| Display storage function | Tinted glass doors reduce UV exposure to displayed items while maintaining visibility | Concealed storage function | Solid lower doors hide office supplies, files and archived materials from view |
| Modular configuration | Units can be installed separately or ganged together to create custom length storage runs | Cable / Vent Opening Reference | If fitted, 80 mm diameter |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | Reference Packaged Gross Weight | 100 kg/set in 3 cartons |
| Reference Packaging Volume | 0.65 m³/set | Executive office backdrop | Positioned behind executive desks to display awards, books and decor while storing files |
| Open office document storage | Installed along office walls to organize team documents, reference materials and supplies | Meeting room display storage | Placed in conference rooms to hold presentation materials, reference books and decorative items |
| Reception area display | Used in reception zones to display company credentials, brochures and decorative objects | Private study storage | Installed in home or private studies for book collection and document storage |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 2000 mm | |
|---|---|---|
| Single bay width | 400 mm | |
| Upper glass door section height | 1200 mm | |
| Lower solid door section height | 800 mm | |
| Adjustable shelf spacing | 350 mm | |
| Dark tinted glass door thickness | 5 mm | |
| Carcass panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Edge banding thickness | 2 mm | |
| Metal door frame profile width | 20 mm | |
| Leveling foot adjustable height | 15 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Assembled unit net weight (combined) | 120 kg | |
|---|---|---|
| Per shelf static load capacity | 30 kg | |
| Recommended maximum load per full cabinet unit | 180 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Surface stain and water resistance | Grade 4 | |
| Tempered glass impact resistance | 10 kg drop from 1 m | |
| Hinge operational cycle rating | 80000 open/close cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main carcass panels | 18mm thick E1 grade melamine-faced MDF with vertical brown wood grain veneer | |
|---|---|---|
| Upper door panels | 5mm dark tinted tempered safety glass set in 20mm matte gray steel frames | |
| Lower door panels | 18mm thick vertical wood grain melamine MDF matching carcass finish | |
| Internal adjustable shelves | 18mm thick melamine-faced particleboard with black interior finish | |
| Door hardware | Cold-rolled steel soft-close hinges with matte gray powder coat finish | |
| Edge sealing | 2mm thick ABS edge banding matching wood grain and gray frame colors | |
| Base frame | 1.2mm thick matte gray powder-coated steel base trim along full unit bottom | |
| Back panel | 9mm thick medium density fiberboard with matte black finish | |
| Leveling feet | Reinforced nylon with steel threaded insert, adjustable height | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper door operation | Hinged side-opening doors with soft-close mechanism, 110 degree opening angle | |
|---|---|---|
| Lower door operation | Hinged side-opening solid doors with optional keyed lock for file security | |
| Shelf adjustability | 5-level adjustable shelf positions with metal shelf pins, 3 shelves installed per glass bay | |
| Floor leveling | 4 adjustable feet per modular unit to compensate for uneven office floors | |
| Anti-tip safety | 2 wall-mounted anti-tip connectors per modular unit to prevent forward tipping | |
| Display storage function | Tinted glass doors reduce UV exposure to displayed items while maintaining visibility | |
| Concealed storage function | Solid lower doors hide office supplies, files and archived materials from view | |
| Modular configuration | Units can be installed separately or ganged together to create custom length storage runs | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office backdrop | Positioned behind executive desks to display awards, books and decor while storing files | |
|---|---|---|
| Open office document storage | Installed along office walls to organize team documents, reference materials and supplies | |
| Meeting room display storage | Placed in conference rooms to hold presentation materials, reference books and decorative items | |
| Reception area display | Used in reception zones to display company credentials, brochures and decorative objects | |
| Private study storage | Installed in home or private studies for book collection and document storage |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to tall cabinet stability | |
|---|---|---|
| EN 14074:2004 | Office storage furniture test methods for strength and durability of moving parts | |
| EN 12521:2015 | Furniture mechanical safety requirements for glass components, applicable to tempered doors |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood cabinet structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E1 grade requirement for indoor office use | |
| GB/T 4893.4-2013 | Surface wear resistance test for furniture finishes, applicable to melamine panel durability | |
| GB/T 3327-2018 | Performance requirements for storage furniture, applicable to shelf and door load ratings |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood cabinet structural performance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade requirement for indoor office use; 3. GB/T 4893.4-2013: Surface wear resistance test for furniture finishes, applicable to melamine panel durability; 4. GB/T 3327-2018: Performance requirements for storage furniture, applicable to shelf and door load ratings; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
