Automatic mm / inch conversion · Core engineering specifications

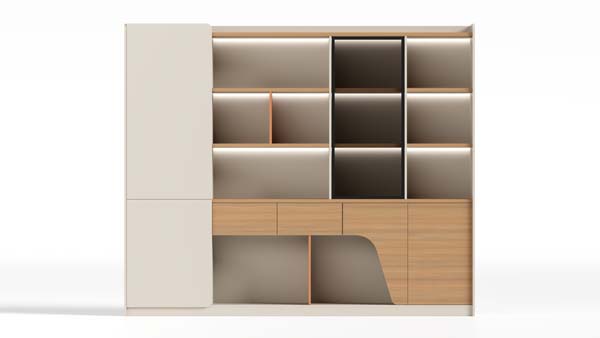

| overall unit dimensions | 2600 x 420 x 2200 mm | |
|---|---|---|
| left full-height cabinet width | 700 mm | |
| open shelving zone width | 1900 mm | |
| knee hole clearance height | 750 mm | |
| knee hole clearance width | 800 mm | |
| individual drawer front height | 150 mm | |
| open shelf depth | 350 mm | |
| work surface height at nook | 750 mm | |
| closed cabinet door thickness | 25 mm | |
| adjustable shelf thickness | 18 mm | |
| edge band thickness | 3 mm | |
| upper open shelf tier height | 380 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| unit total net weight | 250 kg | |
|---|---|---|
| open shelf static load capacity | 23 kg per shelf | |
| hinge cycle durability | 100000 open/close cycles | |
| drawer slide cycle durability | 50000 open/close cycles | |
| anti-tip anchoring load rating | 50 kg pull resistance | |
| recommended user capacity for work nook | 1 person | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| main structural carcass | E0-grade engineered wood composite with melamine laminate finish | |
|---|---|---|
| left column cabinet doors | Matte off-white melamine-faced MDF panels, handleless push-to-open design | |
| lower drawer and right cabinet fronts | Light oak woodgrain thermofoil finish on MDF core | |
| upper shelf dividers and accent bay | Powder-coated black metal vertical dividers, matte black laminate interior for central bay | |
| integrated shelf lighting | 18mm aluminum profile LED strip lights, 4000K neutral white, recessed into front edge of each open shelf | |
| drawer slides | Steel ball-bearing full-extension soft-close slides, 3-fold design | |
| door hinges | Adjustable soft-close concealed hinges with 110-degree opening angle | |
| back panel | 5mm thick hardboard with matching light grey laminate finish | |
| edge banding | 3mm thick PVC impact-resistant edge banding on all exposed panel edges | |
| base glides | Adjustable nylon leveling glides for floor alignment | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
Adjustment / rotation / tilt / mobility / storage features
| shelf lighting operation | Touch-controlled integrated LED strips on all open shelf tiers, dimmable to 3 brightness levels | |
|---|---|---|
| door operation | Handleless push-to-open mechanism on all solid cabinet doors, with soft-close damping | |
| drawer operation | Full-extension soft-close drawers with integrated stop to prevent over-pull, located in middle horizontal band | |
| work nook use | Curved cutout knee space enables seated laptop/desk work at integrated lower surface, with adjacent open storage for office supplies | |
| shelf adjustability | Open shelf tiers include 3 adjustable shelf positions per bay for variable item height storage | |
| wall anchoring | 2 included anti-tip wall anchors secure full-height unit to wall studs to prevent tipping | |
| leveling adjustment | 4 adjustable base glides compensate for uneven floor surfaces with 15mm vertical adjustment range | |
| storage configuration | Mixed storage layout combines closed concealed storage, open display shelving, drawer storage, and work surface in one wall unit | |
| cable management | Rear cable pass-through cutout at work nook for power and data cord routing | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| private executive office | Integrated storage and work nook creates a compact all-in-one workspace for executive or management offices | |
|---|---|---|
| home office study | Space-saving wall-mounted design combines book storage, display, and desk function for residential study rooms | |
| small office meeting room | Open display shelves hold reference materials and decor, while closed storage conceals office supplies in meeting spaces | |
| open office team zone | Provides shared document storage and occasional work surface for adjacent workstations in open plan offices | |
| reception waiting area | LED-lit display shelves showcase company materials or decor, with concealed storage for reception supplies | |
| recommended configuration | Pair with an ergonomic office chair with 480 mm seat height for proper work nook ergonomics | |
| finish option availability | Available in standard matte off-white/light oak combination, with custom finish matching available for bulk orders |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable safety and performance requirements for domestic and office storage furniture, including strength and stability | |
|---|---|---|
| EN 312:2010 | Applicable performance requirement for particleboard panels used in load-bearing furniture applications | |
| EN 12521:2015 | Applicable strength, durability, and stability requirements for non-domestic office storage furniture |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable general technical requirements for wooden office furniture, including dimensional tolerances and finish quality | |
|---|---|---|
| GB/T 4897.3-2018 | Applicable requirement for particleboard used in furniture construction, formaldehyde emission ≤0.124mg/m³ for E0 grade | |
| GB 28007-2011 | Applicable safety requirement for stability of freestanding storage furniture over 600mm tall, mandating anti-tip anchoring |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable general technical requirements for wooden office furniture, including dimensional tolerances and finish quality; 2. GB/T 4897.3-2018: Applicable requirement for particleboard used in furniture construction, formaldehyde emission ≤0.124mg/m³ for E0 grade; 3. GB 28007-2011: Applicable safety requirement for stability of freestanding storage furniture over 600mm tall, mandating anti-tip anchoring; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
