PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 400 × 1800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per shelf static load capacity	30 kg
LED strip operating voltage	24 V DC
Recommended total unit weight	85 kg
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet carcass	18 mm E1-grade particle board with matte gray lacquer
Doors and base panels	Fluted MDF with dark walnut veneer finish
Display shelves	10 mm tempered clear glass with polished edge
Lighting system	Integrated warm-white LED strip with aluminum channel
Door handles	Recessed vertical matte black metal pull handle
Back panel	5 mm matte gray MDF backboard

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Ambient display lighting	Warm white LED strip integrated under each shelf for item illumination
Mixed storage layout	Combination of open display shelves and right-side closed door cabinet
Wall-mount compatible installation	Designed for wall-mounted or floor-standing placement
Display zoning	Asymmetrical compartment layout for curated decor and collectibles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office backdrop	Serves as decorative storage behind executive desks for books and awards
Residential living room feature wall	Mounted as wall decor unit for artwork, collectibles and ambient lighting

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-WL-2400-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-WL-2400-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-WL-2400-LEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

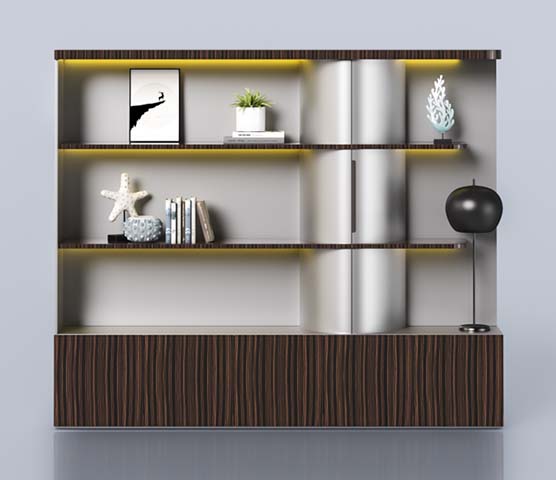

The DC-WL-2400-LED modern LED-lit display cabinet, an unbranded piece, balances refined visual design with functional storage to serve both residential and commercial settings. Its form features an asymmetrical compartment layout that creates curated display zones, paired with a fluted panel base that adds textured depth to its sleek silhouette. The mixed storage layout combines open display shelves with a right-side closed door cabinet, creating visual interest through contrasting open and closed surfaces while supporting organized storage of varied items. Constructed with durable, high-quality components, the cabinet’s carcass uses 18 mm E1-grade particle board finished in matte gray lacquer, with a 25 mm thick carcass panel for structural stability. Doors and base panels are crafted from fluted MDF with a dark walnut veneer finish, complemented by recessed vertical matte black metal pull handles that maintain the piece’s clean lines. Display shelves are made of 10 mm tempered clear glass with polished edges, each supported to hold a static load of 30 kg. The integrated lighting system consists of warm-white LED strips housed in aluminum channels, installed under each shelf to cast soft, even illumination on displayed items. The back panel is 5 mm matte gray MDF, and the door hardware includes hinges with a 165° opening angle, rated for 80000 cycles. The drawer slides, included in the closed storage section, support 45 kg per pair and are rated for 50000 cycles. The unit has a recommended total weight of 85 kg and operates on 24 V DC LED power. Practically, the cabinet supports both wall-mounted and floor-standing installation, with anti-tip fixing guidance requiring at least 2 wall fixing points for units over 1200 mm tall to ensure safety. The warm LED ambient lighting enhances the visibility of displayed items while adding a cozy, elevated atmosphere to any space. Suitable spaces include executive offices, where it functions as a decorative backdrop behind desks to store books and awards, and residential living rooms, where it mounts on feature walls to showcase artwork, collectibles, and ambient lighting. Procurement considerations note that each set ships in 3 cartons with a total gross weight of 100 kg and a total packaging volume of 0.65 m³, with individual carton dimensions of 2100 x 700 x 350 mm based on carcass split design. Assembly takes 40 minutes per set, and installers should verify wall structural capacity for wall-mounted placement to support the unit’s weight and stored items.

Modern LED-Lit Display Cabinet with Fluted Panel Base Specifications
