PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 1800 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	78 kg
Static load per adjustable shelf	30 kg
Top surface static load	60 kg
Total cabinet static storage load	180 kg
Door count	5 doors
Adjustable shelf count in glazed bay	3 shelves
Storage compartments	3 bays
Hinge durability rating	50,000 open/close cycles
Shelf support count per shelf	4 supports
Recommended wall-restraint pull resistance	500 N

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet case and doors	18 mm melamine-faced particleboard with visible light-oak vertical grain on doors and gray side panels
Display doors	5 mm tempered transparent glass set in light gray aluminum or PVC door frames
Internal shelves	18 mm melamine-faced board with edge banding and metal shelf supports
Lower and side doors	18 mm woodgrain melamine hinged doors with recessed rectangular pull/lock cutouts
Base plinth	Melamine-faced recessed plinth with protective lower edge
Hardware	Steel hinges, black lock inserts, shelf-support pins, and door buffers

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Storage layout	Central upper glazed bay provides open display storage while the right upper bay and three lower bays provide concealed document storage
Shelf adjustment	Three shelves use removable supports on side-panel hole rows, with 32 mm adjustment spacing recommended for binder-height changes
Door operation	All five doors are hinged swing doors; the 400 mm door width requires a 400 mm front clearance arc for full access
Locking	Central lower door includes a visible key lock; right doors show recessed pull/lock positions suitable for coordinated office keying

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office filing and display	Suitable for manager offices, reception back areas, and administrative rooms requiring books, binders, awards, and concealed archive storage
Procurement configuration	Use against a wall in medium-traffic office interiors; order keyed-alike locks and add wall anchors when installed in walkways or accessible public zones

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.9

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TC-WG5D-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TC-WG5D-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TC-WG5D-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

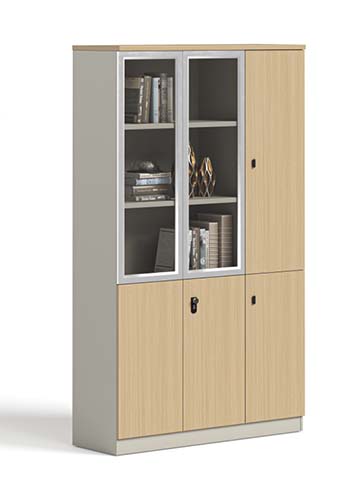

The Five-Door Tall Office Storage Cabinet with Glass Display Compartment, model TC-WG5D-1800, is an unbranded tall storage solution designed for settings that require both visible presentation and concealed filing. Its upright form combines a central upper glazed bay with solid-door storage, creating a structured three-bay layout suited to wall placement in professional interiors. Visually, the cabinet uses a light-oak woodgrain melamine finish on the doors with gray side panels, giving the case a balanced neutral appearance. The upper display section features transparent tempered-glass doors set in light gray aluminum or PVC frames, while the remaining hinged doors use woodgrain melamine with recessed rectangular pull and lock cutouts. A recessed melamine-faced plinth with a protective lower edge supports the cabinet and maintains a clean furniture profile. The case and doors are constructed from 18 mm melamine-faced particleboard, with specified carcass panel thickness of 25 mm, back panel thickness of 9 mm, door and drawer front thickness of 22 mm, and shelf thickness of 25 mm. Internal shelves are made from 18 mm melamine-faced board with edge banding and metal supports. Steel hinges, black lock inserts, shelf-support pins, and door buffers complete the hardware specification. Inside, the central upper glazed bay provides open display storage with three adjustable shelves, supported by removable pins on side-panel hole rows. A 32 mm adjustment spacing is recommended for accommodating binder-height changes. The right upper bay and three lower bays provide concealed document storage. All five doors are hinged swing doors, and the 400 mm door width calls for a 400 mm front clearance arc to allow full access. The central lower door includes a visible key lock, while the right doors have recessed pull and lock positions suitable for coordinated office keying. Rated storage capacity includes 30 kg static load per adjustable shelf, 60 kg on the top surface, and 180 kg total cabinet static storage load. The net weight is 78 kg. These capacities make the cabinet appropriate for books, binders, awards, reference materials, and archived documents rather than unusually heavy equipment. The design is well suited to manager offices, reception back areas, administrative rooms, and medium-traffic office interiors. It works particularly well where a wall-facing display and filing unit is needed in one coordinated piece. For procurement, buyers should plan for wall use, specify keyed-alike locks where uniform access is required, and add wall anchors when the cabinet is installed in walkways or accessible public zones. Delivery and installation planning should account for a multi-carton package and an assembly reference time of 40 minutes per set.

Five-Door Tall Office Storage Cabinet with Glass Display Compartment Specifications
