Name: Modern Chinese Style Entryway Display Cabinet with Integrated LED Lighting
Brand: XIANGSHI
SKU: 2L9ZX7

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 350 × 2200 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Top countertop static load capacity	50 kg
Unit net weight	85 kg
Recommended maximum distributed load (overall)	120 kg
LED light strip lifespan	30000 hours
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main cabinet body	Melamine-faced particleboard core, 16mm thickness
Decorative outer frame	PVC-wrapped MDF frame, light beige finish
Lower cabinet doors	Wood veneer MDF door panel, dark brown finish, recessed panel design
Upper decorative slats	Black powder-coated metal rectangular tubes
Back panel of display zone	Fabric-backed soft panel, light beige color
Lighting system	Warm white LED strip light, 3000K color temperature

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated display lighting	Top-mounted recessed LED strip provides downlighting for decorative items
Closed lower storage	Three swing doors conceal internal storage with one adjustable shelf per compartment
Open display area	Middle open compartment serves as decorative display zone for art and ornaments
Upper decorative partition	Top slatted section provides partial visual separation while maintaining airflow and light transmission

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	2280 x 1280 x 180 mm
Total gross weight	95 kg
Total CBM	0.52 m³
Assembly time (two persons)	120 minutes
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential entryway foyer	Serves as entry partition and decorative display unit for home entrance areas
Hotel and office lobby	Suitable as decorative accent cabinet in reception lobbies and waiting areas

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Safety of furniture	EN 14749:2016, applicable to domestic storage furniture
Formaldehyde emission	EN 13986:2004+A1:2015, recommended E1 class

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Wood-based panel formaldehyde emission	GB/T 39600recommended E1 grade
Cabinet structural strength	GB/T 3324applicable to wooden cabinet furniture

Standardized tender description text

This product must meet the following technical requirements:
1. Wood-based panel formaldehyde emission: GB/T 39600recommended E1 grade;
2. Cabinet structural strength: GB/T 3324applicable to wooden cabinet furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EC-DISP-1200-2200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EC-DISP-1200-2200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EC-DISP-1200-2200Open Export Tool

Quick Actions

Post an RFQ

Product Description

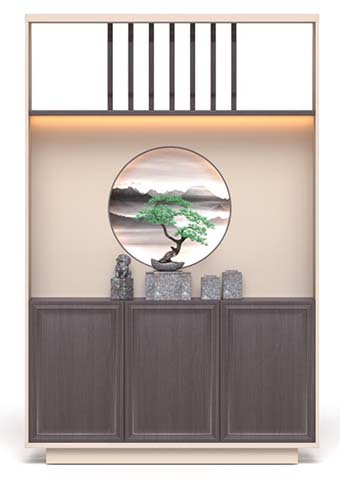

The XIANGSHI Modern Chinese Style Entryway Display Cabinet with Integrated LED Lighting, model EC-DISP-2200is a freestanding furniture piece designed to blend decorative appeal with functional storage for entryway and lobby settings. Its visual form balances modern clean lines with traditional Chinese-inspired detailing, structured across distinct vertical zones that create a layered, elegant silhouette. The layout features a top slatted decorative section, a middle open display zone, a closed lower storage compartment, and a flat top countertop, all framed by a light beige outer border that contrasts with dark brown lower door panels and black upper slats for a sophisticated, warm aesthetic. Constructed with a melamine-faced particleboard core for the main cabinet body, the unit is reinforced by a 25 mm thick carcass, 25 mm thick shelves, 22 mm thick door and drawer fronts, and a 9 mm back panel for structural stability. The decorative outer frame uses PVC-wrapped MDF with a light beige finish, while lower cabinet doors feature wood veneer MDF with a dark brown recessed panel design. Upper decorative slats are made from black powder-coated metal rectangular tubes, and the display zone back panel is a light beige fabric-backed soft panel that adds texture and depth. The integrated warm white 3000K LED strip light is recessed at the top of the display area, with a rated lifespan of 30000 hours. Practical functions are tailored to everyday use: the top-mounted LED strip provides focused downlighting to highlight decorative items placed in the middle open display zone, which is suited for art pieces and ornaments. The lower closed storage section includes three swing doors, each concealing a compartment with one adjustable shelf to accommodate items of varying heights. The top slatted section delivers partial visual separation while preserving airflow and light transmission, and the flat top countertop supports static loads up to 50 kg. Shelves hold a distributed load of 30 kg per shelf, drawer slides support 45 kg per pair with a 50000-cycle lifespan, and hinges open to 165 degrees with an 80000-cycle rating. The overall recommended maximum distributed load is 120 kg, and the unit has a net weight of 85 kg. Suitable spaces include residential entryway foyers, where it functions as both an entry partition and a decorative display unit, as well as hotel and office lobbies, where it serves as a decorative accent cabinet in reception and waiting areas. For procurement, note that the set ships in 2 cartons with main carton dimensions of 2280 x 1280 x 180 mm, a total gross weight of 95 kg, and a total volume of 0.52 cubic meters. Assembly requires two people and takes 120 minutes total to complete.
