Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Carcass Panel Thickness | 25 mm | |
|---|---|---|
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity | 200 kg | |
|---|---|---|
| Total internal storage volume | 1.12 cbm | |
| Number of adjustable shelf positions | 8 | |
| Anticorrosion coating durability | 500 hours | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass and doors | 18mm particleboard with light oak woodgrain melamine finish | |
|---|---|---|
| Internal back panels and dividers | 9mm MDF with matte white melamine finish | |
| Edge banding | 1mm PVC edge banding matching door and frame colors | |
| Sliding door track hardware | Cold rolled steel with epoxy powder coating | |
| Door hinges (lower section) | Concealed soft-close steel hinges | |
| Shelf support hardware | Zinc-plated steel shelf pins |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

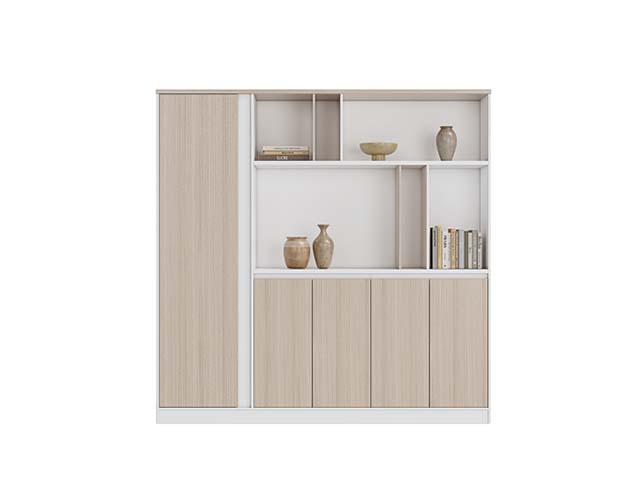

| Left side access | Full-height sliding woodgrain door that moves horizontally to reveal tall enclosed storage | |
|---|---|---|
| Upper storage layout | Two-tier open shelving with fixed dividers creating multiple sized compartments for books and decorative display | |
| Lower storage layout | Four equal-width hinged doors enclosing fully adjustable shelving for concealed document and supply storage | |
| Cable management provision | Pre-punched rear cable access ports in open shelf sections |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office background storage | Fits behind executive desks to store documents and display curated decorative items | |
|---|---|---|
| Open plan office filing zone | Provides mixed open and closed storage for team access to supplies and reference materials |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
