PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Shelf uniform static load rating	50 kg per shelf
Overall cabinet static load rating	200 kg
Storage volume (gross internal)	0.86 m³
Lock security class	Office grade
Warranty period reference	5 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Carcass and solid doors	Wood-based composite panel with walnut woodgrain melamine finish
Upper door glazing	Tempered clear glass set in dark metal frames
Shelves	Matching wood-based composite panels with melamine surface
Lock and hinges	Zinc alloy central lock with steel barrel hinges
Base plinth	Anodized aluminum or silver-painted steel kick plate
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Display and closed storage split	Upper glass section for display, lower solid section for confidential files
Locking function	Central mechanical lock secures lower solid door pair
Shelf adjustability	Adjustable shelves in glass section allow reconfiguration for binders or decor
Door operation	Swing doors with concealed hinges for full 110° opening

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office and manager rooms	Combines display space for awards with locked file storage
Open-plan workstation zones and meeting areas	Provides shared reference filing and decorative display near work areas

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14073-2:2004	Applicable for safety and stability of office storage furniture
EN 16113:2012	Applicable for strength and durability of office cabinet shelves

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.9-2020	Applicable for performance of storage and filing furniture systems

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden office furniture
GB 18584-2001	Applicable for formaldehyde emission limits of wood-based panel furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden office furniture;
2. GB 18584-2001: Applicable for formaldehyde emission limits of wood-based panel furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FC-WD-3D-GL-1200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FC-WD-3D-GL-1200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FC-WD-3D-GL-1200Open Export Tool

Quick Actions

Post an RFQ

Product Description

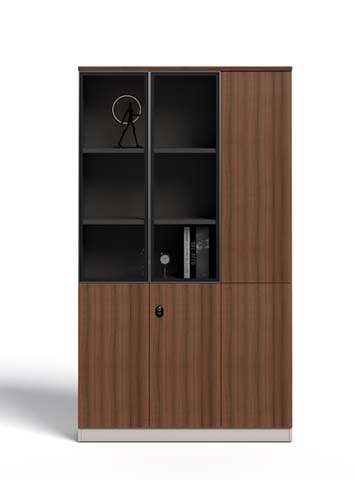

This walnut-finish 3-door office file cabinet with a glass upper section presents a modern mixed-door design that balances visual openness and functional privacy. Its layout splits into an upper glass-fronted segment and a lower solid-door segment, creating a cohesive silhouette suited to professional work environments. The walnut woodgrain finish across solid surfaces pairs with dark metal-framed clear glass and a silver-toned base, delivering a polished, understated aesthetic. For construction and materials, the cabinet features a wood-based composite panel carcass with a melamine walnut woodgrain coating, supported by a silver metal base plinth made of anodized aluminum or silver-painted steel. Upper doors incorporate tempered clear glass set in dark metal frames, while lower solid doors match the carcass material and finish. All hardware, including the central lock and hinges, is constructed from zinc alloy and steel, with 2 mm edge banding applied to panel edges for durability. Panel thicknesses are standardized for structural stability, with 25 mm carcass and shelf panels, 22 mm door fronts, and 9 mm back panels. Practically, the cabinet serves dual storage purposes: the upper glass section holds adjustable shelves that can be reconfigured to accommodate binders, decorative items, or display pieces, while the lower solid section provides secure, confidential file storage secured by a central mechanical lock. Swing doors with concealed hinges open fully to 110°, allowing unobstructed access to interior spaces. The cabinet delivers 0.86 m³ of gross internal storage volume, with each shelf supporting a uniform static load of 50 kg and a distributed load of 30 kg, while the overall unit handles a static load of 200 kg. Drawer slides are rated for 45 kg per pair and tested for 50000 cycles, and the lock meets office-grade security standards. A 5-year warranty reference is provided for long-term reliability. This file cabinet fits seamlessly into executive offices and manager rooms, where it can display awards and professional accolades while securing sensitive documents. It also works well in open-plan workstation zones and meeting areas, offering shared reference filing space alongside decorative display capacity near active work zones. For procurement planning, the cabinet ships in 2 cartons per set with a total gross weight of 100 kg and a total packaging volume of 0.65 m³, with individual carton dimensions aligned to the carcass split design. Assembly takes 40 minutes per set, requiring standard tools for straightforward on-site setup.

Walnut-finish 3-door office file cabinet with glass upper section Specifications
