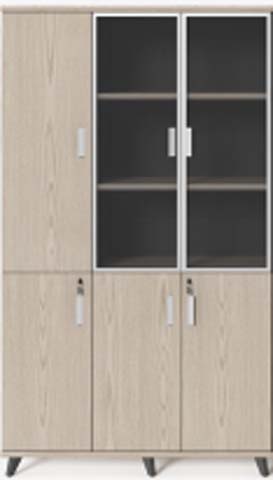

Product supplierLight Oak 3-Bay Lockable Office Storage Cabinet with Upper Glass Doors, 18mm MDF core with light oak melamine laminate finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 450 × 2200 mm | |
|---|---|---|
| Support foot height | 70 mm | |
| Door pull handle length | 120 mm | |
| Upper glass door section height | 1050 mm | |
| Lower solid door section height | 1080 mm | |
| Internal shelf spacing (upper glass section) | 350 mm | |
| Left single bay width | 400 mm | |
| Right double bay width | 800 mm | |
| Carcass panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Tempered glass door panel thickness | 5 mm | |
| Door hinge opening angle | 110 degrees | |
| Edge banding thickness | 2 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static load per adjustable shelf | 40 kg | |
|---|---|---|
| Total cabinet static load capacity | 240 kg | |
| Unit net weight | 65 kg | |
| Recommended maximum file storage capacity | 180 kg | |
| Door hinge cycle rating | 80000 cycles | |
| Drawer slide static load rating | 25 kg | |
| Surface scratch resistance rating | 2000 cycles | |
| Keyed lock cycle rating | 10000 cycles | |
| Commercial use warranty period | 3 years | |
| Shelf Distributed Load | 30 kg/shelf |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass panels | 18mm MDF core with light oak melamine laminate finish | |
|---|---|---|
| Upper door panels | 5mm tinted tempered safety glass framed with silver aluminum trim | |
| Lower door panels | 18mm MDF core with matching light oak melamine laminate finish | |
| Back panel | 9mm hardboard with matching light oak finish | |
| Internal shelves | 18mm MDF with matching laminate finish, adjustable on metal pegs | |
| Door hardware | Silver chrome-plated steel vertical pull handles, steel keyed cam locks | |
| Support feet | Black angled injection-molded plastic feet with steel insert mounts | |
| Door hinges | Cold-rolled steel concealed Euro-style hinges with nickel plating | |
| Edge banding | 2mm PVC edge banding matching light oak finish on all exposed panel edges | |
| Lock cylinders | Zinc alloy keyed cam locks with 2 keys per lock, fitted to all lower doors | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Lower compartment locking | Keyed cam locks secure all three lower solid door compartments for confidential document storage | |
|---|---|---|
| Upper display storage | Framed tinted glass doors enclose 3 adjustable shelves for open visible document/object storage | |
| Shelf adjustability | All internal shelves support 32mm pitch height adjustment to accommodate varying storage item sizes | |
| Door operation | All doors swing outward on concealed hinges to 110 degrees for full interior access without blocking adjacent walkways | |
| Anti-tip safety | Wall anchoring hardware is provided to secure tall unit to wall and prevent tipping during use | |
| Leveling function | Fixed angled feet provide 70mm floor clearance for easy floor cleaning beneath the unit | |
| Storage compartment division | Left bay provides two stacked full-height enclosed compartments, right double bay provides split upper glass/lower solid storage | |
| Surface maintenance | Melamine laminate surface resists common office stains and wipes clean with standard non-abrasive cleaning products | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office zones | Positioned along partition walls for centralized document and supply storage for work teams | |
|---|---|---|
| Private executive offices | Combines display area for awards/books and lockable storage for confidential files behind solid doors | |
| Administrative reception areas | Provides visible display for company materials and locked storage for administrative supplies | |
| Small business workspaces | Offers mixed open and concealed storage in a compact 1200mm width footprint suitable for tight office layouts | |
| Education staff rooms | Stores teaching materials, student records, and office supplies with lockable security for sensitive documents | |
| Color option availability | Offered in light oak as standard, with optional walnut, white, and gray finishes for matching existing office furniture schemes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office furniture - Storage furniture - Part 2: Safety requirements, applicable to structural safety verification | |
|---|---|---|
| EN 14073-3:2004 | Office furniture - Storage furniture - Part 3: Test methods for stability and strength, applicable to load testing | |
| EN 12150-1:2015 | Glass in building - Thermally toughened soda lime silicate safety glass, applicable to glass door panel verification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage Furniture - Standard for safety, durability, and structural performance of office storage units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural and finish quality verification | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to wood-based panel performance verification | |
| GB 18584-2001 | Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture, applicable to emission testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality verification; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable to wood-based panel performance verification; 3. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture, applicable to emission testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
