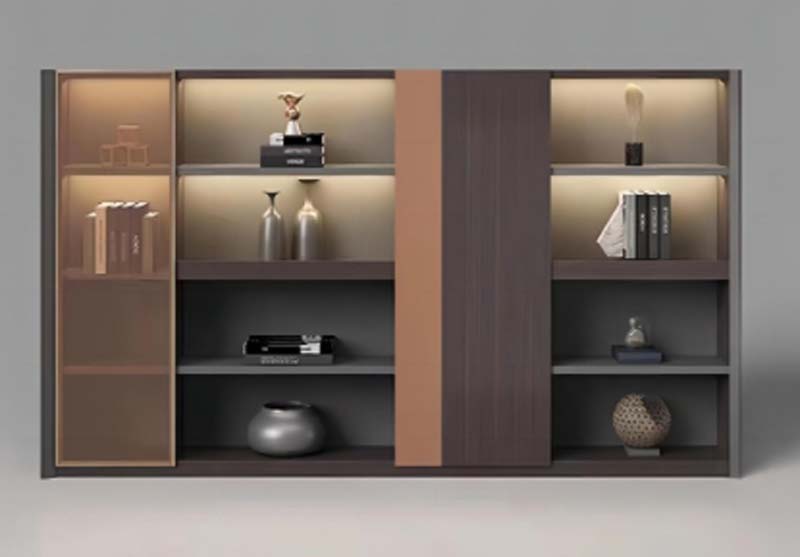

Product supplierModern Freestanding Office Display Storage Cabinet with Integrated LED Lighting, E0 grade engineered MDF core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 2000 mm | |
|---|---|---|
| Left glass door section width | 450 mm | |
| Central sliding solid door width | 600 mm | |
| Each open display shelf column width | 675 mm | |
| Open display shelf vertical tier spacing | 350 mm | |
| Glass door internal shelf count | 4 tiers | |
| Open display shelf count per side column | 4 tiers | |
| Hidden storage compartment height | 1000 mm | |
| Carcass panel thickness | 18 mm | |
| Tinted glass door thickness | 8 mm | |
| Shelf panel thickness | 25 mm | |
| Base plinth height | 50 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per shelf static load capacity | 25 kg | |
|---|---|---|
| LED strip power consumption per meter | 12 W | |
| Unit net weight | 120 kg | |
| Door slide cycle rating | 50000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Carcass construction | E0 grade engineered MDF core | |
|---|---|---|
| External surface finish | Dark wood grain melamine laminate | |
| Left door panel | 8mm tinted semi-transparent tempered glass | |
| Central sliding door panel | 18mm engineered wood with two-tone finish | |
| Shelf panels | 25mm melamine-faced engineered wood | |
| Back panel | 9mm engineered hardboard | |
| Edge banding | 1mm PVC matching wood finish | |
| Hardware components | Powder-coated steel sliding tracks and hinges | |
| Integrated lighting | Low-voltage 3000K warm white LED strip lights | |
| Anti-tip fitting | Steel wall anchor bracket | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Central sliding door operation | Horizontal sliding solid panel covers lower open shelves | |
|---|---|---|
| Glass door access | Hinged tinted glass door provides dust-proof access to left section | |
| LED lighting control | Touch-activated switch on cabinet side controls upper shelf lights | |
| Shelf adjustability | Open shelf positions support adjustable shelf heights via pre-drilled holes | |
| Storage layout | Mixed open display, glass-front display, and hidden closed storage | |
| Cable management | Concealed channel at rear of cabinet routes LED power cords | |
| Levelling function | Adjustable levelling feet under base compensate for uneven floors | |
| Door locking provision | Optional key lock available for glass and sliding doors | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office back wall | Placed behind executive desk to display awards, books and decorative items | |
|---|---|---|
| Meeting room display | Used to store meeting materials and showcase corporate credentials | |
| Manager private office | Combines document storage with curated display of personal decor | |
| Reception area backdrop | Positioned behind reception desk to display brand collateral and decor | |
| Home office study | Used for book storage and display of collectibles | |
| Recommended configuration | Pair with matching executive desk and office chair for coordinated office suite |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture | |
|---|---|---|
| EN 62471:2008 | Photobiological safety of LED lighting products for display use | |
| EN 12150-1:2015 | Thermally toughened soda lime silicate safety glass for door panels |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for carcass structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, E0 grade requirement for indoor use | |
| GB 7000.201-2008 | Safety requirements for fixed general purpose luminaires, applicable to integrated LED strips |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for carcass structural performance; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E0 grade requirement for indoor use; 3. GB 7000.201-2008: Safety requirements for fixed general purpose luminaires, applicable to integrated LED strips; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
