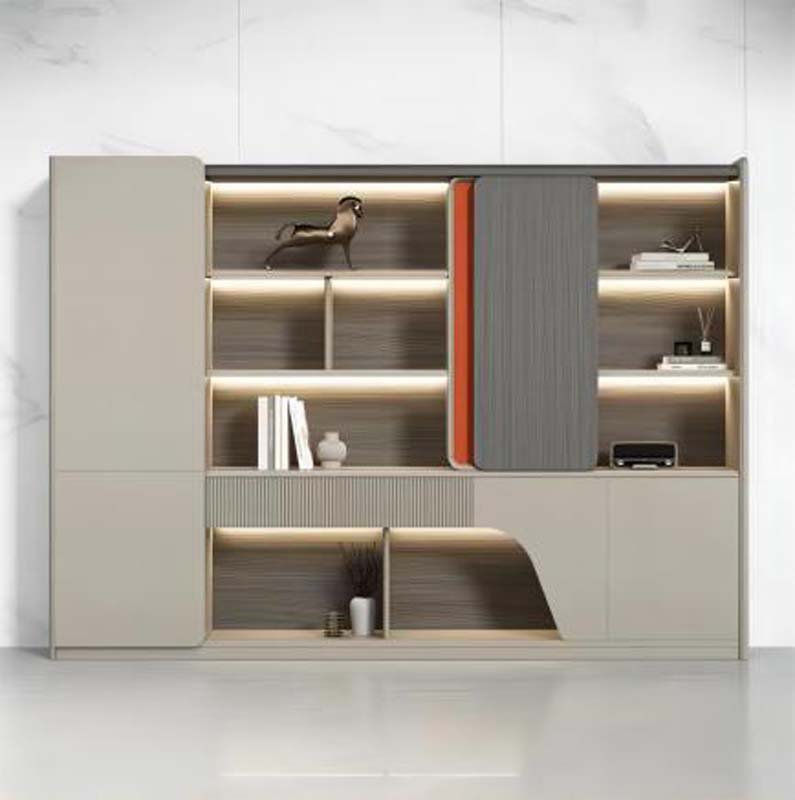

Product supplierModern Executive Office Backdrop Display Storage Cabinet with LED Lighting, 18mm thick melamine-faced particleboard core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 400 × 2200 mm | |
|---|---|---|
| open shelf depth | 380 mm | |
| open shelf vertical clearance | 350 mm | |
| tall left closed cabinet width | 800 mm | |
| fluted sliding panel width | 800 mm | |
| lower right closed cabinet door width | 600 mm | |
| asymmetrical curved open shelf height | 400 mm | |
| top trim thickness | 30 mm | |
| base plinth height | 50 mm | |
| edge band radius | 15 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| unit net weight | 280 kg | |
|---|---|---|
| fixed shelf static load capacity | 40 kg | |
| recommended maximum uniform top load | 60 kg | |
| melamine surface abrasion resistance | 2000 cycles | |
| PVC edge band heat resistance | 110 °C | |
| recommended service life | 10 years | |
| static anti-tip load rating | 150 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| main carcass panels | 18mm thick melamine-faced particleboard core | |
|---|---|---|
| fluted decorative panels | 18mm MDF with vertical groove texture finish | |
| back panel | 9mm thick melamine-covered hardboard | |
| shelf surfaces | 18mm dark wood-grain melamine laminate | |
| accent trim strip | Painted MDF with matte orange finish | |
| outer cabinet doors | 18mm light warm beige matte lacquered MDF | |
| top edge trim | 18mm dark grey matte melamine panel | |
| edge banding | 2mm thick PVC edging on all exposed panel edges | |
| under-shelf lighting | DC 12V LED strip lights with warm white 3000K output | |
| door hinges (if fitted) | Cold-rolled steel soft-close hydraulic hinges | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| under-shelf LED illumination | Recessed warm white LED strips under each open shelf, activated by touch switch | |
|---|---|---|
| sliding fluted panel access | Vertically grooved middle panel slides horizontally to reveal covered middle storage | |
| closed cabinet storage | Press-to-open door mechanism on left tall and lower right cabinets for concealed file and item storage | |
| asymmetrical open display | Curved cutout lower open shelf for oversized decorative display items | |
| fixed shelf layout | Pre-positioned open shelves at multiple heights for books, decor and office artifacts | |
| anti-tip wall anchoring | Included metal anti-tip brackets secure unit to wall to prevent forward tipping | |
| cable management access | Rear knockout holes behind shelves for LED power and small device charging cords | |
| door hinge open angle | 110 degrees opening arc for hinged cabinet doors for unobstructed interior access | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| executive office backdrop | Positioned against rear wall behind executive desk for display and concealed document storage | |
|---|---|---|
| corporate reception display | Used in reception areas to display company awards, decor and informational materials | |
| private study storage | Installed in home or corporate study rooms for book storage and decorative display | |
| conference room storage | Placed along conference room walls for supply storage and decorative object display | |
| recommended matching furniture | Pair with same-series executive desk, visitor chairs and office sofa for cohesive workspace styling | |
| installation requirement | Requires wall mounting for anti-tip safety, installed flat on level indoor hard flooring |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 312:2010 | Particleboard performance requirements, applicable for structural panel load verification | |
|---|---|---|
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, applicable for anti-tip and load testing | |
| EN 13986:2004+A1:2015 | Wood-based panels for construction, formaldehyde emission class E1 requirement ≤0.124mg/m³ |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish quality inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, requirement ≤0.124mg/m³ for E1 grade | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core panel structural performance verification |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish quality inspection; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, requirement ≤0.124mg/m³ for E1 grade; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable for core panel structural performance verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
