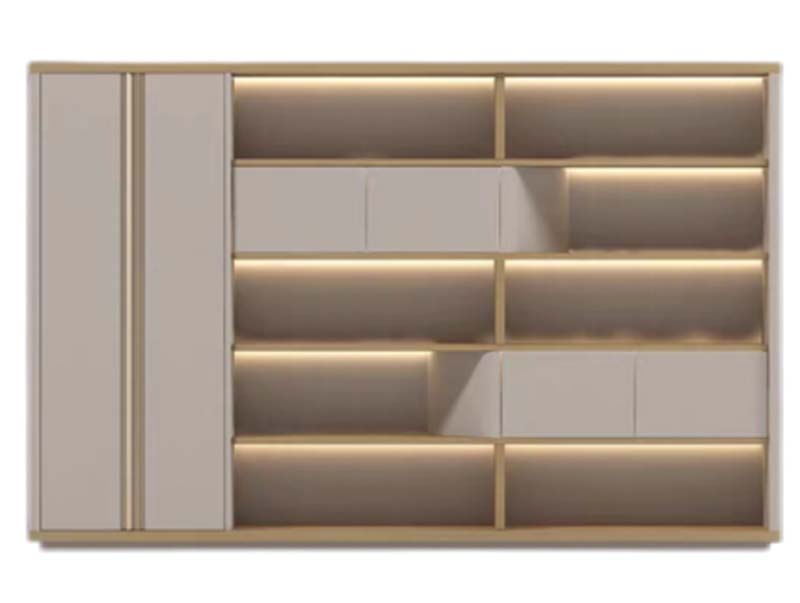

Product supplierModern Two-Tone LED Lighted Asymmetrical Display Storage Cabinet, E0-grade engineered MDF core
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2000 × 400 × 2000 mm | |
|---|---|---|
| Left closed cabinet section width | 660 mm | |
| Right display section width | 1340 mm | |
| Per-tier shelf internal height | 360 mm | |
| Single open shelf bay width | 670 mm | |
| Open shelf usable depth | 380 mm | |
| Closed door panel thickness | 18 mm | |
| Shelf board thickness | 25 mm | |
| Carcass side panel thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Gold accent trim width between left doors | 15 mm | |
| LED strip recessed channel depth | 10 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per open shelf static load capacity | 23 kg | |
|---|---|---|
| LED lighting operational lifespan | 50000 hours | |
| Door hinge cycle rating | 80000 cycles | |
| Anti-tip kit static pull resistance | 500 N | |
| Edge banding peel resistance | 15 N/25mm | |
| Finish abrasion resistance | 2000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Structural carcass core | E0-grade engineered MDF core | |
|---|---|---|
| Outer frame and shelf dividers | Light oak wood veneer with matte clear finish | |
| Closed door and panel surfaces | Matte warm taupe thermofoil laminate | |
| Edge banding | 1mm thick matching PUR hot-melt edge banding | |
| Door hardware | Matte gold anodized aluminum trim, push-to-open rebound hinges | |
| LED lighting components | 12V low-voltage warm white 3000K LED strip lights, recessed aluminum channels | |
| Back panel | 9mm thick hardboard with matte dark taupe finish | |
| Leveling feet | Reinforced nylon adjustable leveling feet | |
| Anti-tip hardware | Zinc-plated steel wall anchor brackets and straps | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Left full-height double-door storage | Two push-to-open handleless doors accessing 4 adjustable internal shelves | |
|---|---|---|
| Integrated display lighting | Warm white LED strips recessed under each open shelf lip, hardwired to wall switch | |
| Asymmetrical mixed storage layout | Alternating open display bays and closed matte panel compartments across 5 right tiers | |
| Adjustable internal shelving in closed section | Shelf supports on 32mm grid allowing height adjustment in closed left cabinet | |
| Fixed open display shelves | Right section open shelves fixed at pre-set heights with integrated lighting channels | |
| Concealed cable routing for lighting | Internal wire channels along cabinet frame hiding LED power wiring | |
| Floor leveling adjustment | 4 adjustable nylon feet at base to compensate for uneven floor surfaces | |
| Wall anchor anti-tip protection | Two steel anchor straps securing top rear of unit to wall studs | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room display wall | Positioned against main living room wall for displaying decor, books and collectibles with integrated accent lighting | |
|---|---|---|
| Home office storage | Used for storing office supplies, reference books and displaying awards with concealed clutter storage | |
| Dining room sideboard display | Placed in dining areas to store tableware and display serving pieces and decorative objects | |
| Entryway feature cabinet | Installed in residential foyers to store entry items and display curated decorative pieces | |
| Residential study bookcase | Used for book storage and display in home studies, with closed storage for archived materials | |
| Luxury retail display fixture | Utilized in boutique retail settings for displaying premium products with integrated lighting |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture, applicable for stability and load testing | |
|---|---|---|
| EN 312:2010 | Particleboard performance specifications for furniture structural applications | |
| EN 62471:2008 | Photobiological safety of LED lighting products, applicable for integrated strip lights | |
| EN 12521:2015 | Durability requirements for domestic storage furniture hardware and structural components |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finish performance testing | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E0 grade required for panel substrates | |
| GB/T 4897.3-2015 | Particleboard specifications for furniture structural use, applicable for core panel performance | |
| GB 7000.201-2008 | Safety requirements for fixed general purpose luminaires, applicable for integrated LED lighting |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural and finish performance testing; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E0 grade required for panel substrates; 3. GB/T 4897.3-2015: Particleboard specifications for furniture structural use, applicable for core panel performance; 4. GB 7000.201-2008: Safety requirements for fixed general purpose luminaires, applicable for integrated LED lighting; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
