Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 3200 x 400 x 2000 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per open shelf static load capacity | 25 kg | |
|---|---|---|
| Bottom drawer unit static load per drawer | 40 kg | |
| Total cabinet unit weight | 190 kg | |
| LED strip operating lifespan | 30000 hours | |
| Total internal storage volume | 1.12 m³ | |
| Recommended maximum wall load for mounting | 120 kg per linear meter | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| Outer frame and dividers | 1.2mm thick powder-coated dark gray steel | |
|---|---|---|
| Open shelf back and side panels | 18mm thick dark gray melamine-faced particle board | |
| Closed drawer/door front panels | 18mm thick engineered wood with dark embossed wood veneer | |
| Internal shelf boards | 25mm thick melamine-faced MDF | |
| Integrated lighting strips | 24V warm white 3000K SMD LED strips in aluminum channels | |
| Drawer hardware | Full-extension soft-close ball-bearing drawer slides | |
| Bottom kickplate | 2mm thick brushed stainless steel | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Integrated display lighting | Recessed LED strips cast even warm light across front of all open shelves, dimmable to 3 brightness levels | |
|---|---|---|
| Closed storage compartments | Bottom full-width and upper right drawers operate on soft-close slides, no exposed handles for flush minimalist aesthetic | |

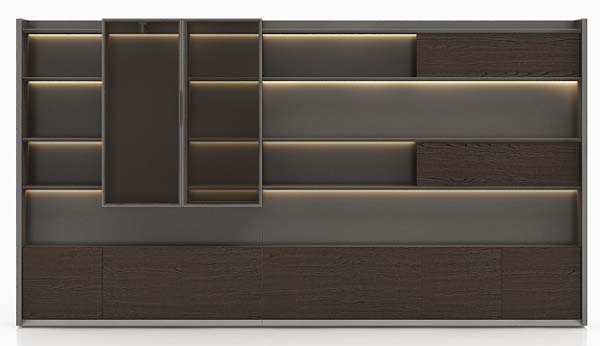

| Modular compartment layout | Left section with 3 small tiers plus tall vertical niche, center 4 small tiers, right section with mixed open shelves and drawers, no adjustable shelves | |
| Wall anchoring provision | Pre-drilled mounting points on rear panel to secure cabinet to load-bearing walls for anti-tip safety | |
| Cable management access | Rear cutouts behind open and closed compartments allow hidden routing of power cables for LED lights and displayed electronic devices | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office backdrop | Installed behind a managing director desk to display awards, books and decorative items while concealing office supplies | |
|---|---|---|
| High-end residential living room | Used as a media and display wall to hold decor, media equipment and concealed household items | |
| Luxury retail display | Installed in boutique retail environments to showcase premium products with integrated accent lighting | |
| Modern study room | Used to store books, documents and personal collections with organized compartmentalization |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and structural performance requirements for domestic and non-domestic storage furniture | |
|---|---|---|
| EN 62471:2008 | Photobiological safety standard for integrated LED lighting components in furniture |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.9 Storage Units |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for panel structural integrity and finish quality checks | |
|---|---|---|
| GB/T 4897.3-2003 | Particle board for furniture use, applicable for verifying substrate panel performance specifications | |
| GB 7000.204-2008 | Safety requirements for built-in LED lighting fixtures used in furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for panel structural integrity and finish quality checks; 2. GB/T 4897.3-2003: Particle board for furniture use, applicable for verifying substrate panel performance specifications; 3. GB 7000.204-2008: Safety requirements for built-in LED lighting fixtures used in furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
