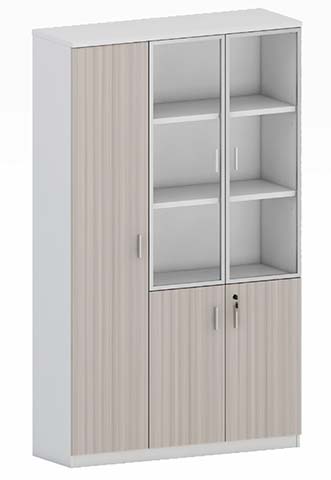

Light Wood Grain Floor-Standing Office Display Filing Cabinet With Lock (model OFC-GLS1850-5DR) is listed under Panel-type Filing Cabinet, with overall dimensions of 1200 × 450 × 2050 mm and main material of Particle‑board (PB). Load capacity: 30 kg. Certifications: floor-standing,mixed,glass/solid,doors,key-locked,storage,wood,grain,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall dimensions | 1200 x 450 x 2050 mm | |
|---|---|---|
| left full-height solid door width | 400 mm | |
| upper glass door section height | 1350 mm | |
| lower solid door section height | 700 mm | |
| internal shelf count (upper glass section) | 3 per glass compartment | |
| shelf spacing (upper display section) | 340 mm | |
| internal shelf count (lower solid section) | 1 adjustable shelf per lower compartment | |
| plinth base height | 50 mm | |
| vertical pull handle length | 120 mm | |
| glass door thickness | 5 mm | |
| body panel thickness | 1.4 mm | |
| edge band thickness | 1 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| per shelf static load capacity | 30 kg | |
|---|---|---|
| hinge cycle rating | 50000 open/close cycles | |
| drawer/slide load rating (if applicable) | 30 kg per shelf slide | |
| recommended maximum file storage weight | 200 kg | |
| surface scratch resistance | Grade 2 (500 cycles no visible wear) | |
| product net weight | 75 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| cabinet carcass | Cold-rolled steel with light vertical wood grain transfer finish | |
|---|---|---|
| upper display doors | 5mm clear tempered glass with silver metal frame | |
| solid doors | Cold-rolled steel with matching light wood grain finish, same as carcass | |
| door handles | Brushed aluminum alloy vertical pull handles, 120mm length | |
| internal shelves | 1.0mm thick cold-rolled steel, powder-coated light gray | |
| lock mechanism | Keyed cam lock for right lower solid door, includes 2 keys |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| door operation | Hinged swing doors open 110 degrees outward for full shelf access | |
|---|---|---|
| storage locking | Key lock secures lower right compartment, matched lock available for all doors | |
| shelf adjustability | 3 upper glass shelves fixed, lower shelves adjustable on 32mm pitch holes | |
| anti-tip protection | Includes 2 wall anchor brackets to prevent forward tipping when loaded |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| office document storage | Suitable for open offices and admin areas to store files, books and supplies | |
|---|---|---|
| display storage use | Upper glass sections provide visible display of awards, reference materials or samples |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Applicable to office storage furniture, safety and strength requirements | |
|---|---|---|
| EN 14074:2004 | Applicable to office storage furniture, test methods for strength and durability |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Applicable to storage cabinets, structural performance and durability test standards |
|---|
Standards applicable to China-market projects
| GB/T 13668-2015 | Applicable to steel office filing cabinets, specifies structural and load requirements | |
|---|---|---|
| GB/T 3324-2017 | Applicable to general wooden office furniture, dimensional and finish requirements | |
| GB 18584-2001 | Applicable to formaldehyde emission limits for wood-based furniture materials |
This product must meet the following technical requirements: 1. GB/T 13668-2015: Applicable to steel office filing cabinets, specifies structural and load requirements; 2. GB/T 3324-2017: Applicable to general wooden office furniture, dimensional and finish requirements; 3. GB 18584-2001: Applicable to formaldehyde emission limits for wood-based furniture materials; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
