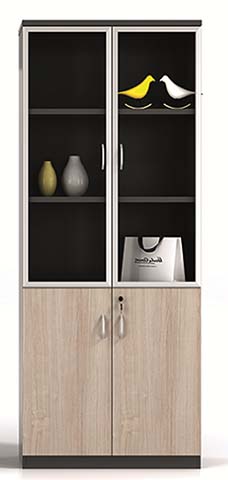

Lockable Split-Zone Office Display Storage Cabinet (model ODSC-LW22-900) is listed under Panel-type Filing Cabinet, with overall dimensions of 900 × 450 × 2050 mm and main material of Particle‑board (PB). Load capacity: 40 kg. Certifications: two-tone,finish,lockable,storage,glass,upper,doors,solid,lower,floor-standing. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 900 x 450 x 2050 mm | |
|---|---|---|
| Upper glass door zone height | 1350 mm | |
| Lower solid door zone height | 700 mm | |
| Upper zone shelf count | 3 | |
| Upper shelf vertical clearance | 420 mm | |
| Lower zone internal shelf count | 1 | |
| Lower zone shelf vertical clearance | 320 mm | |
| Glass door panel thickness | 5 mm | |
| Carcass panel thickness | 18 mm | |
| Door pull handle length | 120 mm | |
| Base plinth height | 50 mm | |
| Top trim thickness | 30 mm | |
| Single door width | 440 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Individual shelf static load capacity | 40 kg | |
|---|---|---|
| Door hinge cycle rating | 80000 open/close cycles | |
| Drawer slide load rating (if equipped) | 25 kg | |
| Wall anti-tip anchor load rating | 50 kg pull force | |
| Finish abrasion resistance | 2000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Cabinet carcass | 18mm particleboard core with light oak melamine laminate | |
|---|---|---|
| Upper door panels | 5mm clear tempered safety glass framed in silver aluminum | |
| Back panel | 3mm hardboard with matte black finish | |
| Hardware | Brushed zinc alloy vertical pull handles, steel keyed cam lock | |
| Trim components | Matte black PVC edge banding and plinth trim | |
| Edge banding | 1mm thick PVC matching woodgrain and black finishes |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Door operation | Hinged swing doors open 110 degrees outward for full internal access | |
|---|---|---|
| Locking mechanism | Keyed cam lock on right lower door secures both lower doors via internal astragal | |
| Shelf adjustability | Upper and lower shelves support 50mm increment height adjustment via shelf pins | |
| Anti-tip protection | Included wall anchor bracket secures cabinet to wall to prevent forward tipping |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation zones | Placed beside workstations for open storage of reference materials and locked storage of supplies | |
|---|---|---|
| Reception and waiting areas | Used to display corporate awards, decorative items and store reception supplies |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for tip-over and strength validation | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage units safety requirements, applicable for glass and hardware checks |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard, applicable for shelf load and durability testing |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural integrity checks | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable for core board performance verification | |
| GB 15763.2-2005 | Tempered safety glass for building use, applicable for upper door glass safety checks |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for structural integrity checks; 2. GB/T 4897.3-2003: Particleboard for furniture use, applicable for core board performance verification; 3. GB 15763.2-2005: Tempered safety glass for building use, applicable for upper door glass safety checks; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
